LS Swap, CS130D To CS130 Alternator Wiring?


Post ReplyPost New Topic
< Prev Topic Next Topic >
y5mgisi
Member - Posts: 8
Member spacespace
Joined: September 13, 2021
Location: Oregon, United States
Posted: November 08, 2023 at 6:40 PM / IP Logged Link to Post Post Reply Quote y5mgisi
Doing an LS swap, But using an aftermarket front accessory kit. The LS uses a CS130D Alternator. The aftermarket kit uses a CS130 alternator. Obviously the plug is different. The kit instructions state that no plug is needed and that it can be used as a "1 wire". However, I now have an unused alternator plug in the LS harness.
What i would like to do is swap the plug on the LS harness To the CS130 plug. I've been looking at wiring diagrams, but still cant make heads or tails on if the plug swap would actually even work. If anyone has any idea if the plugs can be swapped and what pin should go where on it, would be super helpful. Thank you!

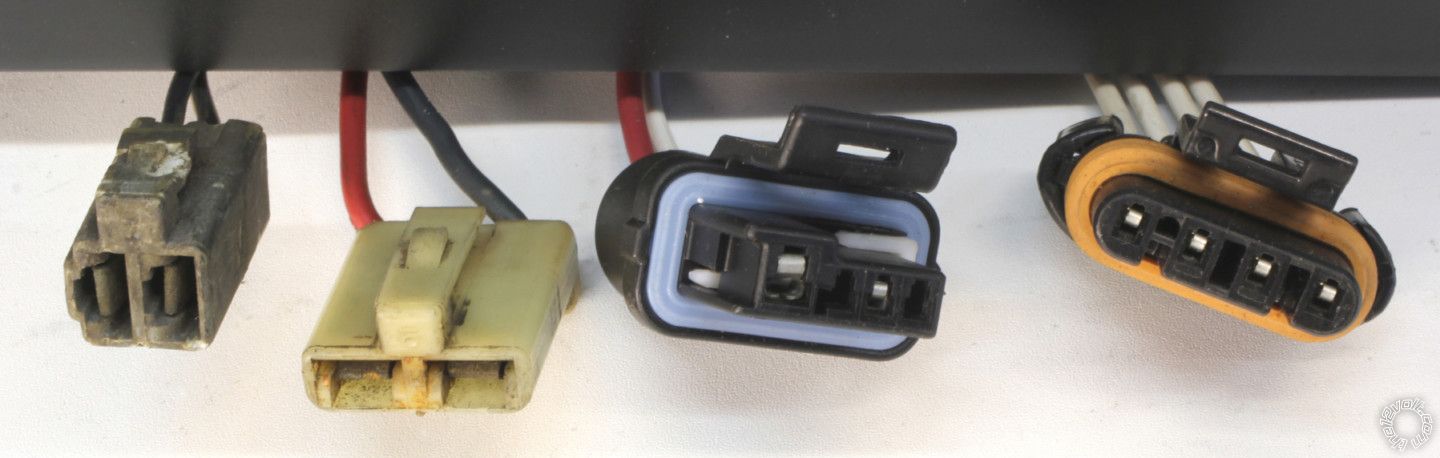

In this image, the LS harness plug is on the far right. The one for the Kit's alternator is next to it.
LS Swap, CS130D To CS130 Alternator Wiring? -- posted image.
Ween
Platinum - Posts: 1,366
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: November 10, 2023 at 6:11 PM / IP Logged Link to Post Post Reply Quote Ween
give a look here: http://billavista.com/tech/Articles/Alternator_Bible/index.html
