2000 Grand Cherokee, Compustar 4900S


Post ReplyPost New Topic
< Prev Topic Next Topic >
fuzzzydog
Member - Posts: 1
Member spacespace
Joined: December 11, 2021
Location: British Columbia, Canada
Posted: February 11, 2024 at 12:45 PM / IP Logged Link to Post Post Reply Quote fuzzzydog
Finally getting around to installing this system that I bought a while ago. It has the Blade AL module, and I have flashed it to my vehicle.
the wires from the Blade harness - very easy to find and understand.
But some of the other wiring has me stumped.

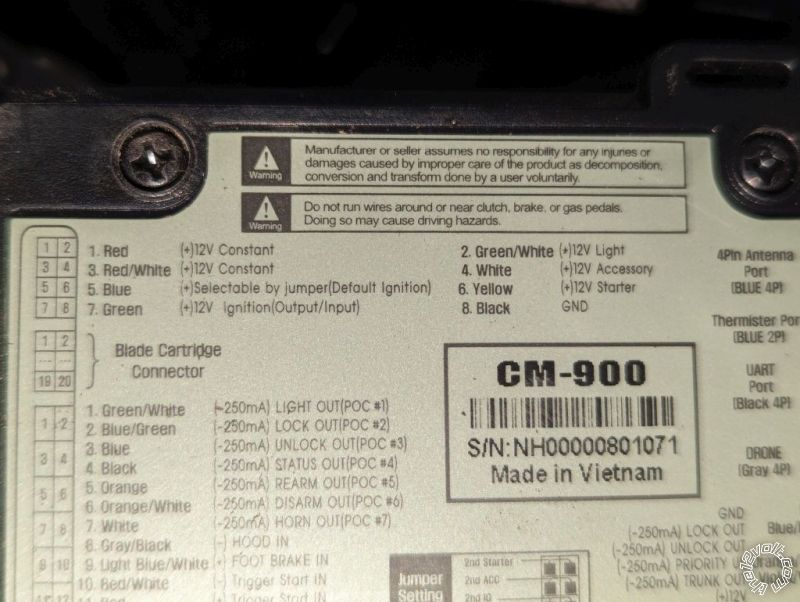

The parking light mux wire - easy enough to find the harness on the jeep and ok, put a 1000 ohm resistor in line but.....there are 2 wires marked lights on the RS
A heavy gauge green/white in the main 8 pin plug labeled +12V Light, and a smaller gauge wire also green/white labeled -250ma light out (POC #1) which one do I use?

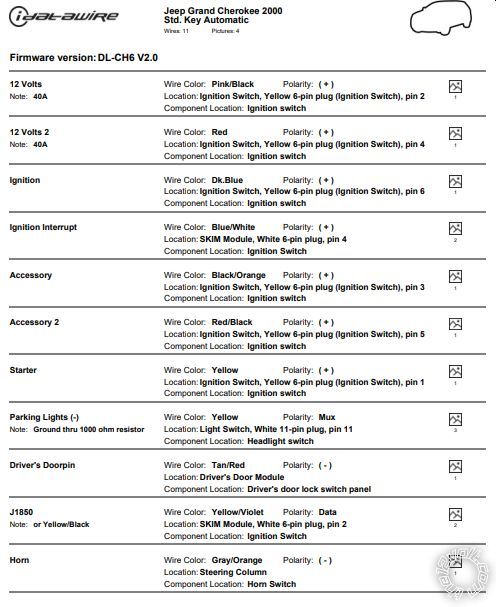

also in the wiring table it shows driver's doorpin (for the alarm?) but doesn't show which wire from the RS goes to the drivers door pin.
Any help would be greatly appreciated. thanks
2000 Grand Cherokee, Compustar 4900S -- posted image.
2000 Grand Cherokee, Compustar 4900S -- posted image.
kreg357
Platinum - Posts: 7,775
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: February 11, 2024 at 2:41 PM / IP Logged Link to Post Post Reply Quote kreg357
The CM900-s is not an Alarm system and is for Auto Trans vehicles only. As such, there is no need for a Door Trigger input wire. You might use a vehicle (-) Door Status wire for RAP Shutdown.

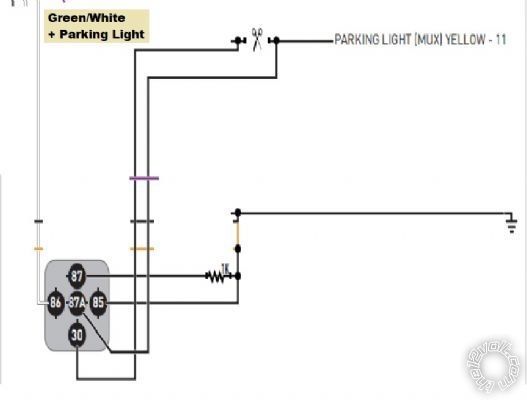

For the Parking Light MUX wire, it's a (-) signal through a 1,000 Ohm resistor. You could try the thin Green/White (-) Parking Light wire with the resistor in-line but if that doesn't work properly iDatalink has this wiring diagram with a 5 Pin relay that will work :
2000 Grand Cherokee, Compustar 4900S -- posted image.
Soldering is fun!
