Viper 350 Plus 3105V, Door Lock Actuators


Post ReplyPost New Topic
< Prev Topic Next Topic >
chiel
Member - Posts: 12
Member spacespace
Joined: April 03, 2024
Location: Netherlands
Posted: April 03, 2024 at 3:00 PM / IP Logged Link to Post Post Reply Quote chiel
Hello everyone,
I have bought a Viper 350 plus 3105V alarmsystem for my 65 Buick Skylark. It works fine. So far so good. However, i cant get my (after market) door actuators working. I've tried several relais diagrams (type A, type B etc.) from this site but nothing seems to work. What am i doing wrong? Or do i need an option?
Green (-) lock (+) unlock output
Blue (-) unlock (+) lock output
Thanks in advance! Mike.
silvercivicsir
Copper - Posts: 411
Copper spacespace
Joined: November 21, 2003
Posted: April 03, 2024 at 3:56 PM / IP Logged Link to Post Post Reply Quote silvercivicsir
you need to Five wire it.. TYPE C
chiel
Member - Posts: 12
Member spacespace
Joined: April 03, 2024
Location: Netherlands
Posted: April 04, 2024 at 12:27 PM / IP Logged Link to Post Post Reply Quote chiel
Thanks for your replay!
Type C comes with a switch. And i don't have a switch in my car. Maybe I need another diagram? I really don't know what i'm doing wrong.... how diffcult can it be? Thanks!
davep.
Gold - Posts: 644
Gold spacespace
Joined: May 27, 2011
Location: California, United States
Posted: April 06, 2024 at 12:12 PM / IP Logged Link to Post Post Reply Quote davep.
Use this diagram:
https://www.the12volt.com/relays/relaydiagram48.html
chiel
Member - Posts: 12
Member spacespace
Joined: April 03, 2024
Location: Netherlands
Posted: April 12, 2024 at 12:16 AM / IP Logged Link to Post Post Reply Quote chiel
Hi Davep,
I had already tried that diagram and it didn't work either. Could it be a setting in the alarm menu? As far as I know, I haven't changed anything there.
Regards.
chev104275
Gold - Posts: 1,433
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: April 12, 2024 at 6:22 AM / IP Logged Link to Post Post Reply Quote chev104275
Do you have a diagram for the door lock actuator kit you installed ?
If i Can't Install it    I Don't need it   Joe
chiel
Member - Posts: 12
Member spacespace
Joined: April 03, 2024
Location: Netherlands
Posted: April 12, 2024 at 8:44 AM / IP Logged Link to Post Post Reply Quote chiel

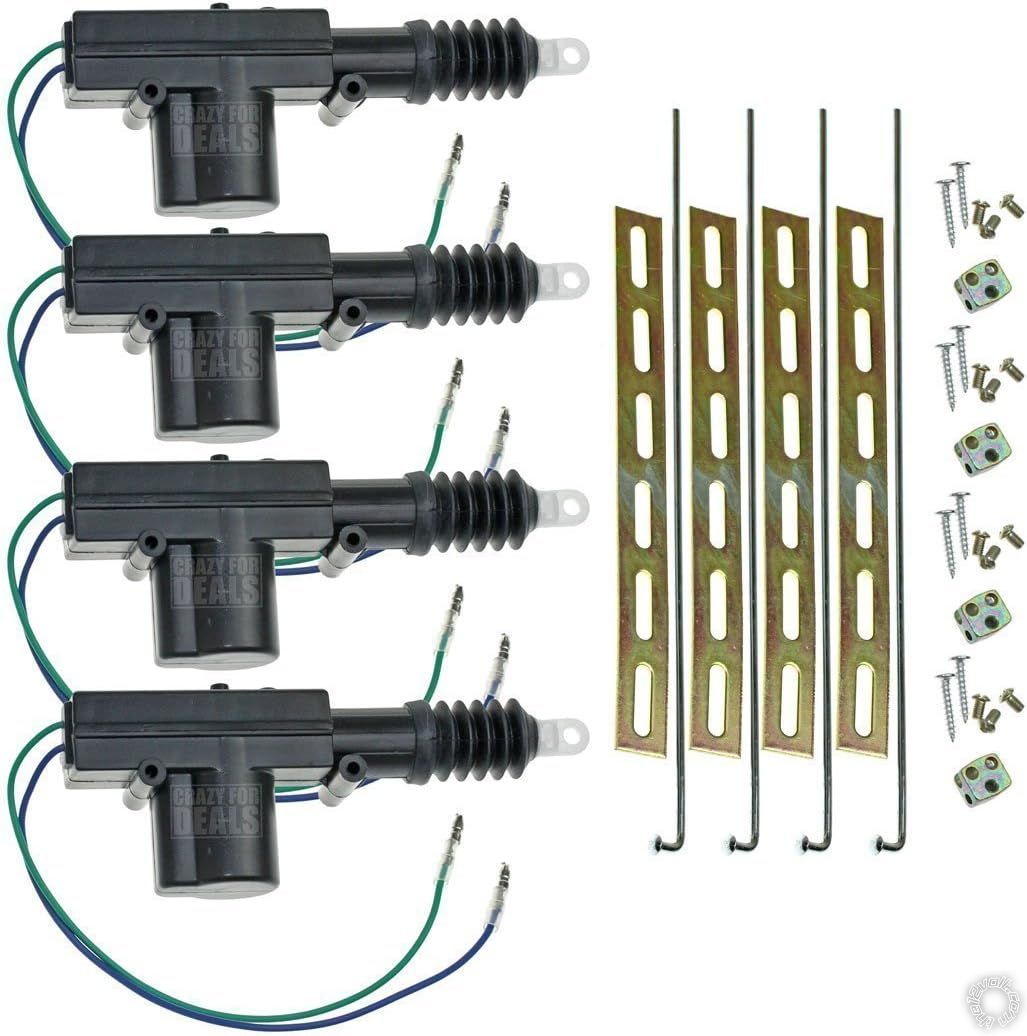

Viper 350 Plus 3105V, Door Lock Actuators -- posted image.
Hi Chev,
I just bought 2 actuators from Installgear en used the diagram below with 2 relais.
https://www.the12volt.com/relays/relaydiagram48.html
Thanks!
chev104275
Gold - Posts: 1,433
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: April 12, 2024 at 11:50 AM / IP Logged Link to Post Post Reply Quote chev104275
So that diagram should work. What happens if you apply ground to either pin 85 or 86 on the respected relays? Do the locks operate as they should?
If i Can't Install it    I Don't need it   Joe
chiel
Member - Posts: 12
Member spacespace
Joined: April 03, 2024
Location: Netherlands
Posted: April 13, 2024 at 1:44 PM / IP Logged Link to Post Post Reply Quote chiel
Ok, I found the problem. Now it's working except it doesn't react on the remotecontrol. So it has to be a setting? but witch one? Thanks.
chiel
Member - Posts: 12
Member spacespace
Joined: April 03, 2024
Location: Netherlands
Posted: April 15, 2024 at 2:06 PM / IP Logged Link to Post Post Reply Quote chiel
Ok, it still doesn't work.
When I put the voltmeter on both the blue and green wire, it reads almost 12v. The 12v comes straight from the controlbox. So I don't measure a pulse when it locks or unlocks.
That doesn't seem right to me, does it? Anyone else have an idea or tip? Thanks!
