2015 Kia Sedona LX, Backup Camera Wiring?


Post ReplyPost New Topic
< Prev Topic Next Topic >
dustinr
Member - Posts: 2
Member spacespace
Joined: November 08, 2021
Location: Texas, United States
Posted: June 10, 2024 at 9:29 PM / IP Logged Link to Post Post Reply Quote dustinr
I already bought a stereo kit, but im Looking for a pinout for the OEM backup camera specifically, also, does anyone know of a compatible module to do steering wheel controls ?
thanks guys.
dcr
i am an idiot
Platinum - Posts: 13,693
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: June 11, 2024 at 9:15 PM / IP Logged Link to Post Post Reply Quote i am an idiot
With OEM navigation.
http://metraonline.com/part/AXBUCH6V-HK1
WIthout OEM navigation
http://metraonline.com/part/AXBUCH6V-HK2
The camera is powered with 6 volts. If you do find out the wire colors for the camera you will need a 6 volt regulator. Both of the above items come with the regulator. Much better off investing in the one you need.
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
dustinr
Member - Posts: 2
Member spacespace
Joined: November 08, 2021
Location: Texas, United States
Posted: June 11, 2024 at 10:20 PM / IP Logged Link to Post Post Reply Quote dustinr
yea unfortunately that's not compatible with my unit, those are for a 16pin cable, or a 24pin cable (with a different layout from mine), mine has the following cables: an 18pin cable, a 24pin cable, a 4pin cable, an xm radio cable, and a regular antenna cable.

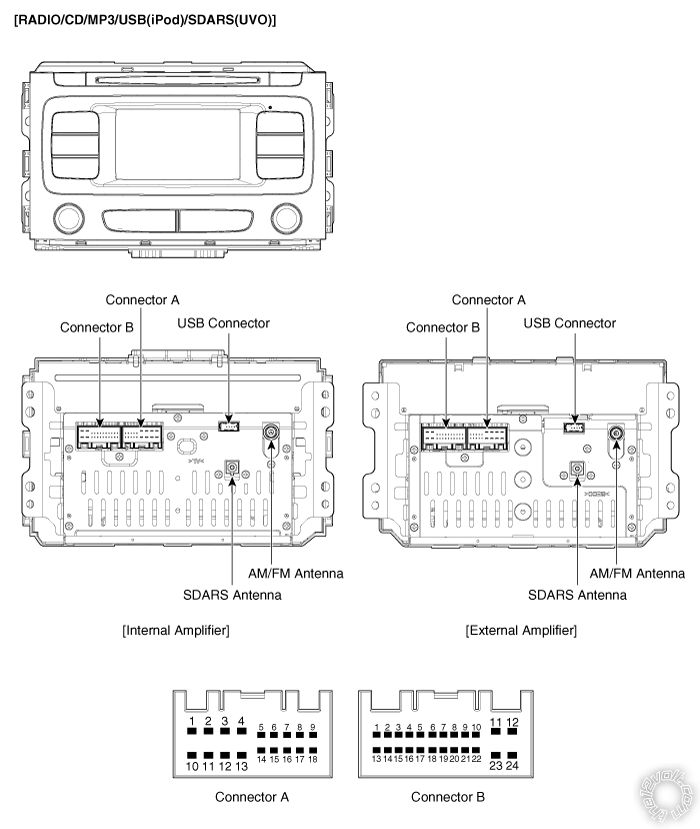

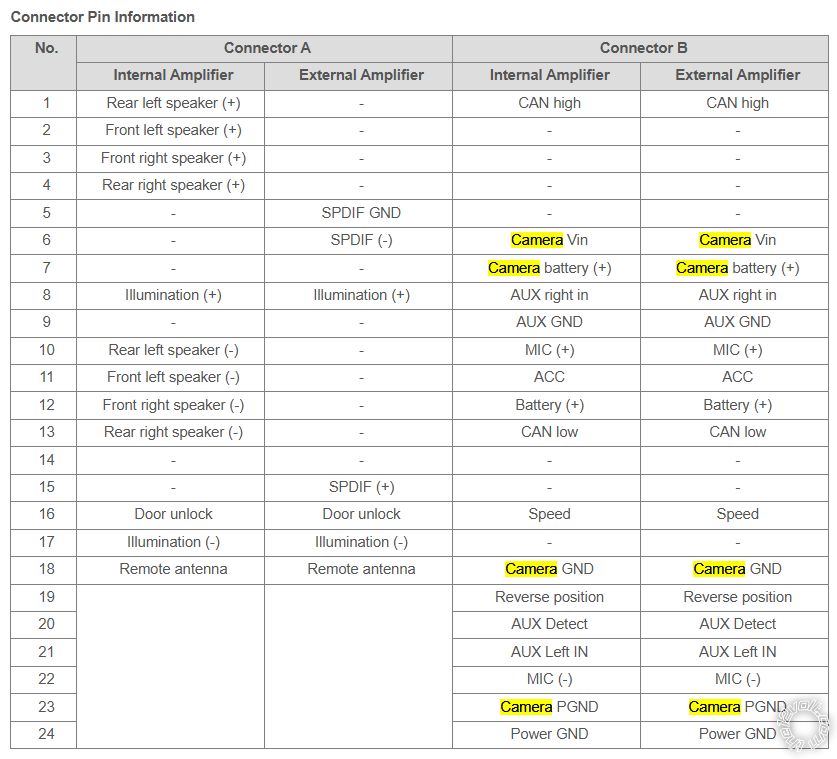

I found this wiring diagram online, and it matches my unit exactly (scroll down to the bottom), but the only problem I'm having is discerning which camera wires are signal, and which are power ?
(Camera Vin, Camera battery (+), Camera GND, Camera PGND)?
https://www.kisedona.com/audio_unit_components_and_components_location-1493.html
2015 Kia Sedona LX, Backup Camera Wiring? -- posted image.
2015 Kia Sedona LX, Backup Camera Wiring? -- posted image.
