2005 Dodge Caravan, Keyless Entry


Post ReplyPost New Topic
< Prev Topic Next Topic >
jodycat
Member - Posts: 2
Member spacespace
Joined: September 07, 2024
Location: Michigan, United States
Posted: September 07, 2024 at 5:33 AM / IP Logged Link to Post Post Reply Quote jodycat
Hey all,
I have a 2005 Dodge Grand Caravan. I bought a keyless entry module and the required resistors. I have everything wired but I am having a hard time finding where to land it on the BCM. I know that it is a purple/green wire that I need to connect to, some reference to plug 3-pin 21 on the BCM but I do not have a pinout for the BCM. If I connect the keyless module to the wire inside the door it will work, but I would like to connect it inside the van. Any help would be greatly appreciated on where to land the wire inside the van?
lee.lopez
Member - Posts: 45
Member spacespace
Joined: September 02, 2024
Location: Texas, United States
Posted: September 07, 2024 at 8:29 AM / IP Logged Link to Post Post Reply Quote lee.lopez
Connector 3 should be the white connector in the middle. I don't know on this car particularly, but most have a pin or two identified on the plug. If you can find this, then you're looking for the purple/green wire in pin 21.

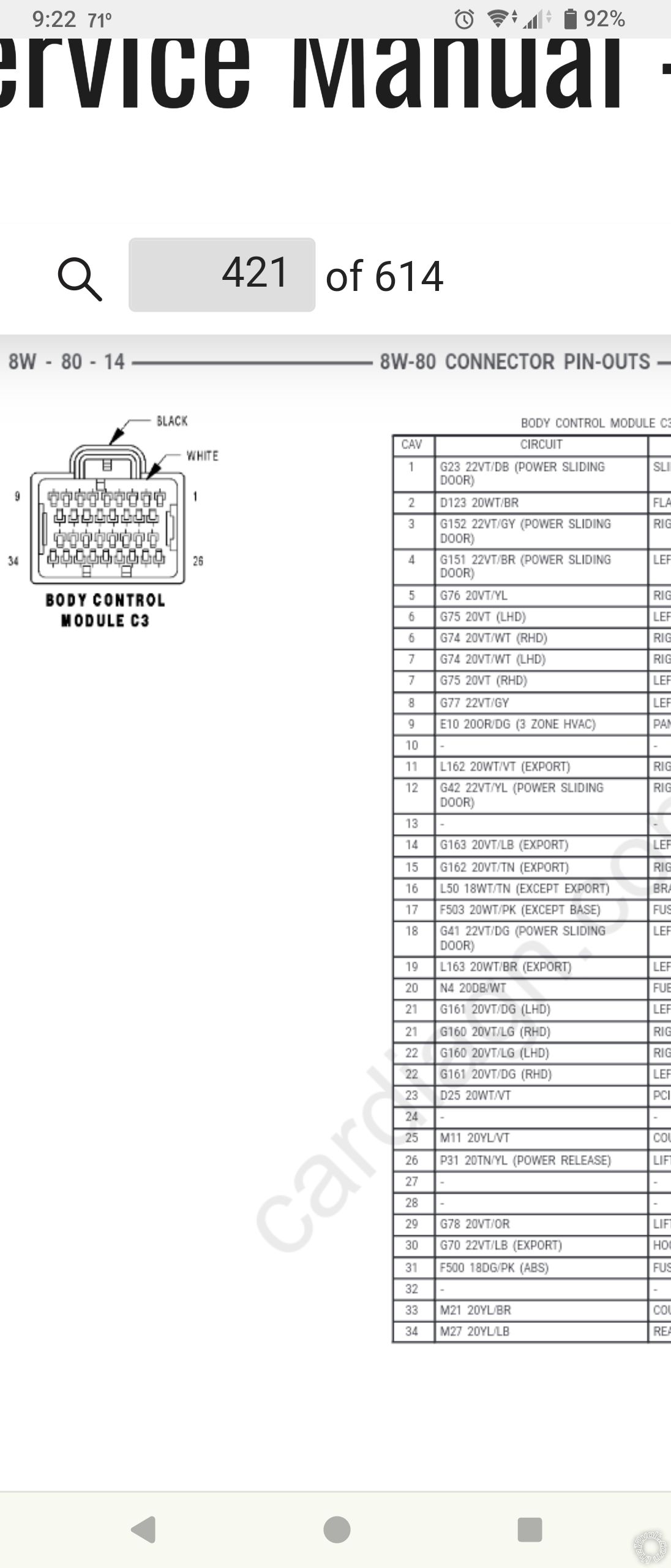

2005 Dodge Caravan, Keyless Entry -- posted image.
Good luck
jodycat
Member - Posts: 2
Member spacespace
Joined: September 07, 2024
Location: Michigan, United States
Posted: September 07, 2024 at 2:57 PM / IP Logged Link to Post Post Reply Quote jodycat
Thank you! Greatly appreciated!!
