Make Fog Lights Turn Off With High Beams

Home / the12volt's Install Bay / Lights, Neon, LEDs, HIDs / Make Fog Lights Turn Off With High Beams

Welcome Guest :)

Members

< Prev Topic Next Topic >

tory209

Member - Posts: 20

Joined: September 15, 2023

Location: Georgia, United States

Posted: March 31, 2025 at 10:58 PM / IP Logged

I have a 2001 Chevy Silverado LS trim. It did not come with fog lights. I'm looking to add fog lights using a switch and relay. I want the fog lights to function like factory lights. Only on with ignition on and I want them to turn off when the high beams come. Is there a diagram and do I need more than 1 relay

Tory209

lee.lopez

Copper - Posts: 248

Joined: September 02, 2024

Location: Texas, United States

Posted: April 01, 2025 at 10:30 AM / IP Logged

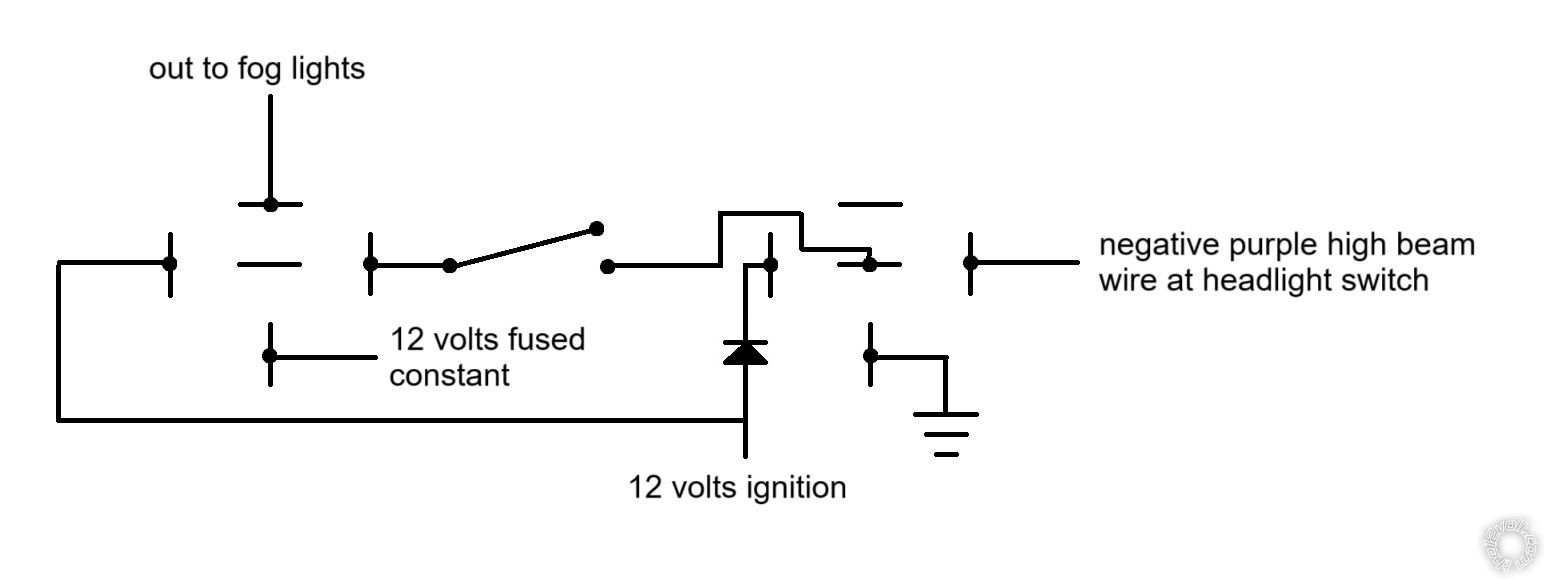

You can always add suppression diodes across the relay coils, but this should do it.

Make Fog Lights Turn Off With High Beams -- posted image.

tory209

Member - Posts: 20

Joined: September 15, 2023

Location: Georgia, United States

Posted: April 04, 2025 at 5:15 AM / IP Logged

Can you provide the pin numbers for the relays.

Tory209

lee.lopez

Copper - Posts: 248

Joined: September 02, 2024

Location: Texas, United States

Posted: April 04, 2025 at 8:21 AM / IP Logged

https://www.the12volt.com/relays/spdt-and-spst-automotive-relays.asp
