Im looking for location and color for the door pin switch on a 2022 VW Taos. Im adding a stand alone glass sensor to the car.

Back to Top

lee.lopez

Copper - Posts: 264

Joined: September 02, 2024

Location: Texas, United States

Posted: May 27, 2025 at 5:14 AM / IP Logged

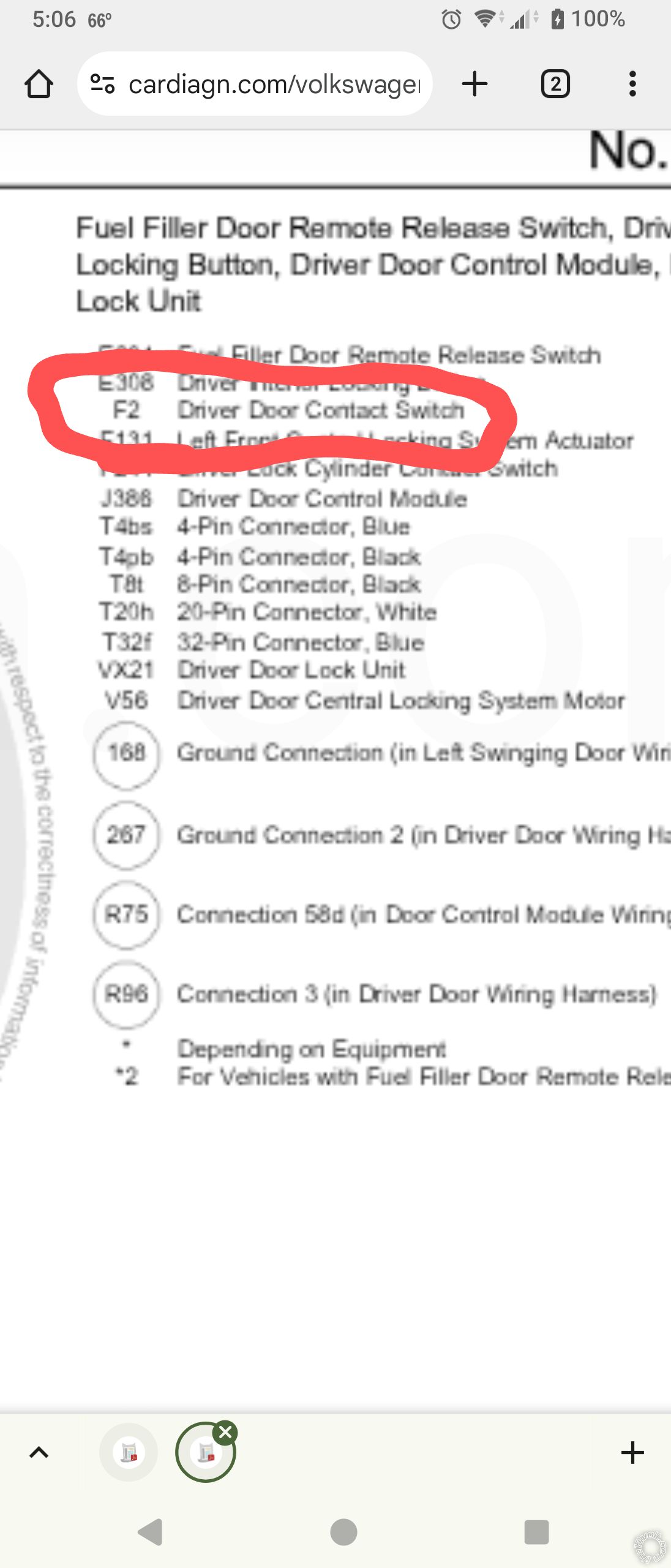

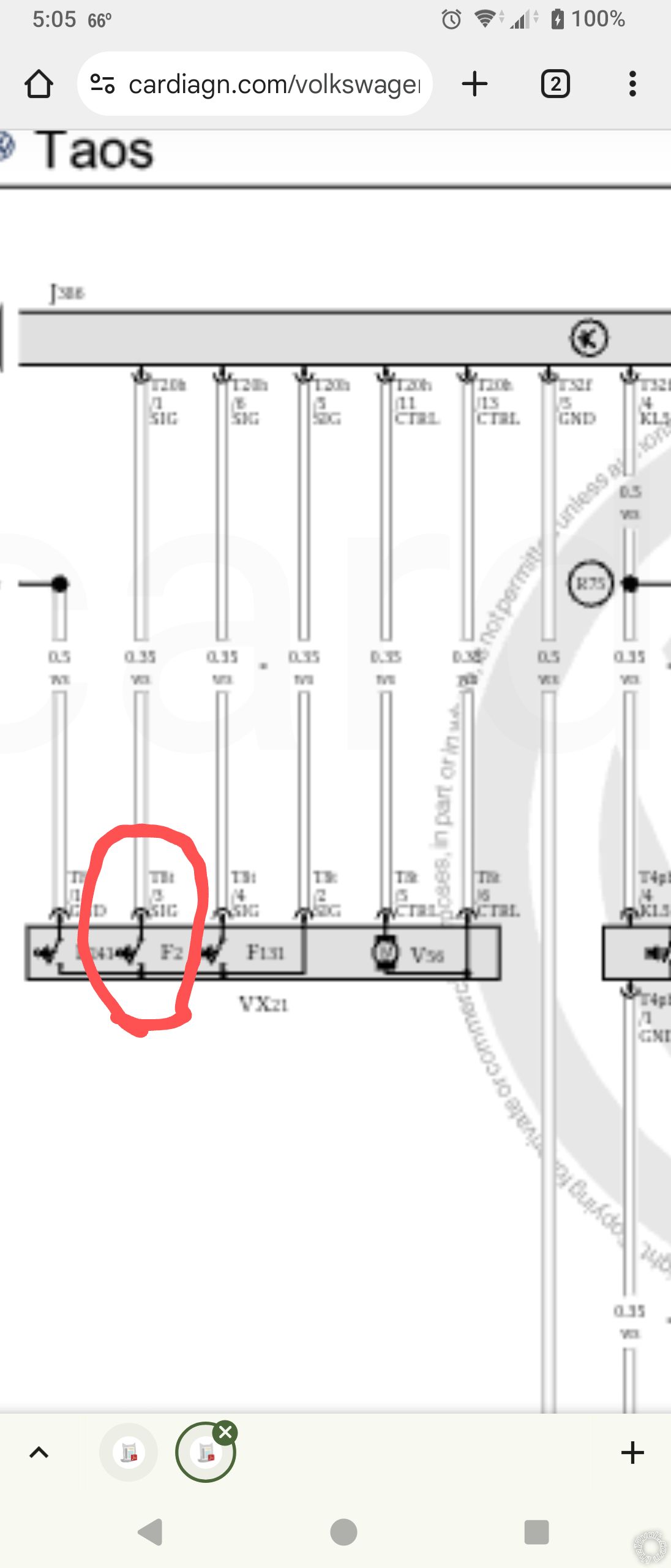

The best I can tell, pin 3 at what appears to be the door latch is the driver's door pin. All 6 wires look to be white. This wire should be negative with the door open:

https://cardiagn.com/volkswagen-taos-cl1-wiring-diagrams-door-driver/

2022 Volkswagen Taos, Door Pin? -- posted image.
