Dual Purpose Fog Light Wiring

Home / the12volt's Install Bay / Lights, Neon, LEDs, HIDs / Dual Purpose Fog Light Wiring

Welcome Guest :)

Members

< Prev Topic Next Topic >

notagain

Member - Posts: 2

Joined: July 17, 2025

Location: Australia

Posted: July 17, 2025 at 5:02 PM / IP Logged

Hi, I'm in need of assistance with Dual Purpose Fog Light Wiring. Can someone please help me complete the following Wiring Diagram.

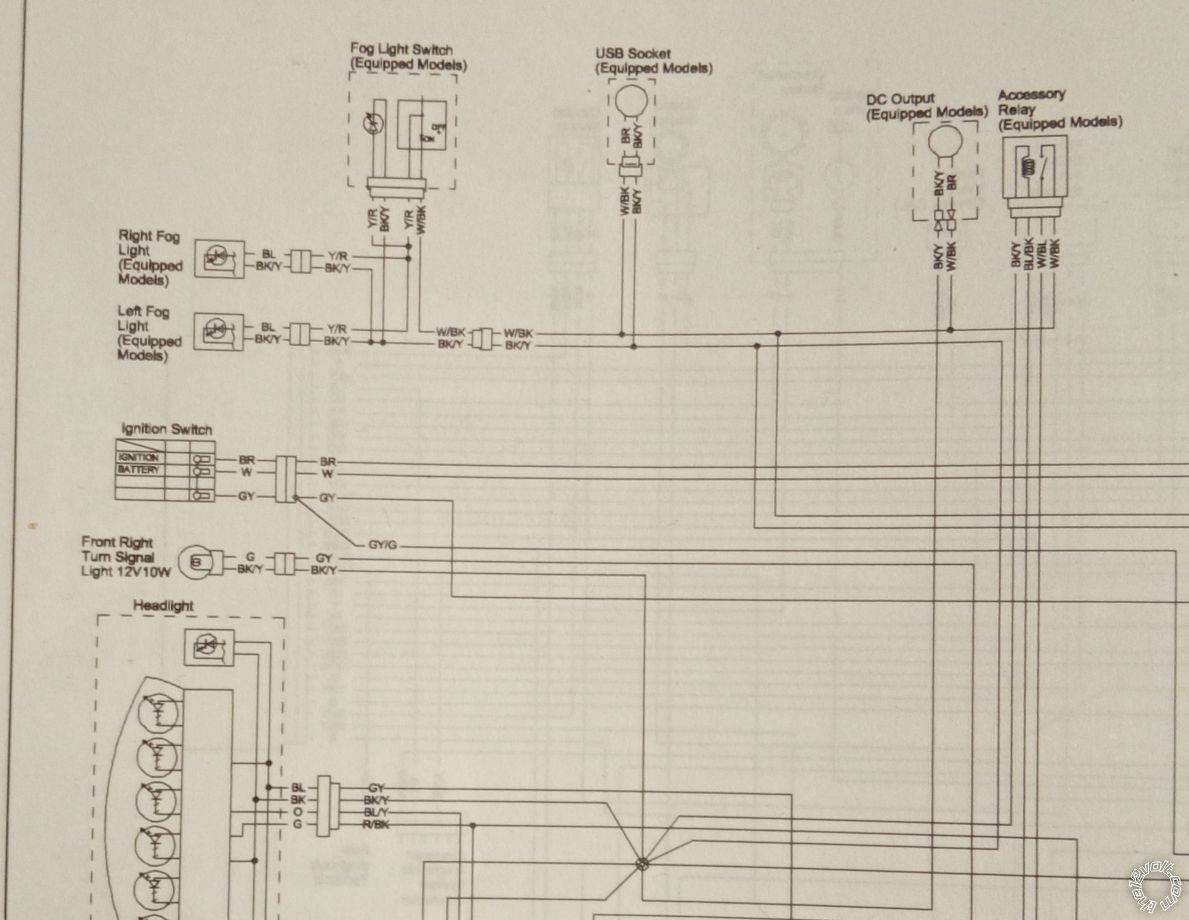

Also attached the wiring diagram from the workshop manual.

Thanks in advance.

There are Fog Lights already wired to an On/Off Switch (Switch 1).

I would like to:

1. Add a 2nd On/Off Switch (Switch 2) that will allow the Lights to be controlled by the Hi-Beam Switch.

2. When Switch 2 is active, switch 1 to be Inactive/Bypassed.

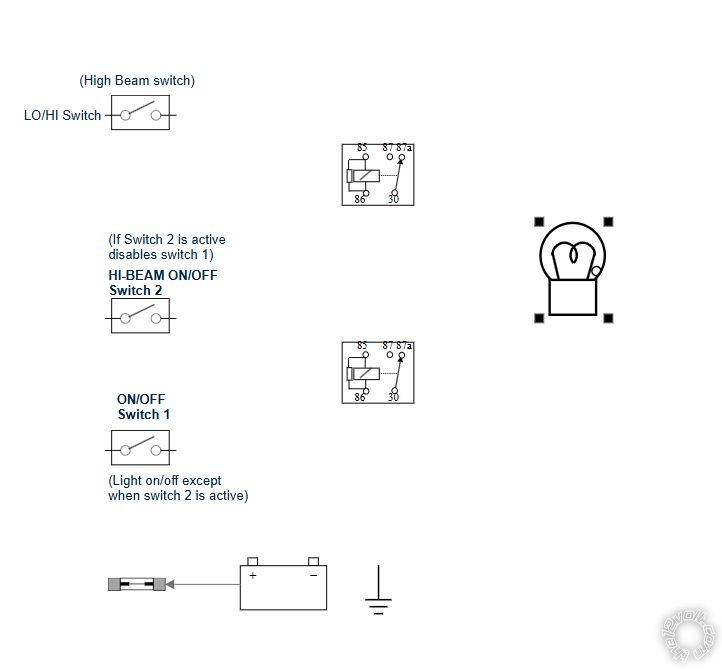

Template Download

Dual Purpose Fog Light Wiring -- posted image.

notagain

Member - Posts: 2

Joined: July 17, 2025

Location: Australia

Posted: July 17, 2025 at 6:15 PM / IP Logged

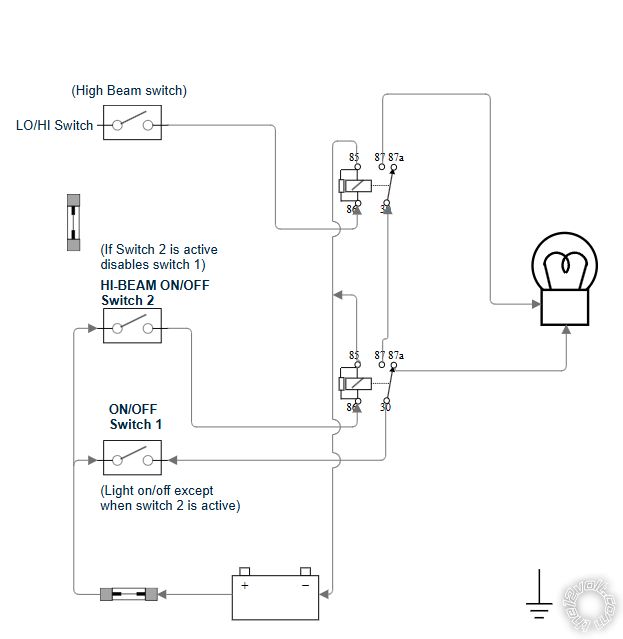

Would this be okay?
