Dash Kit Fabrication (BWW)

Home / the12volt's Install Bay / Car Audio / Dash Kit Fabrication (BWW) (Topic Closed Topic Closed)
Welcome Guest :)

Post ReplyPost New Topic
< Prev Topic Next Topic >
cjbenedict
Member - Posts: 15
Member spacespace
Joined: March 18, 2003
esmith69
Gold - Posts: 1,511
Gold spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: November 26, 2002
Location: United States
Posted: June 23, 2003 at 4:17 PM / IP Logged

What kind of car is this for? (i.e. year and model)

Ethan
-----
"Patience, persistence, and perspiration make an unbeatable combination for success"
Donate to the12volt.com
Velocity Motors
Moderator - Posts: 12,488
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Fabrication. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 08, 2002
Location: Manitoba, Canada
Posted: June 23, 2003 at 10:29 PM / IP Logged

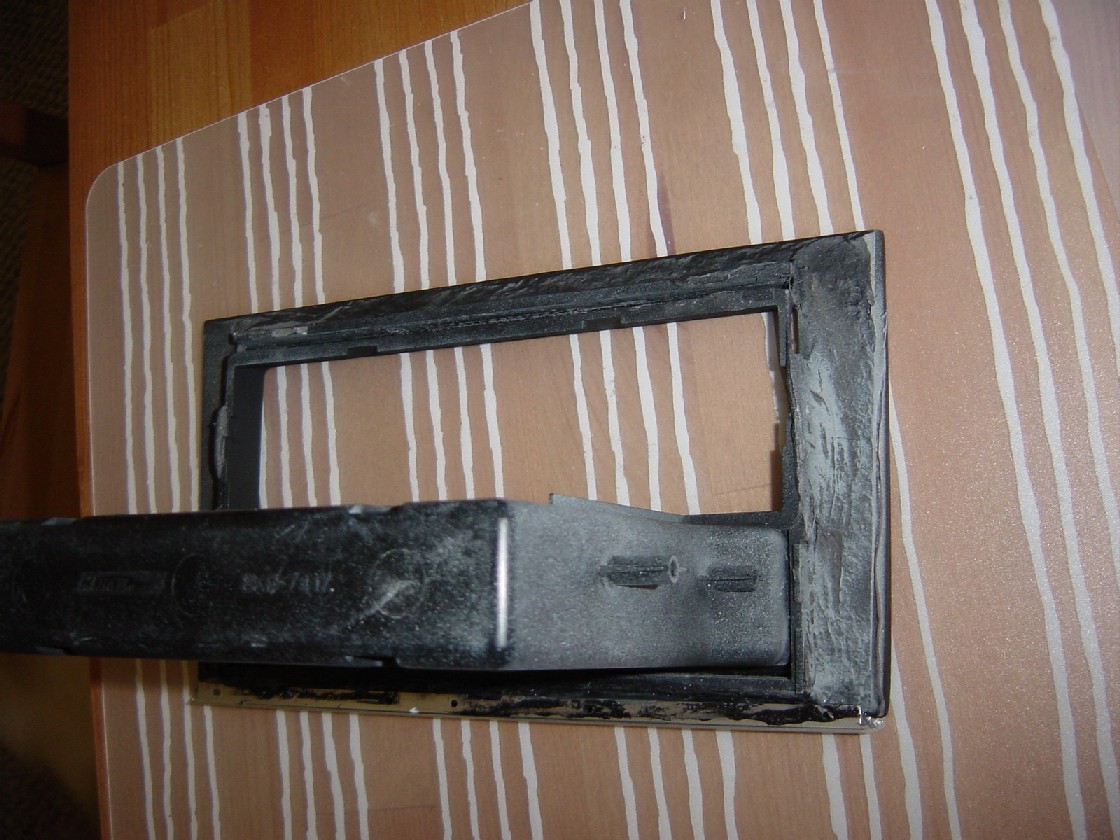

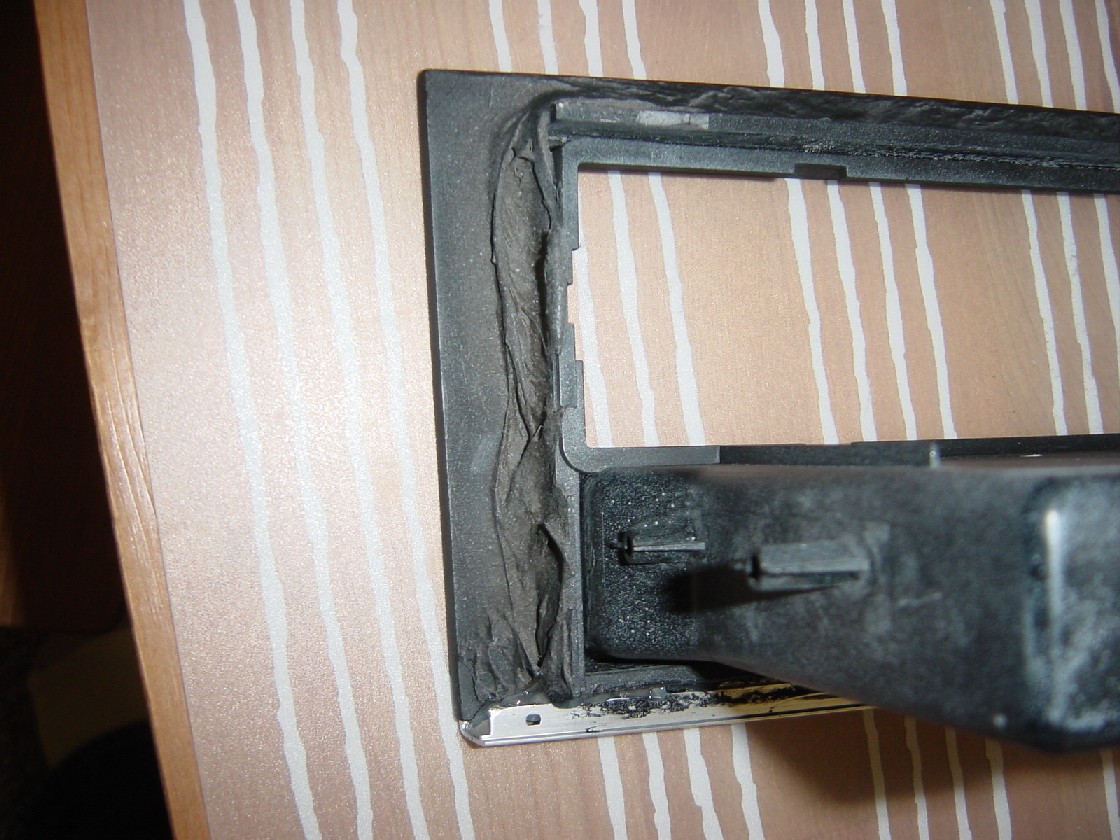

Looks like the person took an installation kit for a vehicle and took out the BMW trim plate and used polyurathane caulking to stick the two pieces together.
Jeff
Velocity Custom Home Theater
Mobile Audio/Video Specialist
Morden, Manitoba CANADA
cjbenedict
Member - Posts: 15
Member spacespace
Joined: March 18, 2003
Posted: June 24, 2003 at 9:05 AM / IP Logged

This is going in a '02 Audi A4

esmith69 wrote:

What kind of car is this for? (i.e. year and model)
cjbenedict
Member - Posts: 15
Member spacespace
Joined: March 18, 2003
Posted: June 24, 2003 at 9:08 AM / IP Logged

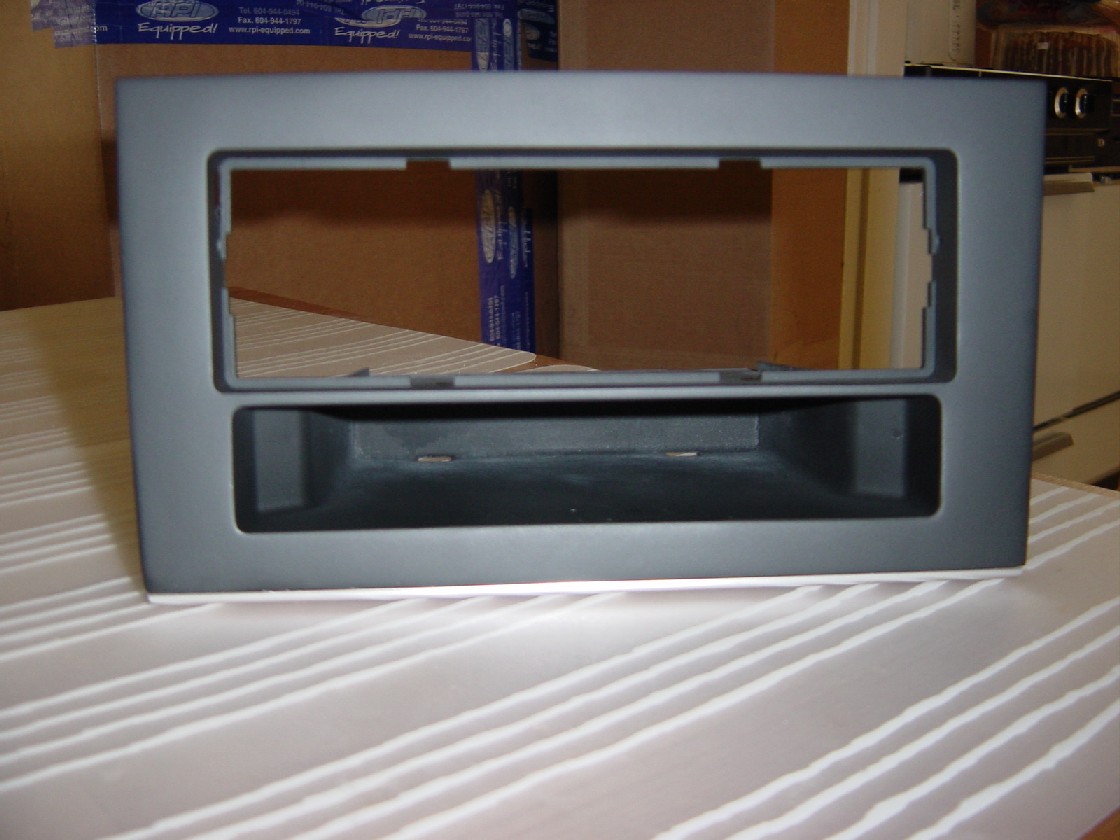

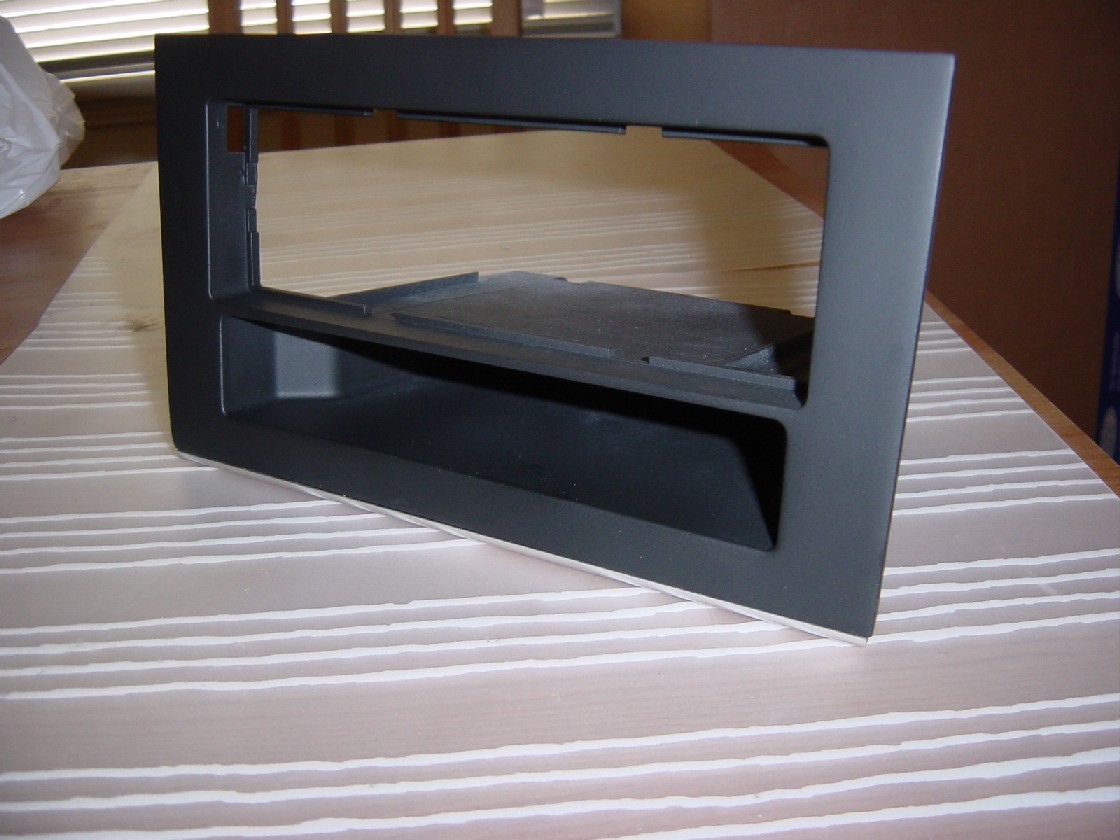

This person used an install kit for the pocket and single din adapter, but the flat piece is ABS plastic. How did he get it so smooth and professional looking? Is it really that easy just to take some abs plastic, glue the pieces together, sand it down and paint?

Velocity Motors wrote:
Looks like the person took an installation kit for a vehicle and took out the BMW trim plate and used polyurathane caulking to stick the two pieces together.

Velocity Motors
Moderator - Posts: 12,488
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Fabrication. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 08, 2002
Location: Manitoba, Canada
Posted: June 24, 2003 at 9:23 AM / IP Logged
The person probably sanded, primed & painted the ABS flat black. It's not hard to do with the proper tools. Just have to make sure of the fitment and that the trim plate doesn't come apart after a while with driving & temperatures.
Jeff
Velocity Custom Home Theater
Mobile Audio/Video Specialist
Morden, Manitoba CANADA
cjbenedict
Member - Posts: 15
Member spacespace
Joined: March 18, 2003
Posted: June 24, 2003 at 9:30 AM / IP Logged

Could this also be done with fiberglass and some filler (like bondo or rage gold)?

Velocity Motors wrote:
The person probably sanded, primed & painted the ABS flat black. It's not hard to do with the proper tools. Just have to make sure of the fitment and that the trim plate doesn't come apart after a while with driving & temperatures.

cjbenedict
Member - Posts: 15
Member spacespace
Joined: March 18, 2003
Posted: June 24, 2003 at 9:32 AM / IP Logged

Sorry, I ment duraglass ... not rage gold.

cjbenedict wrote:

Could this also be done with fiberglass and some filler (like bondo or rage gold)?

Velocity Motors wrote:
The person probably sanded, primed & painted the ABS flat black. It's not hard to do with the proper tools. Just have to make sure of the fitment and that the trim plate doesn't come apart after a while with driving & temperatures.

Velocity Motors
Moderator - Posts: 12,488
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Fabrication. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 08, 2002
Location: Manitoba, Canada
Posted: June 24, 2003 at 9:44 AM / IP Logged
Fiberglass & Duraglass is for fabrication & shaping / filling purposes. If you are only going to take ABS plastic and make your own kit from two separate kits, you only need to use some high build primer & paint to accomplish this. Using bondo to fill in the gaps and use a bonding catalyst for the two peices so they are connected as one piece. I would not use fiberglass in this case if I were you as this will cause you alot more unnecessary work in the end...... that being sanding Dash Kit Fabrication (BWW) -- posted image.
Jeff
Velocity Custom Home Theater
Mobile Audio/Video Specialist
Morden, Manitoba CANADA
cjbenedict
Member - Posts: 15
Member spacespace
Joined: March 18, 2003
Posted: June 24, 2003 at 9:48 AM / IP Logged

Cool ... Thanks!

Velocity Motors wrote:
Fiberglass & Duraglass is for fabrication & shaping / filling purposes. If you are only going to take ABS plastic and make your own kit from two separate kits, you only need to use some high build primer & paint to accomplish this. Using bondo to fill in the gaps and use a bonding catalyst for the two peices so they are connected as one piece. I would not use fiberglass in this case if I were you as this will cause you alot more unnecessary work in the end...... that being sanding Dash Kit Fabrication (BWW) -- posted image.
