Need the schematics for the fuse block. (need to know what all the fuses do) .

More spcifically, what is the RFA BATT Fuse?

What fuses interact with the BCM and Keyless module? and what fuse touches power locks?

Thanks!

Eric

Big Dog

Gold - Posts: 1,265

This member consistently provides reliable information

Joined: May 02, 2002

Location: Quebec, Canada

Posted: January 30, 2004 at 9:55 AM / IP Logged

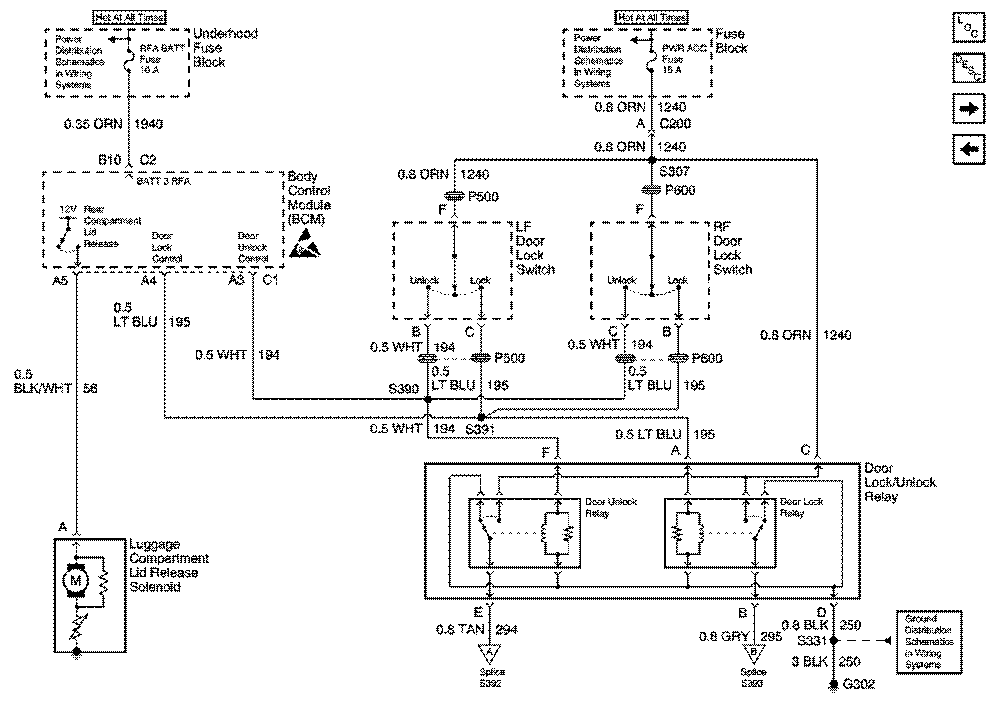

try this

Sorry about the roughness, 30K max upload.

The RFA Batt fuse feeds the BCM. You'll see an orange wire in the light blue plug at position B10.
