sunfighter077

Member - Posts: 27

Joined: January 24, 2003

Location: United States

Posted: February 04, 2004 at 6:11 PM / IP Logged

I have an actuator that uses a simple postive and negative to extend and then the negative and positive have to be reversed to retract it. If any of you can help figure out how to do this with a switch and relays that would be great. Thanks for all the help

Back to Top

mobiletoys2002

Gold - Posts: 1,050

Joined: April 12, 2002

Location: United States

Posted: February 04, 2004 at 6:18 PM / IP Logged

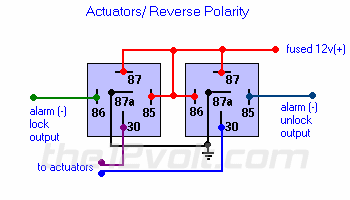

2 relays will be needed they will reverse polarity for you! Actuator Help -- posted image.

Add your switches and pulse the relays with a ground from the switch you add!

Back to Top

Search for other posts by mobiletoys2002

nxtbesthing

Member - Posts: 10

Joined: December 24, 2003

Location: United States

Posted: February 06, 2004 at 5:02 PM / IP Logged

select products has a switch I think the model number is (actsw) it's very easy to wire no relays are needed. They can take care of any questions about wiring the switch it also looks nice

Back to Top

Sandungero24

Member - Posts: 44

Joined: February 24, 2004

Location: United States

Posted: February 25, 2004 at 6:09 PM / IP Logged

Back to Top

Sandungero24

Member - Posts: 44

Joined: February 24, 2004

Location: United States

Posted: February 25, 2004 at 6:13 PM / IP Logged

this diagram only applies if the "trigger" wires from the alarm provide a pulsed ground (-) to lock/unlock. If they provide a pulsed positive (+) instead, you will have to ground the opposite 85/86 terminal to allow the relay to work. Actually, my alarm allowed me to use either pulsed (-) or (+), I just chose to use the (-).

Back to Top
