4ohm subs to 2ohm (2)subs sony

 i was wonder i have a 1600w mono amp an( 2) 4ohm 12inch sony subs. how can i get those subs to run at 2ohms.southsider

southside wrote:  i was wonder i have a 1600w mono sony amp , an( 2) 4ohm 12inch sony subs. how can i get those subs to run at 2ohms. < language=>postamble();

southsider

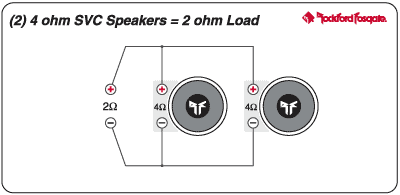

If they are 4ohm SVC subs, then wire them in parallel for a 2ohm total load If they are 4ohm DVC subs then you cannot wire both of them to the same channel and acheive a 2ohm total loadSquirrel

"No more Cpt. Kirk chit chat"

If its too loud, then you're too old

Donate to the12volt.com

If you have a monoblock amp then there should only be one channel (1 set of terminals). Some mono amps though have 2 physical sets of terminals for ease of wiring. What's the make and model of your amplifier?Squirrel

"No more Cpt. Kirk chit chat"

If its too loud, then you're too old

Donate to the12volt.com

 i have a sony xm-d1000p5 1600w mono amp, an my subs are the new red sony svc subs 1200wattssouthsider

Ok, the P5 series are Class D Mono amps. The "bridge" they are talking about is not a true "bridge" in the classical sense (turning 2 channels into 1). Simply wire like the diagram I posted above and you'll be fine. The + and - where it says 2ohms is the + and - on the amp speaker output terminal. You can use seperate wires going to the subs (you don't have to daisy chain), just make sure the + on the amp goes to the + on the subs, and the - on the amp goes to the - on the subs.Squirrel

"No more Cpt. Kirk chit chat"

If its too loud, then you're too old

Donate to the12volt.com

ok thanks so basically anywere on the amp + to+ an- to- i got it thanks a bunchsouthsider

as long as there is only one set of output terminals on teh amp then yes.Squirrel
