2004 Ford Escape wiring harness?

Home / the12volt's Install Bay / Car Audio / 2004 Ford Escape wiring harness? (

Topic Closed)

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

jasdjensen

Member - Posts: 2

Joined: May 05, 2004

Location: United States

Posted: May 05, 2004 at 8:13 PM / IP Logged

I have a 2004 Ford Escape Limited with the 7 speaker stereo (front separates, rear speakers, and a subwoofer).

I'm looking for the correct wiring harness. Here are a couple of pics.

This is what my plug from my car looks like

2004 Ford Escape wiring harness? -- posted image.

That is actually a picture of the Metra part 70-5520. The corresponding mating part is 71-5520, which looks like this.

2004 Ford Escape wiring harness? -- posted image.

What I'm wondering is, even if this looks like the right plug for my stereo, how do I know for sure that the pinouts are correct?

Also the stereo accepts this other plug that is for the subwoofer:

2004 Ford Escape wiring harness? -- posted image.

I'm assuming the subwoofer connector is more standard and easier to find, but I dont know the metra part number for the corresponding receiving plug.

If anyone has successfully replaced their radio for the 2004 Ford Escape limited or has had similar experience, please let me know.

Thanks.

Jason

Back to Top

jasdjensen

Member - Posts: 2

Joined: May 05, 2004

Location: United States

Posted: May 05, 2004 at 8:16 PM / IP Logged

Sorry.. the pictures didnt turn out.. here are the links.

http://www.installer-data.com/photos/wires/71-5520.jpg

http://www.installer-data.com/photos/wires/70-5520.jpg

Jason

Back to Top

charlie101_1999

Member - Posts: 40

Joined: October 29, 2002

Location: United States

Posted: May 08, 2004 at 11:44 AM / IP Logged

Thats the biggest picture I think I've ever seen.

Back to Top

Search for other posts by charlie101_1999

dudek38

Copper - Posts: 250

This member has made a donation to the12volt.com. Click here for more info.

Joined: March 28, 2004

Location: United States

Posted: May 08, 2004 at 9:11 PM / IP Logged

i second that last response.

owner of

Motion Marine & Car Audio

the florida keys

Back to Top

Ketel22

Silver - Posts: 976

Joined: August 23, 2003

Location: United States

Posted: May 08, 2004 at 9:16 PM / IP Logged

i third it!

Quad L Handyman services

Back to Top

NowYaKnow

Gold - Posts: 1,217

Joined: December 18, 2002

Posted: May 09, 2004 at 12:08 PM / IP Logged

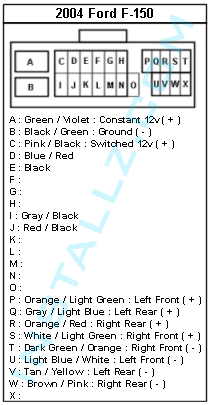

If for some reason you don't trust that the pinouts are correct, get out your multimeter and test the wires. The plug in the car looks I believe the same as the plug in the new F-150. The positions anyway I'm not sure on the wire colors they may be different. Here's a pinout of that plug:

2004 Ford Escape wiring harness? -- posted image.

Hope it helps,

Mike

Back to Top
