Rob , this amp has built in active crossovers. You do not need passive crossovers in any case. Now here is where the problem lies. This amp is a 4 channel that has hp on the front and lp on the rear. If you want to hook your 2 4 ohm subs up to this amp and run the amp in the bridged mode, meaning 4 channels bridged into 2, this is where your problem is. I would not use the crossovers in the amp at all. Does the cd player you have use a sub preout and if so does that preout have a crossover included in it. A quick check of the cd players instuctions will tell all. If the cd player does not have this sub preout or crossover then it in your best interest to purchase an active crossover of some type. You will want one that is called a 2 way crossover, some may include a line driver as well. One that I will recommend is the Audio Control 2XS or the Caliber CX2R found on the same site under the equalizer section. This will make that amp behave like it should. An active crossover comes before amplification and splits the signal properly. This makes much greater use of your available amplifier power. Need more info, drop us a post, hope this helps.

Top Secret, I can tell you but then my wife will kill me.

robblackman

Member - Posts: 22

Joined: May 04, 2004

Location: United Kingdom

Posted: May 08, 2004 at 11:15 AM / IP Logged

do you know where i can find a easy to follow circuit drawing of the above as this the first time ive tried this

once again thanks in advance

rob

forbidden

Platinum - Posts: 5,352

Joined: November 01, 2003

Location: Alberta, Canada

Posted: May 08, 2004 at 1:13 PM / IP Logged

A diagram may be included with the crossover, buy that Caliber CX2R that I found on the site you listed and we can go from there. You will also need two short rca cable and 2 rca y splitters (maybe but have them just in case). They should be female to 2 male.

Top Secret, I can tell you but then my wife will kill me.

robblackman

Member - Posts: 22

Joined: May 04, 2004

Location: United Kingdom

Posted: May 14, 2004 at 1:34 PM / IP Logged

i now have all the parts mentions above but the instrustions leave a lot to be desired as mentioned .

could you please help me find a simple drawing or web site

help

thanks in advance ]

rob

forbidden

Platinum - Posts: 5,352

Joined: November 01, 2003

Location: Alberta, Canada

Posted: May 14, 2004 at 4:48 PM / IP Logged

Rob, please post me your e-mail address.

Top Secret, I can tell you but then my wife will kill me.

forbidden

Platinum - Posts: 5,352

Joined: November 01, 2003

Location: Alberta, Canada

Posted: May 15, 2004 at 5:03 PM / IP Logged

Rob got your e-mail but my store is overflowing right now. I have to look after my paying customers first. I hope that one of the other fine members of the site can pick up where I left off. If I have a chance to post on this I will.

Top Secret, I can tell you but then my wife will kill me.

robblackman

Member - Posts: 22

Joined: May 04, 2004

Location: United Kingdom

Posted: May 16, 2004 at 6:22 AM / IP Logged

hi anyone

help

thanks in advance

stevdart

Platinum - Posts: 5,816

This member consistently provides reliable information

Joined: January 24, 2004

Location: Pennsylvania, United States

Posted: May 16, 2004 at 10:48 AM / IP Logged

Xover goes between head unit and amp, set it a low pass, set the amp both on full range. Adjust freq range on Xover and make both sides equal for your subs.

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.

customsuburb

Gold - Posts: 1,813

Joined: January 17, 2004

Location: United States

Posted: May 16, 2004 at 12:28 PM / IP Logged

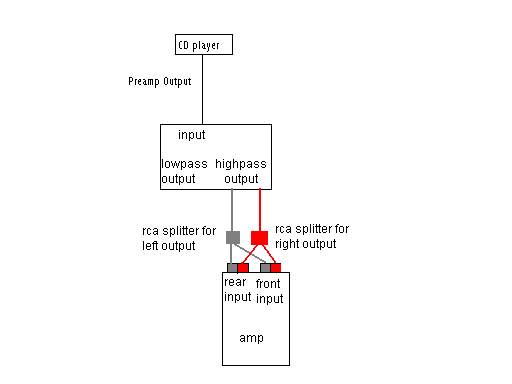

Send the sub output (or which ever one you are sending to your subs) from your cd player to the input on the crossover. Then split the sub output (or lowpass output) on the crossover with rca splitters and send the signal to the front and rear inputs on your amp. Then set the amp's built in front and rear crossovers to full range (or off). Then adjust the crossover frequency on the external crossover (I would play around with the crossover setting until you feel the sub is matched to your main speakers). Here is a diagram:

crossover - Page 2 -- posted image.

robblackman

Member - Posts: 22

Joined: May 04, 2004

Location: United Kingdom

Posted: May 17, 2004 at 8:22 AM / IP Logged

thanks for the above infomation ,one question why do you use the high pass output and not the lowpass ?
