99 civic alarm

Home / the12volt's Install Bay / Car Security and Convenience / 99 civic alarm (

Topic Closed)

Welcome Guest :)

Members

Next Page > < Prev Topic Next Topic >

kendrick20

Member - Posts: 23

Joined: October 19, 2002

Location: United States

Posted: July 15, 2004 at 12:23 AM / IP Logged

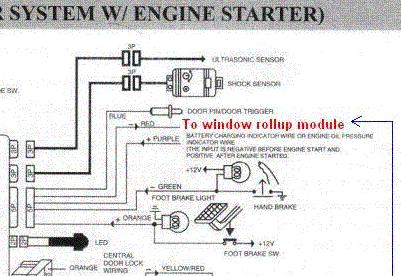

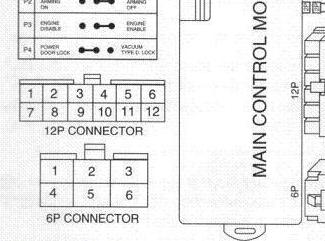

Hey guys, I need some help with this alarm, as you see the diagram, I need to know how to hook up the doors trigger. And I need some help on the part that i circled in red.

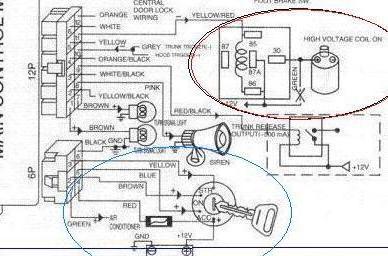

And on the part that i circled in blue; i connected the yellow to starter, blue to ignition 2, brown to ignition 1, red to accessary, and I need some help with the green.

thanks alot guys

kendrick

kendrick20

Member - Posts: 23

Joined: October 19, 2002

Location: United States

Posted: July 15, 2004 at 10:18 AM / IP Logged

99 civic sedan lx,

and I don't know what's the brand of my alarm, I bought it on ebay, http:///.com/ebaymotors/dll?ViewItem&category=33721&item=2478630584

you can take a look at the link, thanks for your help

kendrick

where is "battery charging indicator wire or engine oil pressure indicator wire" located? thnx

jaurora

Silver - Posts: 429

This member has made a donation to the12volt.com. Click here for more info.

Joined: January 16, 2004

Location: United States

Posted: July 15, 2004 at 12:18 PM / IP Logged

Honda

Civic

1996-2000

Remote Starter Wiring Colors and Notes
Function	Vehicle Color	Location
Start:	BLACK/ WHITE	IGNITION SWITCH HARNESS
Ignition #1:	BLACK / YELLOW	IGNITION SWITCH HARNESS
Ignition #2:	YELLOW	IGNITION SWITCH HARNESS
Ignition #3:	N/A
Accessory:	WHITE/ BLACK	IGNITION SWITCH HARNESS
Brake Light:	GREEN / WHITE (+)	AT SWITCH ABOVE BRAKE PEDAL
Tach Signal:	BLUE	AT TACH TEST CONNECTOR *
Parking Lights:	RED / BLACK (+)	7 PIN GRAY CONN. AT FUSE BLOCK
Headlights:	RED (+)	AT HEADLIGHT SWITCH
OEM Alarm Disarm:	N/A	IN SCHEMATICS
OEM Alarm Arm:	N/A	NO OEM ALARM PRESENT
Diesel Glow Plug:
Clutch Bypass Wire:
Notes:	* Tach Test Connector Is A 2 Pin WHITE Connector Located On Driver Rear Of Engine Compartment.

Honda

Civic

1996-2000

Alarm and Keyless Entry Wiring Colors and Notes
Function	Vehicle Color	Location
Constant +12 Volts:	WHITE	IGNITION SWITCH HARNESS **
Starter Kill:	BLACK/ WHITE	IGNITION SWITCH HARNESS
Ignition +12 Volts:	BLACK / YELLOW	IGNITION SWITCH HARNESS
Dome Lights/Superv:	L GREEN/ RED (-)	# PIN GRAY CONN. IN DR. KICK PANEL
OEM Horn:	BLUE (-)	STEERING COLUMN HARNESS
Power Lock:	GREEN / WHITE	# PIN BLUE CONNECTOR
Power Unlock:	GREEN/ ORANGE	TO LEFT OF FUSE BLOCK ***
Trunk Release:	N/A
Alarm Input Wire:	L GREEN/ RED (-)	# PIN GRAY CONN. IN DR. KICK PANEL
Notes:	WHITE Wire Changes To WHITE/ BLACK At Base Of Steering Column. * See Note #201 - Negative Pulse Door Lock Diagram.

MECP certified (If it really means anything)

Jeremy

kendrick20

Member - Posts: 23

Joined: October 19, 2002

Location: United States

Posted: July 16, 2004 at 11:08 AM / IP Logged

how come the alarm only work when the key is on, if i take the key out it wont work, help please!!!

jaurora

Silver - Posts: 429

Joined: January 16, 2004

Location: United States

Posted: July 16, 2004 at 11:59 AM / IP Logged

Is it an alarm with remote start or just the alarm?

MECP certified (If it really means anything)

Jeremy

kendrick20

Member - Posts: 23

Joined: October 19, 2002

Location: United States

Posted: July 18, 2004 at 12:27 AM / IP Logged

alarm with remote start, and this alarm come with engine start, keyless entry,

thanks for your help

kendrick

auex

Platinum - Posts: 5,041

Joined: December 23, 2002

Location: Arizona, United States

Posted: July 18, 2004 at 12:54 AM / IP Logged

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.

kendrick20

Member - Posts: 23

Joined: October 19, 2002

Location: United States

Posted: July 19, 2004 at 6:47 PM / IP Logged

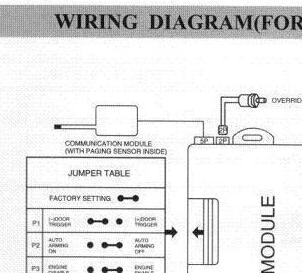

thanks for uploading the diagram, auex!

I need a major help....

what should i connect to the purple wire?

the part that i've circled in red, what is the "high voltage coil on"? or can i connect to different wire?

how come the power door lock wont work?

I'm sorry i asked so many questions, i'm just so frustrated, so guys please help me, thnks in advance

kendrick

kendrick20

Member - Posts: 23

Joined: October 19, 2002

Location: United States

Posted: August 09, 2004 at 1:17 AM / IP Logged

What's 99 civic have the, "3 Wire Negative" or "3 wire Positive"?

i tried to hooked up my alarm but the power door lock wont work,

thanks for your help!

kendrick

draasch

Gold - Posts: 2,172

Joined: February 07, 2003

Location: Florida, United States

Posted: August 09, 2004 at 10:35 AM / IP Logged

should be neg.....if your alarm has - outputs, then you only have to hook up the lock and unlock wires...

Power Lock GREEN / WHITE 18 PIN GRAY CONN. IN DRIVER KICK

Power Unlock GREEN/ ORANGE PANEL AT DOOR LOCK MODULE ** #201

Good Luck

David

Ace Security

813-376-9778

Tampa

Donate to the 12volt
