99 oldsmobile alero door locks


Post ReplyPost New Topic
< Prev Topic Next Topic >
kruzin96ta
Member - Posts: 4
Member spacespace
Joined: December 21, 2002
Posted: December 23, 2004 at 8:01 PM / IP Logged
i was looking at the wiring diagram for a 1999 olds alero and it says to see note about the door lock and unlock wires and i dont see any notes on the page. can someone tell me what the notes are supposed to be and if there is anything else that might be handy to know about installing a remote start/keyless entry in a 99 alero.
thanks
trent
muaiad97
Copper - Posts: 207
Copper spacespace
Joined: April 08, 2003
Location: Canada
Posted: December 23, 2004 at 9:51 PM / IP Logged

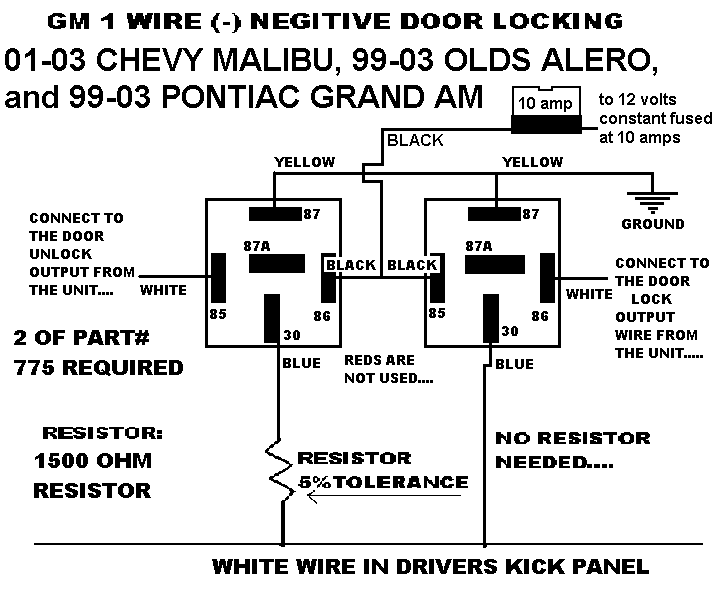

HI U NEED TO USE THIS DIAGRAM TO GET IT DON 99 oldsmobile alero door locks -- posted image.
KarTuneMan
Platinum - Posts: 7,056
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: December 14, 2004
Location: Isle Of Man
Posted: December 25, 2004 at 8:57 PM / IP Logged

Lock is a neg(-) pulse   Unlock is a neg(-) pulse thru 1.5k ohms of resistance

Use relays
