I wired it up per the diagram and it doesent work. It keeps the radio on until the door is opened, but then the radio will not turn back on. I understand the latching part of the system, but after it has grounded and turned off the radio, where does it get power to turn back on and latch. Please help a new guy to understand.
2intrigues
Member - Posts: 8
Member spacespace
Joined: December 12, 2004
Location: American Samoa
Posted: January 24, 2005 at 8:37 PM / IP Logged

I suppose this is the circuit you used...

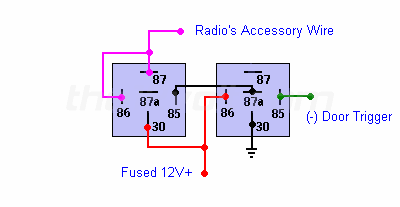

Radio on till door open -- posted image.

In this circuit, the radio will turn on whenever accessory power is restored to the radio (i.e., key is in accessory or run).

Note that the "Radio's Accessory Wire" signal is spliced into the existing power feed to the radio.  All this circuit does is tie constant +12 volts into the accessory power feed (via left relay contacts 30 and 87).  When you turn the key to off (and kill the accessory power), all accessories remain powered via the fused +12 volt source.

To answer your question:  Power to turn on the coil of the left relay is provided by accessory power to the radio (to coil terminal #86).  The other side of the left relay coil (terminal #85) is grounded through the normally-closed contacts of the right relay (terminals 87a and 30).

auex
Platinum - Posts: 5,041
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 23, 2002
Location: Arizona, United States
Posted: January 24, 2005 at 9:12 PM / IP Logged
Can't link to diagrams on your hard drive.
Radio on till door open -- posted image.
Certified Security Specialist
Always check info with a digital multimeter.
I promise to be good.
Tell Darwin I sent you.
I've been sick lately, sorry I won't be on much.
xmxer13
Member - Posts: 13
Member spacespace
Joined: October 03, 2003
Posted: January 25, 2005 at 9:48 AM / IP Logged
Got it now thanks, I was not splicing it to the acc. power feed, I was just hooking 86 and 87 from the left relay directly to the radios acc. wire.
oil
Member - Posts: 4
Member spacespace
Joined: January 09, 2005
Posted: January 30, 2005 at 8:07 AM / IP Logged

Can you use this system to keep the ignition power running therefore the engine keeps running till the door is opened without the key in??

Zilverado
Copper - Posts: 92
Copper spacespace
Joined: October 03, 2004
Posted: January 30, 2005 at 10:28 AM / IP Logged

auex wrote:
Can't link to diagrams on your hard drive.
Radio on till door open -- posted image.

This is a pretty cool feature I have seen on some newer vehicles. Can I add it to any of my vehicles? If so, some clarifications would be good....

  • Radio Accessories Wire: is the power feed to the radio good enough, or must it be the Accessories wire in the ignition harness?
  • Fused 12V+: Is this just any 12V power source. In other words, can I install a new power source? What size fuse shoud this be?
  • (-) Door Trigger: I assume this is the door switch in the jamb of the driver's door (that turns the interior lights on)?

My appologies if these are silly questions, I just want to do it right.

Thanks.

Zilverado,
Backyard Mechanic
1986 Chevy Truck & 1992 Nissan Pathfinder
iskidoo
Silver - Posts: 1,016
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: December 08, 2002
Location: Maine, United States
Posted: January 30, 2005 at 12:14 PM / IP Logged
oil wrote:

Can you use this system to keep the ignition power running therefore the engine keeps running till the door is opened without the key in??

oil, just hook the wire from the relay that says "Radio Accessories Wire" to your Ignition wire instead. That will keep the Ignition on after you remove the key until the door is opened.
Hoptup32
Copper - Posts: 87
Copper spacespace
Joined: December 25, 2004
Location: United States
Posted: January 30, 2005 at 1:49 PM / IP Logged

Zilverado,

Power feed to the radio is fine.

Fused 12V+ can be any constant 12V source thats not controlled by the igniion switch. Use a fuse of the same size as installed in the fuse panel for the radio circuit.

Verify that your door trigger is (-), if so, just tap into it at the most convenient place in relation to where you place the relays.

Zilverado
Copper - Posts: 92
Copper spacespace
Joined: October 03, 2004
Posted: January 30, 2005 at 8:37 PM / IP Logged

Thanks Hpotup32.

I'll definitely keep this post for reference when I get around to doing this.

Z

Zilverado,
Backyard Mechanic
1986 Chevy Truck & 1992 Nissan Pathfinder
stackrat
Member - Posts: 5
Member spacespace
Joined: December 05, 2004
Location: United States
Posted: February 01, 2005 at 8:57 PM / IP Logged

2intrigues wrote:
Note that the "Radio's Accessory Wire" signal is spliced into the existing power feed to the radio.  All this circuit does is tie constant +12 volts into the accessory power feed (via left relay contacts 30 and 87).  When you turn the key to off (and kill the accessory power), all accessories remain powered via the fused +12 volt source.

You should put a diode behind where you tie into the radio power (i.e. between the fuse block and the splice)

This will prevent the other accessories from getting power, which is a good thing for two reasons:  1) You will not overload the wire/fuse by backfeeding power to ALL of the accessories through it; and 2) you will not be draining your battery down by running your A/C fan.


Sorry, you can NOT post a reply.
