99 honda odyssey power sliding door


Post ReplyPost New Topic
< Prev Topic Next Topic >
ky1960
Member - Posts: 17
Member spacespace
Joined: May 22, 2004
Location: United States
Posted: March 07, 2005 at 5:06 PM / IP Logged
hello everyone ! Have any luck on 99 honda odyssey power sliding door with 560xv and also need rear defogger wire color thanks in advance.
techker
Copper - Posts: 70
Copper spacespace
Joined: April 24, 2002
Location: Canada
Posted: March 13, 2005 at 11:37 AM / IP Logged
12 VOLTS      white      +      ignition harness
STARTER 1      BLACK/ white      +      ignition harness
IGNITION 1      BLACK / YELLOW      +      ignition harness
IGNITION 2      yellow      +      ignition harness
ACCESSORY 1      WHITE/ black      +      ignition harness

POWER LOCK      BLACK/ white      -      green 6-pin plug
     The plug is located at the bottom of the fuse box.
POWER UNLOCK      GREEN/ red      -      green 6-pin plug
     The plug is located at the bottom of the fuse box.
DOORLOCK MOTOR      WHITE/ red            green 10-pin plug
     The plug is located at the bottom of the fuse box.
DOOR UNLOCK MOTOR      lt. GREEN/ red            green 10-pin plug
     The plug is located at the bottom of the fuse box.
DISARM DEFEAT      lt. GREEN/ red            green 10-pin plug
     The plug is located at the bottom of the fuse box.

PARKLIGHTS POSITIVE      RED / black      +      10-pin plug
     The plug is located at the bottom of the fuse box.
HEADLIGHT      blue/red      -      steering column
BRAKE      WHITE/ black      +      brake pedal switch

DOOR PIN      BLACK/ white      -      domelight on/off switch
HOOD PIN      yellow/red      -      right of steering column
TRUNK PIN      tied in with door
DOMELIGHT SUPERVISION      lt. green      -      domelight on/off switch

TACH      blue            above the brake master
     In a 2-pin test connector.
VSS      blue/white            pcm
     The PCM is located in the center console. The speed sense is located in a 32-pin plug.

HORN      lt. GREEN/ blue      -      steering column
WIPER      blue and blue / YELLOW      -      steering column

RADIO 12V      WHITE/ blue      +      radio
RADIO GROUND      black      -      radio
RADIO SWITCH      WHITE/ red      +      radio
RADIO ILLUMINATION      RED / black      +      radio
LEFT FRONT SPEAKER      blu/grn - gry/blk            radio
RIGHT FRONT SPEAKER      RED / grn - brn/blk            radio
LEFT REAR SPEAKER      blu/yel - blu/grn/wht            radio
RIGHT REAR SPEAKER      RED / yel - brn/wht            radio
ITEM      NOTE     INFOTECH #
Immobilizer      Use DEI part number 555H or 555U.
i am waiting for the notes on the sliding doors
techker
techker
Copper - Posts: 70
Copper spacespace
Joined: April 24, 2002
Location: Canada
Posted: March 15, 2005 at 7:21 AM / IP Logged
here it is

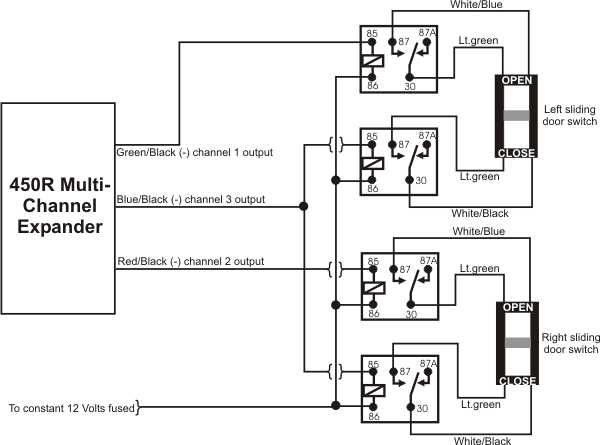

In a Honda Odyssey 1999 and up you will need to use a 450R channel expander to operate both sliding door. The 450R will bring you the extra channels required to operate left and/or right door for both condition open and close.
99 honda odyssey power sliding door -- posted image.
techker
