make neons wigwag with music?


Post ReplyPost New Topic
< Prev Topic Next Topic >
maximal
Member - Posts: 9
Member spacespace
Joined: August 10, 2003
Location: United States
Posted: June 17, 2005 at 3:20 AM / IP Logged

I posted this in the relay section last year, but it was never answered...

I need to replace a SPDT relay with something that is silent.

here's the background:

I have a Streetglow Music Interface and a lot of blue and turquoise neons.  The Music Interface has an on/off switch and a music/light switch.  When the switch is on "light," all the lights are on, constantly.  When switched to "music," it gives off a constant positive(+)  signal to the neons and the negative(-) signal switches on and off...on when there's a beat, and off when it's silent.

If you add a SPDT relay to the negative output of the MI, you can have the neons flash alternately.

make neons wigwag with music? -- posted image.

The problem is that the relay clicks loudly.  Not only that, it clicks once or twice a second.

"Thinkster" from the12volt.com drew this out for another member with the same idea.

make neons wigwag with music? -- posted image.

The problem is that it has 12v+ outputs.  I need 12v-.  I've been trying to email him for months but he's never gotten back to me.

I plan on using another switch to choose between having both the blue and turquoise neons on at the same time, or having them flash alternately.  I want to still be able to control the neons normally from the music interface.

Here's what I want to do...

make neons wigwag with music? -- posted image.

I changed the way the relay is set up...

make neons wigwag with music? -- posted image.
When the MI is set to flash to the music, and the blue neons flash, the turquoise one should not.  And vice versa.

Can somebody help me come up with a way to replace the relay?  I need something that is solid-state (silent) that will also handle about 6-10 amps.  SPDT solid-state relays are out of the question since they're ~$300

Theshadow27
Member - Posts: 38
Member spacespace
Joined: April 21, 2005
Location: Virginia, United States
Posted: June 17, 2005 at 10:02 AM / IP Logged
you can just switch the transistors around in the original circut...

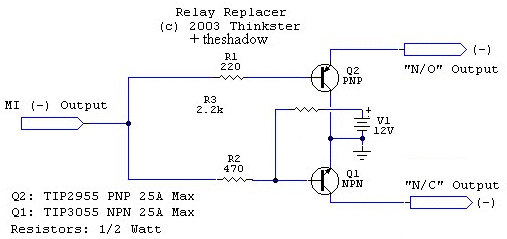

make neons wigwag with music? -- posted image.
maximal
Member - Posts: 9
Member spacespace
Joined: August 10, 2003
Location: United States
Posted: June 18, 2005 at 12:23 AM / IP Logged
are you serious?  i've been waiting over a year for a response from somebody, and all i had to do was switch the transistors!  unbelievable!  thanks theshadow
maximal
Member - Posts: 9
Member spacespace
Joined: August 10, 2003
Location: United States
Posted: June 22, 2005 at 3:29 AM / IP Logged
theshadow27, it didn't work.  make neons wigwag with music? -- posted image.  PM sent...
