Radar Sensor Wiring?

Home / the12volt's Install Bay / Car Security and Convenience / Radar Sensor Wiring? (

Topic Closed)

Welcome Guest :)

Members

Next Page > < Prev Topic Next Topic >

stereotornado

Member - Posts: 10

Joined: January 30, 2004

Location: Mexico

Posted: August 16, 2005 at 5:33 PM / IP Logged

l have an alarm with the buit in shock sensor and and want to install a radar sensor but l don't know how it has 3 wires red ( 12 v) black (ground) and blue ( negative output) were do l need to install de blue wire??

Fullthrottle

Copper - Posts: 101

Joined: December 03, 2002

Location: United States

Posted: August 16, 2005 at 5:52 PM / IP Logged

n the shock sensors instant trigger wire.

Make sure you diode isolate.

dare_ds69

Silver - Posts: 419

Joined: January 25, 2005

Location: New Jersey, United States

Posted: August 17, 2005 at 6:47 AM / IP Logged

what kind of alarm? because if the alarm has bilt in shock sensor , it should has a port on the side to conect an extra sensor.

how own your mind, control your life.

MECP certified. always use a DMM

stereotornado

Member - Posts: 10

Joined: January 30, 2004

Location: Mexico

Posted: August 23, 2005 at 4:55 PM / IP Logged

i'm installing a radar sensor but it doesn't sent good pulse to active the alarm what i need to do it's increase the pulse and it has to last the pulse at least 3 seg to active the alarm

how can i make it work?

stereotornado

Member - Posts: 10

Joined: January 30, 2004

Location: Mexico

Posted: August 23, 2005 at 5:04 PM / IP Logged

i'm installing a radar sensor but it doesn't sent good pulse to active the alarm what i need to do it's increase the pulse and it has to last the pulse at least 3 seg to active the alarm

how can i make it work?

stereotornado

Member - Posts: 10

Joined: January 30, 2004

Location: Mexico

Posted: August 24, 2005 at 12:50 AM / IP Logged

i need to increase the pulse and it need to last 3 seconds at least how can i do it, does anybody know

stereotornado

Member - Posts: 10

Joined: January 30, 2004

Location: Mexico

Posted: August 24, 2005 at 12:55 AM / IP Logged

i need to increase the negative pulse and it haas to last at least 3 seconds to active a radar sensor

how can i do it.

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

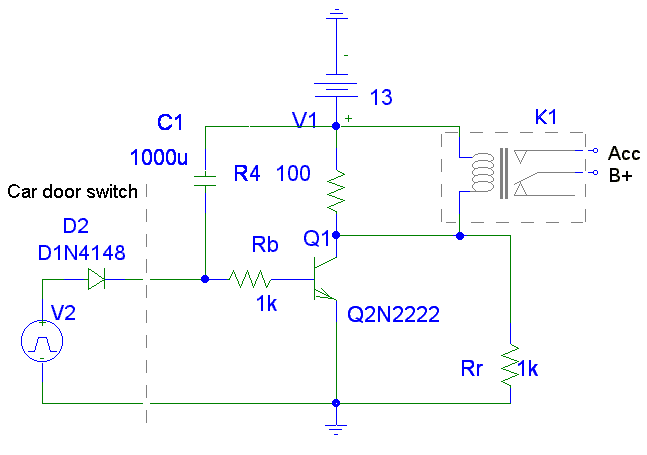

Posted: August 27, 2005 at 12:10 AM / IP Logged

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

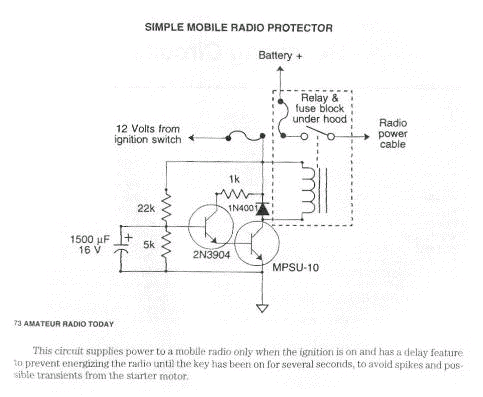

Posted: August 27, 2005 at 12:13 AM / IP Logged

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

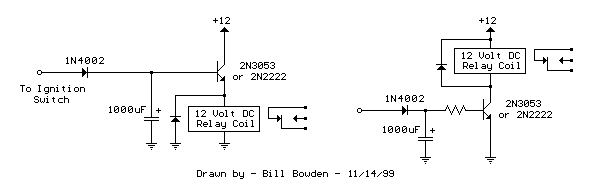

Posted: August 27, 2005 at 12:15 AM / IP Logged

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !
