how would this sound


Post ReplyPost New Topic
< Prev Topic Next Topic >
Stripes26051
Member - Posts: 36
Member spacespace
Joined: December 29, 2004
Location: United States
Posted: October 13, 2005 at 1:05 PM / IP Logged

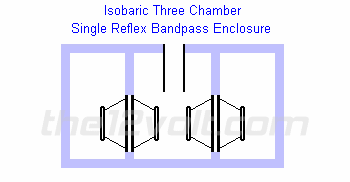

how would this sound -- posted image.
this set up doesnt make sense to me i've never seen subs face to face, it doesnt seem like it would get much bass out of it
89 honda crx 1 15" Power HX2 jblbp1200.1 rockford coaxials 4 channel comin soon
Blowntweeters
Silver - Posts: 650
Silver spacespace
Joined: June 03, 2005
Location: Nevada, United States
Posted: October 13, 2005 at 1:16 PM / IP Logged
that would not work well. it looks to me that 2 subs will be totally sealed. i woyld think those voice coils would get way to hot.
1974 ford pinto 4 15" punch Z power punch bd 1001 pioneer DEH-6700
DYohn
Moderator - Posts: 10,741
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spacespace
Joined: April 22, 2003
Location: Arizona, United States
Posted: October 13, 2005 at 2:45 PM / IP Logged

Woofers "face to face" is called isobaric loading.  ISO loading creates a system with 1/2 the required Vb of one woofer.  The configuration shown would create a high-output SPL system.  No, the VCs would not get too hot.  It's no different than standard sealed mounting.

Support the12volt.com
schmoo
Copper - Posts: 62
Copper spacespace
Joined: April 21, 2005
Location: Canada
Posted: October 13, 2005 at 6:09 PM / IP Logged
isobaric, also known as a "push-pull" system is great for being very controlled.  All you have to do is wire them out of phase.  They will take alot of power and keep the make up stable.
a true canadian eh!
blackmica3
Copper - Posts: 128
Copper spacespace
Joined: August 07, 2005
Location: United States
Posted: October 13, 2005 at 7:33 PM / IP Logged
Man, that takes me back. I remember building that exact enclosure for 4-10" Petra Prowlers back in the day.
Blowntweeters
Silver - Posts: 650
Silver spacespace
Joined: June 03, 2005
Location: Nevada, United States
Posted: October 14, 2005 at 10:34 AM / IP Logged
DYohn wrote:

Woofers "face to face" is called isobaric loading.  ISO loading creates a system with 1/2 the required Vb of one woofer.  The configuration shown would create a high-output SPL system.  No, the VCs would not get too hot.  It's no different than standard sealed mounting.

DYohn thanks thats good to know. i think a might build a enclosure like that for my next setup.
1974 ford pinto 4 15" punch Z power punch bd 1001 pioneer DEH-6700
fingaz22
Silver - Posts: 410
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: March 11, 2005
Location: United States
Posted: October 14, 2005 at 12:10 PM / IP Logged

great info on this subject and would like to add something to help stripes26051 understand it a little better. when this is set up for push and pull one woofer pushes and one pulles just as described but when you through the woofers out of phase (wiring them) to create the push and pull effect . in this app. you need to make sure the other set of woofers are in the same operation as the oposing ones. or they will cancel each other out.

-    /   +    /    -    /     +

+    /    -     /    +    /     -

each column repersents a woofer.

JUST ONE MORE AMP!!!
hu,alpine cva 1005/dva 5205
sound processor,symmetry(first one).
sub amp,power 1000 the terminator.(1992).
subs,spl comp dual 1 ohms.
punch 150hd on a 10" ev.
alotofhighs
rottenbelly
Copper - Posts: 99
Copper spacespace
Joined: July 29, 2005
Location: United States
Posted: October 16, 2005 at 8:21 PM / IP Logged

One of the hardest hitting systems i have heard with 10s.had four blaupunk 10s set up like that in a porsche way back when isobaric enclosures first came on the scene. But it has to be built perfect or it sound like junk.

rottenbellys 05 crew cab colorado.Pioneer dehp 880prs, kenwood excelon in all 4 doors. Bazooka 500 mono Jl 10w3 in coustom center console box.
