Volume controled Relay

Home / the12volt's Install Bay / Relays / Volume controled Relay (

Topic Closed)

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

fozzz

Member - Posts: 10

Joined: October 30, 2005

Location: Canada

Posted: December 21, 2005 at 7:06 PM / IP Logged

Is it possible to have a Relay switch on at a particular volume level? What I mean to say is, could I hook up a Relay to an RCA cable and have it switch on at a certin volume level? So at a low volume the Relay would be closed, but at a higher volume level it would open.

Can this be done?

Back to Top

fozzz

Member - Posts: 10

Joined: October 30, 2005

Location: Canada

Posted: December 28, 2005 at 9:53 PM / IP Logged

anyone? There must be a way to do it. I'm trying a few things so will see.

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

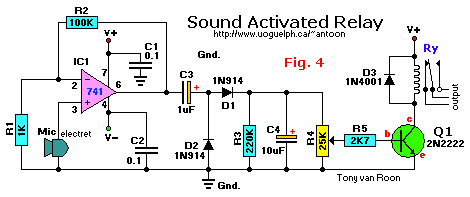

Posted: December 29, 2005 at 7:39 PM / IP Logged

Want More??

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

Search for other posts by hotwaterwizard

GReddyboy

Member - Posts: 48

Joined: July 24, 2002

Location: United States

Posted: January 04, 2006 at 1:40 AM / IP Logged

sorry off topic but hotwaterwizard would you happen to have any diagrams to make a relay pulse shorter? Please visit link here link

thanks

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: January 14, 2006 at 7:15 PM / IP Logged

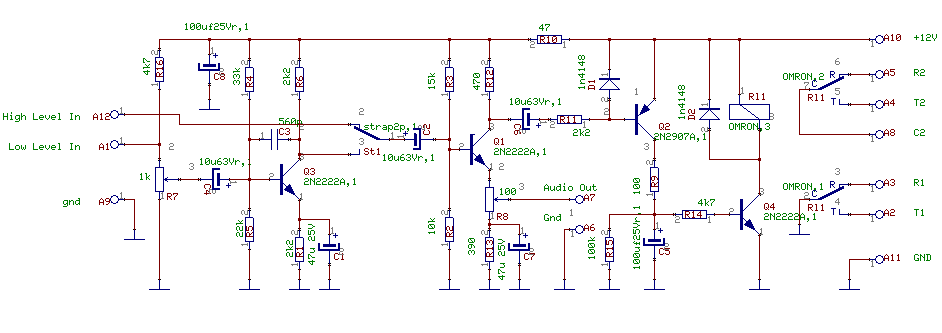

Volume controled Relay -- posted image.

Try this GReddyboy.

Hook your output on Switched 12v+ wire.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

Sorry, you can NOT post a reply.
This topic is closed.
