Relay for siren on police car


Post ReplyPost New Topic
< Prev Topic Next Topic >
kc5niy
Member - Posts: 3
Member spacespace
Joined: April 06, 2004
Location: United States
Posted: January 25, 2006 at 3:45 PM / IP Logged

I am installing a video camera (Watchguard) in a police car and I am needing a 12 volt (+) input off the siren speaker for a siren sensor. The speaker output wires show a 35 volt AC current. Any ideas how to apply a relay to the 35 volts AC so I can get a 12 volt (+) feed to one of the sensors in the camera. I am trying not to have to go inside the siren controler itself to get a 12 volt (+) feed when the siren is activated.

Thanks for any help.

Bobby

leeso20@wmconnect.com

kc5niy
firstrax
Copper - Posts: 113
Copper spacespace
Joined: January 18, 2006
Posted: January 25, 2006 at 6:10 PM / IP Logged
I have the answer in my notes some where. I have had to do that a few times. I'll be back.
firstrax
Copper - Posts: 113
Copper spacespace
Joined: January 18, 2006
Posted: January 25, 2006 at 7:11 PM / IP Logged

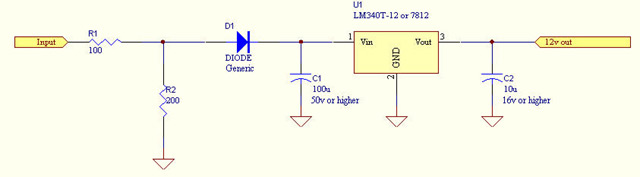

R1 and R2 drop the input voltage since the regulators max is 35.

D1 stops the sirens negative phase from bleeding C1

C1 keeps the regulator alive during the negative phase. You made need to adjust it up to maintain a flat output.

U1 is a standard 12 volt linear regulator

Relay for siren on police car - Last Post -- posted image.

kc5niy
Member - Posts: 3
Member spacespace
Joined: April 06, 2004
Location: United States
Posted: January 29, 2006 at 12:02 PM / IP Logged

Thanks for the diagram. I am getting the stuff together now.

B. Bean

kc5niy
maxima lover
Member - Posts: 8
Member spacespace
Joined: October 07, 2005
Location: United States
Posted: January 31, 2006 at 11:22 AM / IP Logged
Wouldn't you want it to turn on with the lights instead of the siren?
ff-mike
Copper - Posts: 199
Copper spacespace
Joined: November 15, 2004
Location: United States
Posted: February 01, 2006 at 12:55 PM / IP Logged
MaximaLover wrote:
Wouldn't you want it to turn on with the lights instead of the siren?
Agreed. Sirens are turned off when on-scene, so your camera would stop gathering evidence when the officer pulled over. As the siren is not blaring when the drunk stumbles over himself, that evidence will not be gathered.
firstrax
Copper - Posts: 113
Copper spacespace
Joined: January 18, 2006
Posted: February 01, 2006 at 7:52 PM / IP Logged

maxima lover wrote:
Wouldn't you want it to turn on with the lights instead of the siren?

All of them do turn on with the lights.

The siren feed is most often used to put an icon on screen to indicate that the siren was active. Its a liability thing in case the cop t-bones someone going through intersection and the other driver claims did not here him coming. Or when a driver claims he didnt pull over becouse he didnt here the cop.

maxima lover
Member - Posts: 8
Member spacespace
Joined: October 07, 2005
Location: United States
Posted: February 01, 2006 at 8:14 PM / IP Logged
firstrax wrote:

maxima lover wrote:
Wouldn't you want it to turn on with the lights instead of the siren?

All of them do turn on with the lights.

The siren feed is most often used to put an icon on screen to indicate that the siren was active. Its a liability thing in case the cop t-bones someone going through intersection and the other driver claims did not here him coming. Or when a driver claims he didnt pull over becouse he didnt here the cop.

I was wondering if that's what it was for, but I don't think I have ever seen one that showed that the siren was active because it can be heard through the camera's mic. I guess if this one didn't have sound, it would be needed.
firstrax
Copper - Posts: 113
Copper spacespace
Joined: January 18, 2006
Posted: February 01, 2006 at 9:28 PM / IP Logged

maxima lover wrote:
I was wondering if that's what it was for, but I don't think I have ever seen one that showed that the siren was active because it can be heard through the camera's mic. I guess if this one didn't have sound, it would be needed.

The siren feature is rarely hooked up for the reason you stated and because its a major pain. Out of 8000 vehicles I've only done about 10 with siren.

john9912
Member - Posts: 12
Member spacespace
Joined: May 21, 2004
Location: United States
Posted: March 31, 2006 at 1:32 PM / IP Logged

Most video camera systems have a siren interface option board. It taps in to the siren speaker wire with a small transistor and sends a signal back to a sensing wire in the camera system harness. This usually records a "S" on the display to show the siren was sounding at that time.

John Liguori

Emergency Vehicle Technician
Major Automotive
Kenvil, NJ
www.spectrum2way.com
