Mja1962

Copper - Posts: 119

Joined: September 14, 2004

Location: United States

Posted: April 08, 2006 at 7:26 AM / IP Logged

Hello,

Does anyone have a wiring guide for a 2003 Lexus GX470? I will be installing a backup cam, and would like some assistance in locating the backup light wire.

Thank you for any assistance,

Michael

Back to Top

Bnluis

Silver - Posts: 578

Joined: December 24, 2002

Location: New York, United States

Posted: April 08, 2006 at 9:46 AM / IP Logged

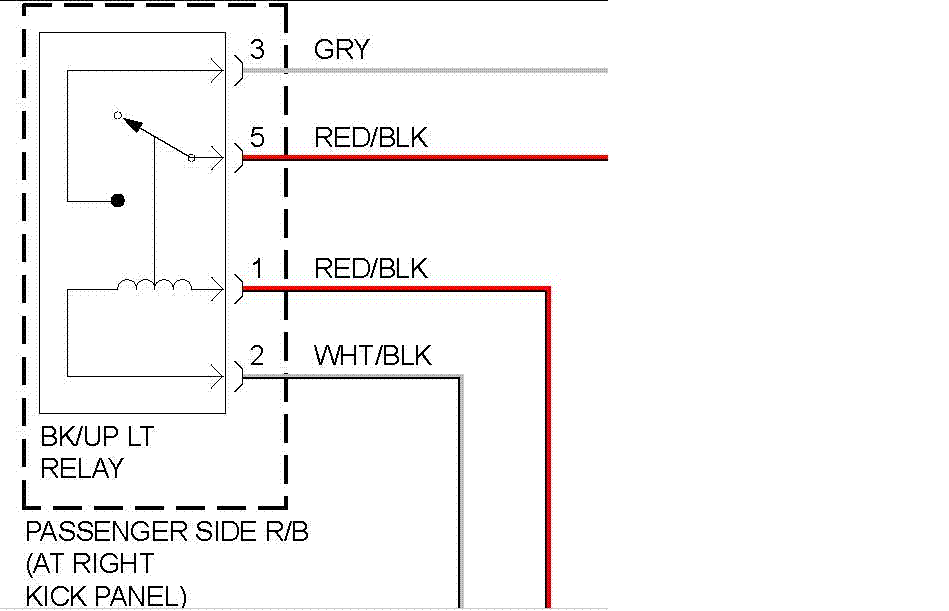

RED / black at back up relay by passengers kick panel, you will hear a relay click when car is set to reverse.

2003 Lexus GX 470 Wiring -- posted image.

Luis

Sound Waves

Is up to the installer to test all wires with a DMM whenever possible.

Back to Top

Mja1962

Copper - Posts: 119

Joined: September 14, 2004

Location: United States

Posted: April 08, 2006 at 9:47 AM / IP Logged

Luis,

Thank you for the prompt reply! I really appreciate your help.

Michael

Back to Top

Mja1962

Copper - Posts: 119

Joined: September 14, 2004

Location: United States

Posted: April 08, 2006 at 9:50 AM / IP Logged

Oops, I forgot to ask...do you have any tips on removing the radio in this vehicle? (I will be helping my brother do this over the weekend, and I haven't even seen the interior yet)

Thanks again,

Michael

Back to Top

Bnluis

Silver - Posts: 578

Joined: December 24, 2002

Location: New York, United States

Posted: April 08, 2006 at 10:03 AM / IP Logged

you lucky day here is the instructions for an 05 same as 03 see all the pctures,

http://www.emba42.com/lexus/

Luis

Sound Waves

Is up to the installer to test all wires with a DMM whenever possible.

Back to Top

Mja1962

Copper - Posts: 119

Joined: September 14, 2004

Location: United States

Posted: April 08, 2006 at 10:31 AM / IP Logged

Excellent! Thanks again. =)

Michael

Back to Top

Bnluis

Silver - Posts: 578

Joined: December 24, 2002

Location: New York, United States

Posted: April 08, 2006 at 10:35 AM / IP Logged

no problem, glad to help

Luis

Sound Waves

Is up to the installer to test all wires with a DMM whenever possible.

Back to Top

Mja1962

Copper - Posts: 119

Joined: September 14, 2004

Location: United States

Posted: April 08, 2006 at 8:52 PM / IP Logged

Hello again...now I've got another question:

Due to a change in plans, my brother is working on the car solo, and he can't seem to figure out which wires to cut in order to install the NAV-TV video unit. Apparently, the directions are somewhat vague. can anybody help with this?

Thank you,

Michael

Back to Top
