demeanor

Copper - Posts: 81

Joined: December 10, 2002

Location: United States

Posted: January 14, 2003 at 9:15 PM / IP Logged

Okay, I have a SPDT switch, and in position 1 I need it to turn relay A on. I have relays A, B, C that need powered on 2nd position of the switch (on-off-on). How do I isolate relay A from both B and C in position 1 when in position 2 they all have the same ground?

I know i should use a diode but i'm kinda hazy as to where, and the way the diode will face. I only need relay A to be energized or grounded in position 1 but i need relays A, B, and C to be energized in position 2 of the switch.

Your help and expertise are greatly appreciated!

Thanks in advance for your help.

It's better to ask a "STUPID" question...than to know a "STUPID" answer. :-)

the12volt

Administrator - Posts: 3,955

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 07, 2002

Location: Louisiana, United States

Posted: January 14, 2003 at 9:34 PM / IP Logged

If you are supplying ground to each relay from the switch, connect the output of the switch just for relay A and the anode side of a 1amp diode to the coil of relay A. Connect the cathode side (side with stripe) of the diode to the output of the switch that also connects to the coils of relays B and C. If you need a diagram, just let me know.

demeanor

Copper - Posts: 81

Joined: December 10, 2002

Location: United States

Posted: January 14, 2003 at 9:45 PM / IP Logged

pleazzze...send me a diagram if you don't mind, thanks. relay? -- posted image.

It's better to ask a "STUPID" question...than to know a "STUPID" answer. :-)

the12volt

Administrator - Posts: 3,955

Joined: March 07, 2002

Location: Louisiana, United States

Posted: January 14, 2003 at 10:10 PM / IP Logged

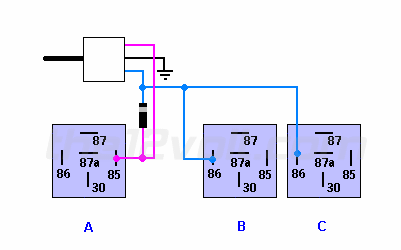

Here ya go.

relay? -- posted image.

demeanor

Copper - Posts: 81

Joined: December 10, 2002

Location: United States

Posted: January 14, 2003 at 10:13 PM / IP Logged

THANKS !!!! relay? -- posted image.

is there a program you use to be able to draw diagrams like this one?? is it available?

It's better to ask a "STUPID" question...than to know a "STUPID" answer. :-)

the12volt

Administrator - Posts: 3,955

Joined: March 07, 2002

Location: Louisiana, United States

Posted: January 14, 2003 at 10:29 PM / IP Logged

You're welcome. Believe it or not, I used MS Paint to draw it. :) ....o0(Start>Programs>Accessories>Paint)
