I have a 1994 magna wagon with central locking. I have bought a keyless system and am trying to work out how to connect it to my magna. I can make sense of the wiring diagram on the keyless but am not sure how to incorporate it to the magna wiring. I do have a wiring diagram of the magna but still cannot work out where to connect. Can anybody please help. If you need to send me a wiring diagram my email address is handy0st@bigpond.net.au Thanks in advance

Handyost

Back to Top

KarTuneMan

Platinum - Posts: 7,056

This member has made a donation to the12volt.com. Click here for more info.

This member consistently provides reliable information

Joined: December 14, 2004

Location: Isle Of Man

Posted: September 06, 2006 at 6:02 PM / IP Logged

What is a magna wagon....we ain't got one of those in the states.....who makes it?

Back to Top

handyost

Member - Posts: 7

Joined: August 22, 2006

Location: Australia

Posted: September 06, 2006 at 6:12 PM / IP Logged

Hi. Its a mitsubishi.

Handyost

Back to Top

KarTuneMan

Platinum - Posts: 7,056

Joined: December 14, 2004

Location: Isle Of Man

Posted: September 06, 2006 at 6:28 PM / IP Logged

Would that be like a Diamante? The door locks on the D are NEG(-) in the drivers kick RED / BLUE is lock, RED / BLK is unlock.

What type of keyless. ?

Back to Top

handyost

Member - Posts: 7

Joined: August 22, 2006

Location: Australia

Posted: September 06, 2006 at 7:12 PM / IP Logged

Hi again

Yes i think it is the diamante. I will check the wiring diagram later today when i get back. And I will also find out the brand name of the keyless remote. Regards

Henry

Handyost

Back to Top

handyost

Member - Posts: 7

Joined: August 22, 2006

Location: Australia

Posted: September 06, 2006 at 11:40 PM / IP Logged

Hi The keyless system is a TIELOADA. I have the diagram for it but i dont know how to show you on here. I also have scanned the diagram for the Mitsubishi hoping that you could show me where to connect.

Regards

Henry

Handyost

Back to Top

handyost

Member - Posts: 7

Joined: August 22, 2006

Location: Australia

Posted: September 07, 2006 at 3:45 PM / IP Logged

Here is the magna diagram. KarTuneMan. I managed to scan it and reduce the size to fit on this upload

Hope you can help me Regards

Henry

1994 Magna Wagon Central Locking -- posted image.

Handyost

Back to Top

handyost

Member - Posts: 7

Joined: August 22, 2006

Location: Australia

Posted: September 07, 2006 at 3:54 PM / IP Logged

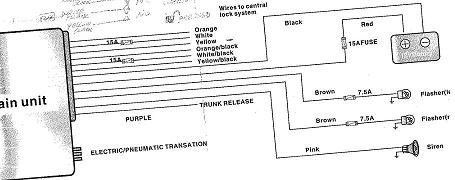

THis is the Tieloada keyless remote. I have worked out the switching on this but do not know how to connect it to the magna wiring,

1994 Magna Wagon Central Locking -- posted image.

Handyost

Back to Top
