i need a relay switch, constant 12 volt pos power, constant 12 volt neg, and an on/off switch, now, when you turn the switch on, it goes out an output number one, then turn it off the turn it on again, i need it to go to output number two, then one then two so on and so on, what do i need?
ill-logix
Member - Posts: 39
Member spacespace
Joined: April 07, 2006
Location: United States
Posted: December 06, 2006 at 1:22 PM / IP Logged

You could wire the switch to the clock input of a flip flop.  and then on the compliment side of the flip flop wire that to an n channel transistor and use that to drive a relay.  You wouldnt need two relays, you could use the normally open/closed contacts.

Unless you want relay 1 to turn on when you turn the switch on, turn the switch off and relay 1 turns off.  hit the switch againa and relay 2 turns on turn it off and relay 2 turns off...  If that is what you want then you will need a bit more.

Big Dog
Gold - Posts: 1,265
Gold spaceThis member consistently provides reliable informationspace
Joined: May 02, 2002
Location: Quebec, Canada
Posted: December 06, 2006 at 1:41 PM / IP Logged

Here's what I've done in the past which will work for you using good 'ol relays:

smart relay -- posted image.

Prepare your future. It wasn't the lack of stones that killed the stone age.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: December 14, 2006 at 11:25 PM / IP Logged

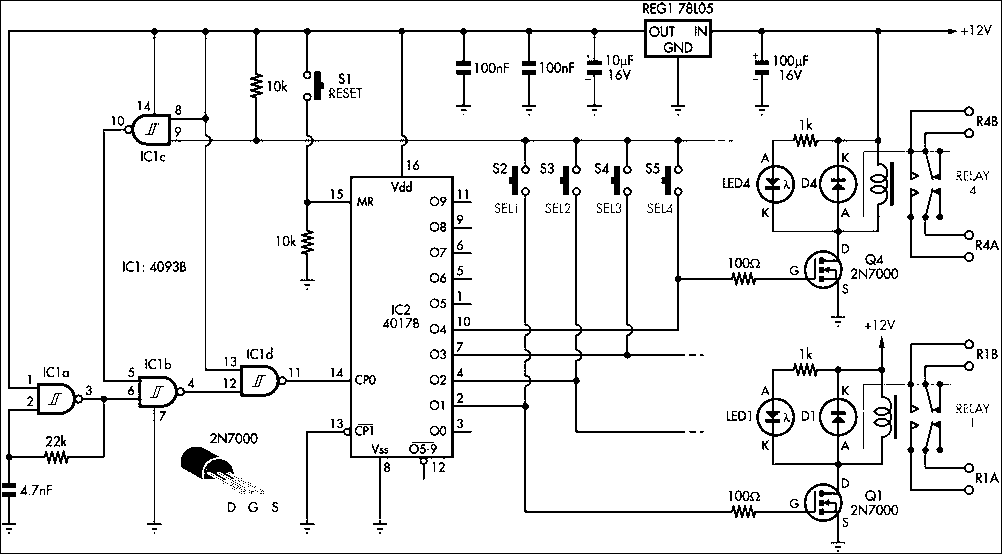

I see you need a Display controller for picking which stereo to play. With this circuit you can go up to 10 Relays Only a few are shown to make the circuit easy to follow. The other relays need the same patern repeated.

smart relay -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
ill-logix
Member - Posts: 39
Member spacespace
Joined: April 07, 2006
Location: United States
Posted: December 15, 2006 at 11:04 AM / IP Logged

I have a programmable relay controller you could do this with. ill-logix.com
