07 Dodge Nitro Alarm/Remote Start/Stereo Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
azn_fcuk
Copper - Posts: 104
Copper spacespace
Joined: November 09, 2005
Location: Canada
Posted: December 06, 2006 at 3:28 PM / IP Logged

Need to wiring schematic please :)

also has anyone done one of these yet?  much difficulty with this vehcile?

Thank-you :)

Twelvoltz
Platinum - Posts: 2,384
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: March 24, 2005
Location: New Jersey, United States
Posted: December 06, 2006 at 8:27 PM / IP Logged
This is what Audiovox lists:

          #510961: 2007 DODGE NITRO 4DR SUV WITH 2.8L T/D ENGINE AND STANDARD AUDIO SYSTEM
     Audio/Mobile Video
     WIRE          COLOR          POLARITY          LOCATION
     Please select another category
     Security
     WIRE          COLOR          POLARITY          LOCATION
     Battery          RED 14GAUGE          (+)          BEHIND DRIVER SIDE KICK PANEL. (SEE NOTE)
               14 GAUGE WIRE, AT MAIN HARNESS EXITING THROUGH FIREWALL. BE SURE TO SEEK OUT THE ONLY ONE OF THIS SIZE. SEVERAL OTHER WIRES EXIST BUT ARE SMALER GAUGE 12V (+).
     Ignition 1          PINK/WHITE 18 GAUGE          (+)          BEHIND DRIVER SIDE KICK PANEL OR IGNITION HARNESS
     Starter 1          VIOLET/BROWN 18GAUGE          (-)          IGNITION
     All Door Trigger          USE LATCH WIRES
     Domelight Super          YELLOW          (+)          AT LIGHT UNDER DASH
     LF Latch          VIOLET          (-)          BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 18 GAUGE
     RF Latch          VIOLET/WHITE          (-)          BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 18 GAUGE
     LR Latch          VIOLET/GRAY          (-)          BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 18 GAUGE
     RR Latch          VIOLET / YELLOW          (-)          BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 18 GAUGE
     Trunk Trigger          VIOLET/ORANGE          (-)          BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 18 GAUGE
     Parking Lights          WHITE/ VIOLET          (+)          BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 18 GAUGE
     Convenience
     WIRE          COLOR          POLARITY          LOCATION
     Please select another category
     Remote Start
     WIRE          COLOR          POLARITY          LOCATION
     Battery          RED 14GAUGE          (+)          BEHIND DRIVER SIDE KICK PANEL. (SEE NOTE)
               14 GAUGE WIRE, AT MAIN HARNESS EXITING THROUGH FIREWALL. BE SURE TO SEEK OUT THE ONLY ONE OF THIS SIZE. SEVERAL OTHER WIRES EXIST BUT ARE SMALER GAUGE 12V (+).
     Ignition 1          PINK/WHITE 18 GAUGE          (+)          BEHIND DRIVER SIDE KICK PANEL OR IGNITION HARNESS
     Accessory 1          PINK / YELLOW          (+)          R.A.P. 14 GAUGE, BEHIND DRIVER SIDE KICK PANEL OR IN DRIVER DOOR HARNESS
     Starter 1          VIOLET/BROWN 18GAUGE          (-)          IGNITION
     Parking Lights          WHITE/ VIOLET          (+)          BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 18 GAUGE
     Brake Lights          WHITE/ GREEN          (+)          AT BRAKE SWITCH
     Horn          GREEN/ VIOLET          (-)          18 GAUGE AT STEERING COLUMN HARNESS
     Modules
     WIRE          LOCATION
     Please select another category
     Doorlocks/Windows
     WIRE          COLOR          POLARITY          LOCATION
     Power Unlock          VIOLET/GREEN          (-)          DR. DOOR HARNESS OR BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 18 GAUGE
               NEGATIVE THRU A 100 OHM RESISTOR
     PowerLock          VIOLET/GREEN          (-)          SAME WIRE
               NEGATIVE THRU A 330 OHM RESISTOR
     Driver Mtr Unlock          TAN/LT.GREEN          (+)          AT DRIVER DOOR HARNESS
     Driver Mtr Lock          & ALL DOOR. TAN/WHITE          (+)          AT DRIVER DOOR HARNESS
     Pas Mtr Unlock          TAN/BROWN OR TAN ORANGE          (+)          BEHIND DRIVER SIDE KICK PANEL AT MAIN HARNESS, 1 GAUGE

     Note: Audiovox makes no representation or warranty with respect to the above information including its accuracy, completeness, or its freedom from third parties' proprietary rights. Audiovox disclaims all liability or responsibility for errors or omissions therein or any decision made by the recipient in reliance thereon. The installer must verify any circuitry with the proper test equipment prior to installation.

azn_fcuk
Copper - Posts: 104
Copper spacespace
Joined: November 09, 2005
Location: Canada
Posted: December 07, 2006 at 12:11 PM / IP Logged

for some reason i dont think that this wiring diagram is correct

can anyone verify this diagram?

thanks

azn_fcuk
Copper - Posts: 104
Copper spacespace
Joined: November 09, 2005
Location: Canada
Posted: December 07, 2006 at 3:24 PM / IP Logged

Accessory 1          PINK / YELLOW          (+)          R.A.P. 14 GAUGE, BEHIND DRIVER SIDE KICK PANEL OR IN DRIVER DOOR HARNESS

Will i run into problems with  the Retained Accessory Power  after the Remote Start Shuts down? or will there be any issues

pdumeg
Member - Posts: 4
Member spacespace
Joined: April 21, 2004
Location: United States
Posted: December 19, 2006 at 9:21 PM / IP Logged
installer 15+ years car dealership level /yes done 2 o7 nitros doorlocks are different no voliet/gr in kick .does not have factory security, if does have it vol/green will lock-ulock res. doides..woorking on one now that doesnot that is can-bus skeem module at coulum but bypass-kit doesnt work,,done all dodge line but this is trouble with controlling locks,,rem-you will not find any wire that shows any sign of some voltage coming out of door even went to boot to check ,,,if anywone has diff, info besides audiovox, will let you keep my1970 lt-1 corvette 370hp for weekend pleasure.only kidding!!! no really this is very valuble,,got to be somebody out there, lets see whos best
pdumeg
hotwiresaz
Member - Posts: 4
Member spacespace
Joined: May 11, 2005
Location: United States
Posted: February 16, 2007 at 10:28 AM / IP Logged
i used a can sl2 from fortin electronics and installationproducts.com , worked perfectly
platinumshift
Member - Posts: 15
Member spacespace
Joined: July 22, 2005
Location: Canada
Posted: February 16, 2007 at 6:41 PM / IP Logged
pdumeg wrote:
installer 15+ years car dealership level /yes done 2 o7 nitros doorlocks are different no voliet/gr in kick .does not have factory security, if does have it vol/green will lock-ulock res. doides..woorking on one now that doesnot that is can-bus skeem module at coulum but bypass-kit doesnt work,,done all dodge line but this is trouble with controlling locks,,rem-you will not find any wire that shows any sign of some voltage coming out of door even went to boot to check ,,,if anywone has diff, info besides audiovox, will let you keep my1970 lt-1 corvette 370hp for weekend pleasure.only kidding!!! no really this is very valuble,,got to be somebody out there, lets see whos best
Does anyone have any idea what he just said?
Im getting that they dont have a Violet/Green (Which is true) but have you found the correct wire?
xghost
Member - Posts: 34
Member spacespace
Joined: February 04, 2007
Location: Canada
Posted: February 17, 2007 at 7:12 PM / IP Logged

Im not sure

whitey
Member - Posts: 49
Member spacespace
Joined: October 03, 2003
Location: Canada
Posted: February 18, 2007 at 12:33 AM / IP Logged

I have done at least 6 of these this winter

+12  blue/red 10amp ignition harness

+ign       pink/white

starter -  violet/brown  five wire -180 ohm resistor

Acc/Disarm use ground out when runnin and a 9.1ohm resistor on the mux line

Park Lights+ WHITE/ dk green   DKP

Brake GREEN / WHITE DKP

lock lt GREEN/ dk green 1k

unlock ltGREEN/ dk green 185ohm

Visions Edmonton
Installation Manager, DLS
MECP Certified First Class
cutter1122
Copper - Posts: 103
Copper spacespace
Joined: January 16, 2005
Location: Canada
Posted: February 18, 2007 at 4:23 PM / IP Logged

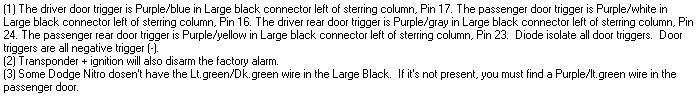

07 Dodge Nitro Alarm/Remote Start/Stereo Wiring -- posted image.

07 Dodge Nitro Alarm/Remote Start/Stereo Wiring -- posted image.
