wire guage and amp capacity


Post ReplyPost New Topic
< Prev Topic Next Topic >
ravesrus19
Member - Posts: 24
Member spacespace
Joined: December 14, 2006
Location: Canada
Posted: December 22, 2006 at 12:36 AM / IP Logged

Ok i have recently purchased infinity kappas (100watt rms) that come with crossovers. The input wire guage as well as the output(to speakers) is 18g which has an ampacity of 5 amps.

These speakers at full load can draw between 8-9 amps (100watts/12volts)

I realize it is only 14 inches of wire to the iinput of crossover, by why not use the proper rated wire, especially when there is potential to over heat the wires?

could any one shed some light?

thnx

2005 Ford Ranger, 4 door , stx model
aznboi3644
Gold - Posts: 2,600
Gold spaceThis member consistently provides reliable informationspace
Joined: May 01, 2006
Location: United States
Posted: December 22, 2006 at 12:57 AM / IP Logged
What amp are you pushing them with???
I highly doubt the wire will fry from 100 watts...music is very dynamic so the possibility of seeing 100 watts for long periods isn't realistic... but there may be a problem if you play a continuous sine wave to the speakers at 100 true watts rms
haemphyst
Platinum - Posts: 5,054
Platinum spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spacespace
Joined: January 19, 2003
Location: Michigan, Bouvet Island
Posted: December 22, 2006 at 8:34 AM / IP Logged
Because you are not using 12 volts... Inside an amplifier is a power supply that steps the 12 volts to a higher voltage. Even stepping the voltage to 16 volts will reduce the current demand by 1/2. Also the output side is after the crossover, and the power is only 1/3 the input power on the tweeter leads and 2/3 on the woofer leads.
Don't worry about it... It's all good to go! Everything is perfectly safe!
It all reminds me of something that Molière once said to Guy de Maupassant at a café in Vienna: "That's nice. You should write it down."
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: December 22, 2006 at 4:52 PM / IP Logged

You can find current without first finding amplifier output voltage by using Ohm's Law I = SQR (P/R).  5 amps (100 watts into a 4 ohm impedance).

You'll be looking for 20 AC volts output.  E = sq rt (P x R), so if power is 100 watts and impedance is 4 ohms the math says the output is 20 volts.  Double check amperage by using I = P/E which confirms 5 amps (and that's maximum, as stated above, for very short durations if it ever gets there to begin with).

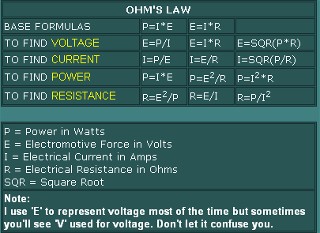

wire guage and amp capacity -- posted image.

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
ravesrus19
Member - Posts: 24
Member spacespace
Joined: December 14, 2006
Location: Canada
Posted: December 23, 2006 at 5:23 AM / IP Logged
yes but the speakers are 2 ohms, therefore capable of drawing 10 amps. (in theory i know)
2005 Ford Ranger, 4 door , stx model
ravesrus19
Member - Posts: 24
Member spacespace
Joined: December 14, 2006
Location: Canada
Posted: December 23, 2006 at 5:27 AM / IP Logged
sorry............7 amps
2005 Ford Ranger, 4 door , stx model
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: December 23, 2006 at 5:56 PM / IP Logged
Then you have all the information you need to make wiring changes as you see fit.
Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
