2001 Chevrolet Corvette Z06 Alarm/Remote Start Wiring Diagram


Post ReplyPost New Topic
< Prev Topic Next Topic >
nyrican
Member - Posts: 1
Member spacespace
Joined: February 16, 2007
Location: United States
Posted: February 16, 2007 at 11:45 PM / IP Logged

I need a wiring diagram for a 2001 Chevy  Z06 Corvette. Thanx in advance.

Too Easy
cutter1122
Copper - Posts: 103
Copper spacespace
Joined: January 16, 2005
Location: Canada
Posted: February 17, 2007 at 8:41 PM / IP Logged
+12 VoltsRedIgnition Harness
+

IgnitionPinkIgnition Harness
+

Ignition 2N/ANot available
N/A

AccessoryOrangeIgnition Harness
+

Accessory 2N/ANot available
N/A

StarterYellowIgnition Harness
+

Starter 2N/ANot available
N/A

TachometerPURPLE / WhiteCoil
AC

InjectorN/ANot available
N/A

Parking LightsBrownat headlight switch
+

BrakeswitchLight BlueBrake Switch
+

Clutch BypassN/ANot available
N/A

Parking BrakeN/ANot available
N/A

HoodpinN/ANot available
N/A

Glow PlugN/ANot available
N/A

LockRED / BlackInside Driver's Door
-

UnlockORANGE / BlackInside Driver's Door
-

Trunk ReleaseBlackTrunk release switch
+

ArmYellowDriver's kick panel
-

DisarmGreenInside Driver's Door
-

DoorpinWhiteBody Control Module
N/A

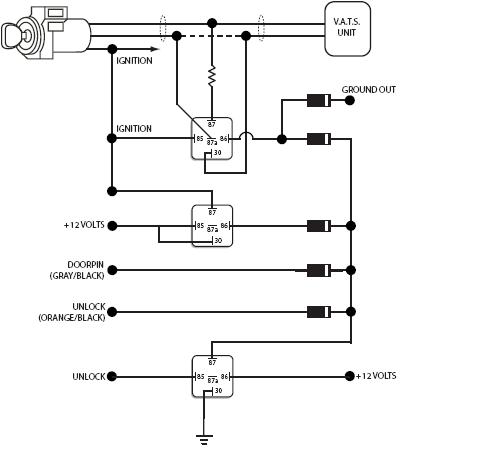

2001 Chevrolet Corvette Z06 Alarm/Remote Start Wiring Diagram -- posted image.
