Radio on until door open + trigger


Post ReplyPost New Topic
< Prev Topic Next Topic >
pcpackrat
Member - Posts: 5
Member spacespace
Joined: May 07, 2006
Location: United States
Posted: March 07, 2007 at 9:50 AM / IP Logged

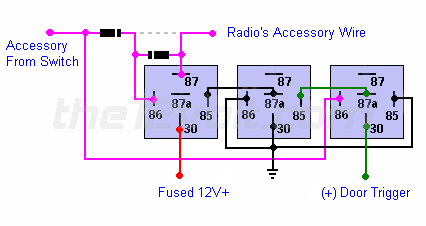

Not sure if this was posted but might be nice to have on the page for the Ford owners. This is a mod of the circuit to reflect + dorr triggers instead of -.
posted_image
Thanks,
Michael / PCPackrat
