I was tired of my stock chevy intake, and aftermarket parts are hard to come by for a 2 post throttle body so i made a new intake.

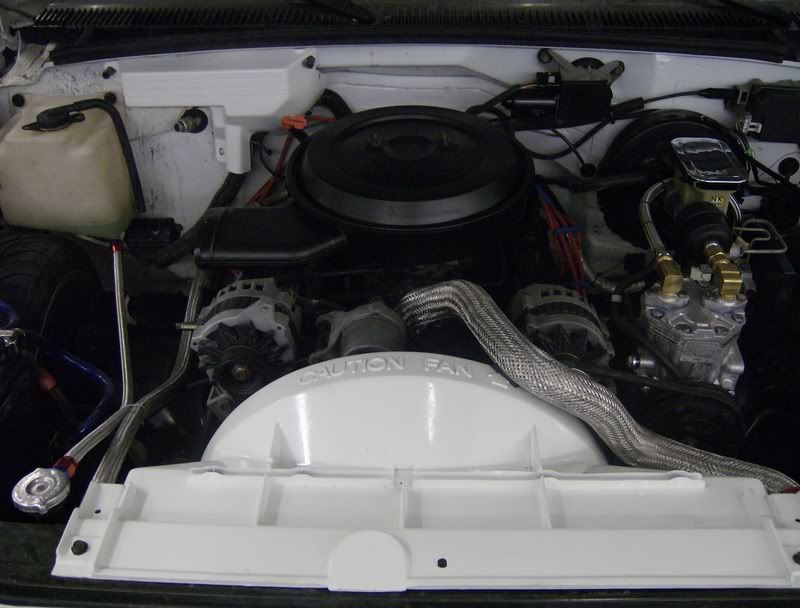

stock intake-

https://i142.photobucket.com/albums/r93/bbb1080/PictureDec2006112.jpg

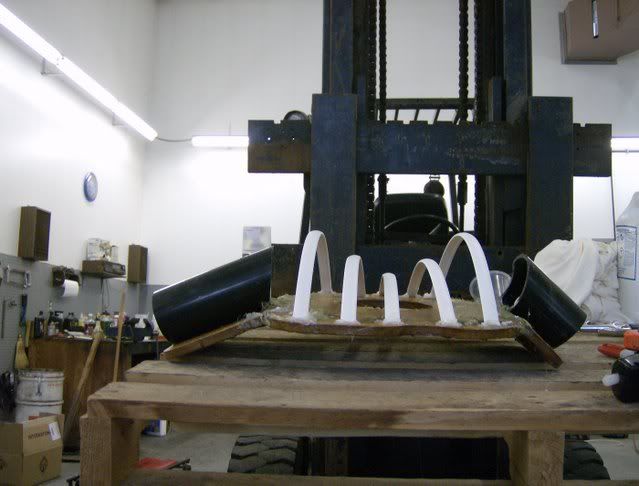

construction- I made the base out of 1/2" mdf and pvc pipe. I use an aluminum sleeve to attach the filters. I cut the bottom out of my stock intake and fiberglassed it to the bottom of the mdf to allow it to mount up like a stock intake.

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007083.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007085.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007064.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007077.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007075.jpg

wrapped it in lycra spandex

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007081.jpg

2 layers of mat and 3 layers of polycrete

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007084.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007056.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007066.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007080.jpg

3 hours later

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007067.jpg

test fit

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007089.jpg

too high so i had to slightly modify my throttle body

high build

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007086.jpg

painted

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007069.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007059.jpg

and installed with the newly designed steel braided vac line i made installed

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007071.jpg

https://i142.photobucket.com/albums/r93/bbb1080/PictureApril2007074.jpg

https://i142.photobucket.com/albums/r93/bbb1080/HPIM0221.jpg

spookiestylez
Silver - Posts: 531
Silver spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: September 23, 2005
Location: Virginia, United States
Posted: March 26, 2007 at 2:51 PM / IP Logged
looks fantiastical
sS
rtfm
gms81
Member - Posts: 47
Member spacespace
Joined: February 17, 2007
Location: United States
Posted: March 26, 2007 at 5:28 PM / IP Logged
Looks great, may want to consider moving the air filter though,.
bbb1080
Member - Posts: 12
Member spacespace
Joined: January 12, 2007
Location: Canada
Posted: March 26, 2007 at 5:51 PM / IP Logged
heats not a big issue with no inner fenders, not to mention that all the air under there is hot. plus im gonna do ceramic headers
austincustoms
Copper - Posts: 232
Copper spacespace
Joined: November 15, 2005
Location: United States
Posted: March 27, 2007 at 12:46 AM / IP Logged
yeah, that looks great, but 6" from the exhaust manifold on each side? I would run 2 chrome tubes right up beside the fan shroud. That's just my 2 cents though.
