awsomedude

Copper - Posts: 50

Joined: October 28, 2004

Location: United States

Posted: May 02, 2007 at 11:43 PM / IP Logged

I have a 528t pulse timer and I would like to set it up to use a negative trigger and have a negative output without the use of another relay. Is this possible?

Back to Top

Big Dog

Gold - Posts: 1,265

This member consistently provides reliable information

Joined: May 02, 2002

Location: Quebec, Canada

Posted: May 04, 2007 at 2:12 PM / IP Logged

The 528 has a built-in relay for output comprising of a common, a N.C. and a N.O.

Prepare your future. It wasn't the lack of stones that killed the stone age.

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: May 04, 2007 at 8:10 PM / IP Logged

528t wiring -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: May 04, 2007 at 8:53 PM / IP Logged

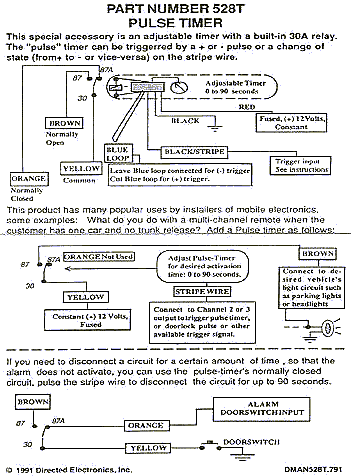

I made this Pinout from the Instructions.

528t wiring -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Back to Top

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: June 13, 2007 at 8:26 AM / IP Logged

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !
