using a relay to complete a circuit


Post ReplyPost New Topic
< Prev Topic Next Topic >
vtail
Member - Posts: 5
Member spacespace
Joined: April 24, 2007
Posted: July 12, 2007 at 8:38 PM / IP Logged

First of all...please forgive my ignorance.  I've been reading through lots of posts trying to find an answer to my question without success.  I would like to know what kind of relay to use to complete a simple circuit.  I'll try to explain...I would like to power the relay with a 12volt switched power and ground....when the 12v is applied to the relay, I would like two terminals without any voltage to them to complete a circuit.  Hope I'm describing this well enough to get an answer.  Thanks in advance!

vtail

hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: July 12, 2007 at 10:04 PM / IP Logged

Easy one. Right application. Where is the circuit?

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
duct tape
Copper - Posts: 125
Copper spacespace
Joined: May 18, 2006
Location: United States
Posted: July 12, 2007 at 11:15 PM / IP Logged

using a SPST or SPDT relay:

pin 85 goes to your output of the 12 volt switch

pin 86 goes to ground

pin 30 goes to one side of your circuit

pin 87 goes to the other side of your circuit.

when 12 volts is triggered from your switch, it will close contacts 30 and 87, thus completing your circuit.

hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: July 13, 2007 at 12:12 AM / IP Logged

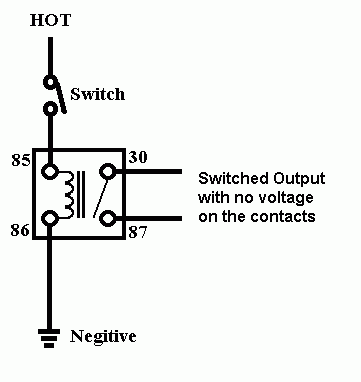

using a relay to complete a circuit -- posted image.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
vtail
Member - Posts: 5
Member spacespace
Joined: April 24, 2007
Posted: July 13, 2007 at 7:24 AM / IP Logged

Wow...I knew this would be easy for all of you!  Thank you very much for the quick responses!!!

vtail
