provide ground when powered


Post ReplyPost New Topic
< Prev Topic Next Topic >
ewingr
Copper - Posts: 60
Copper spacespace
Joined: February 21, 2007
Location: United States
Posted: August 26, 2007 at 2:28 PM / IP Logged

I have an older car with a newer engine, and I want to have my fan on my engine turn on when I turn on the A/C. I was thinking I could run a wire to a relay from my compressor power wire that would provide 12v when the compressor comes on. I would like that to trigger a ground at a relay, which I figured I would wire into the ground on my fan relay. Sound possible?

I've looked at the diagrams on relays here, but don't see a situation for what I want, and don't know enough about wiring to figure that out. Hoping for some direction.

So, hot wire from A/C (when A/c turned on) to what pole on the relay?

Ground wire from my fan relay to what pole on the relay?

I am thinking power to the relay to 30.

Ground to the relay to 85?

What type of relay? SPDP?

Many thanks!

Thanks
Roger
the12volt
Administrator - Posts: 3,955
Administrator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 07, 2002
Location: Louisiana, United States
Posted: August 26, 2007 at 3:40 PM / IP Logged
Using an SPDT relay, connect terminal 85 to power from A/C. Connect ground to terminals 86 and 30. Terminal 87 will be ground out from relay to fan relay.
provide ground when powered -- posted image. the12volt • Support the12volt.com
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: August 26, 2007 at 10:17 PM / IP Logged

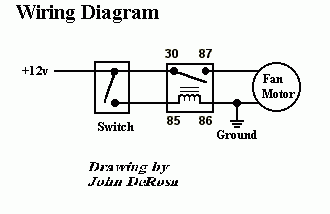

provide ground when powered -- posted image.
John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
ewingr
Copper - Posts: 60
Copper spacespace
Joined: February 21, 2007
Location: United States
Posted: August 29, 2007 at 9:12 PM / IP Logged
Thanks! I'll give it a try this weekend. I appreciate your response.
Thanks
Roger
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: August 29, 2007 at 9:56 PM / IP Logged

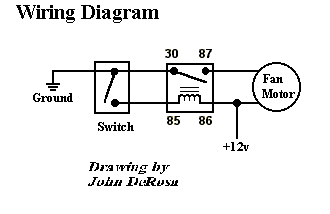

For switching the negitive look at this.

provide ground when powered -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
ewingr
Copper - Posts: 60
Copper spacespace
Joined: February 21, 2007
Location: United States
Posted: August 31, 2007 at 10:50 PM / IP Logged

Thanks, The 12Volt Administrator. This worked perfect, and providing me with specific wires to specific terminals was very very helpful.

Thanks
Roger
