7 pin relay, starter?


Post ReplyPost New Topic
< Prev Topic Next Topic >
polle999
Member - Posts: 3
Member spacespace
Joined: September 01, 2007
Location: Denmark
Posted: September 01, 2007 at 6:06 AM / IP Logged

hello good people of www.the12volt.com

i am currently trying to find some info about this relay! its a bosch 0280 230 006

the pins is 1, 15, 30, 31, 50, 87, 87b

7 pin relay, starter? -- posted image.

any ho can draw what kind of switching is going on in this relay? like when 15  gets power it turns on 87 and so on?

thank you!

KarTuneMan
Platinum - Posts: 7,056
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: December 14, 2004
Location: Isle Of Man
Posted: September 01, 2007 at 9:27 AM / IP Logged
Can you give us a hand..... translate for us! 7 pin relay, starter? -- posted image.
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: September 01, 2007 at 12:47 PM / IP Logged

1 Coil, distributor - low voltage

15 Switched + downstream of battery (output of ignition/driving switch)
30 Input from battery +, direct
31 Battery negative terminal, or ground, direct
50 Starter control (direct)
87 Input
87b Output 2

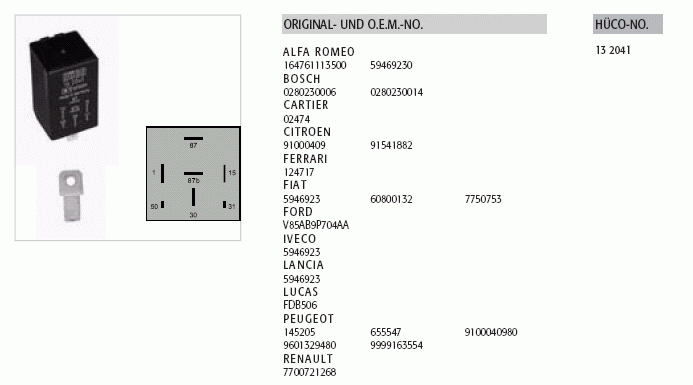

OSCH Part # 0280230006 {Combi-Relay}

Category: Relay - Combination

http://www.hueco.com/Relais_05-06_full_web.pdf

7 pin relay, starter? -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
polle999
Member - Posts: 3
Member spacespace
Joined: September 01, 2007
Location: Denmark
Posted: September 01, 2007 at 4:14 PM / IP Logged

thx

but sadly i have that info already.. the thing im looking for a diagram over the switching going on in side the relay .. like were you can se that pin 1 makes a contact between 30 and 50 .. just like that.

hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: September 03, 2007 at 9:00 AM / IP Logged
hotwaterwizard
Silver - Posts: 1,350
Silver spacespace
Joined: December 11, 2003
Location: California, United States
Posted: September 03, 2007 at 6:19 PM / IP Logged

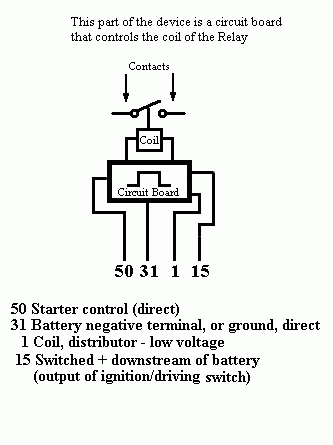

There is a circuit inside of the cube It needs a low voltage pulse from the points to pin 1 to operate the relay.

No pulse no fuel.

This is usually a pulse from the points or electronic ignition module.

7 pin relay, starter? -- posted image.

John DeRosa (Hotwaterwizard)
Stockton California
When in doubt, try it out !
polle999
Member - Posts: 3
Member spacespace
Joined: September 01, 2007
Location: Denmark
Posted: September 04, 2007 at 12:38 AM / IP Logged

Ahh just the post i was looking for .! :-)

thx

now i know that if i connect 12+ directly to pin 50 and it has all its other signals i should start.. if the wireing to the rest is fine... but if not i could connect a small light bulb to the pin 1 to se if there is any pulse... correct?
