I need a little help with a 528T.

I’ve used 528’s in the past and had zero problems getting them wired and functioning. This is probably a simple deal I’m just not getting it. I need the 528 to activate another relay(s) when ignition power is cut off. The additional relays will keep an electric water pump and 2 radiator fans running for the max 90 seconds. I’m also planning on installing a diode between the ignition source and the fan/pump relays.

Any wiring help would be much appreciated, Thanks!

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: September 08, 2007 at 3:55 PM / IP Logged

It is a Pulse timer You have to give it a pulse. You could have a relay latch when the ignition is on then pulse it when the power is turned off with the momentary to pulse circuit from this site. The use the 528 drop the power after 90 seconds.

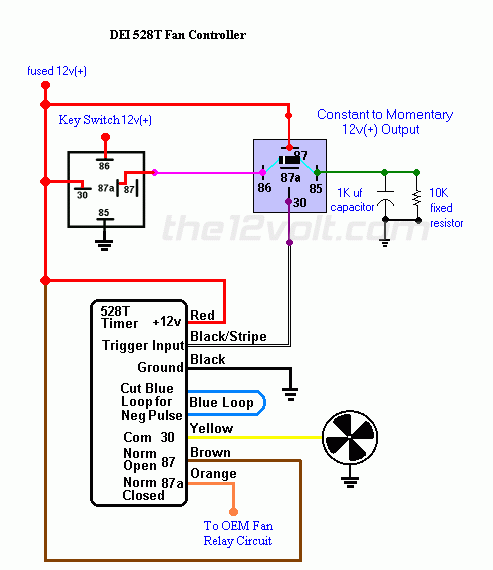

Here is what I came up with.

528t for fans and electric water pump -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Search for other posts by hotwaterwizard

S10Fan

Member - Posts: 20

Joined: November 17, 2002

Location: United States

Posted: September 09, 2007 at 8:16 AM / IP Logged

Out of frustration I plundered forward. Also have a couple spare 528’s. LOL.

Anyway, here’s what I wired up,

Red-12V+ fused

Black-12V-

Yellow-12V+ fused

Black Stripe- Ignition fused

Brown- To Fan/Water Pump Relay (with diode)

Blue Loop- cut

Orange- not used

When I turn off the ignition the fans and water pump stay on for the desired amount of time. The fans and water pump also work as desired with the ignition on. So far so good.

I printed out your diagram for future reference. Thanks!

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: September 09, 2007 at 1:16 PM / IP Logged

I don't have the benifit of having one of these to experiment with.

In fact I have never even seen one. I understand how they work though.

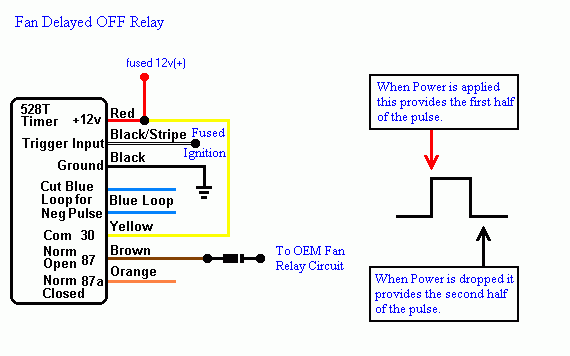

The first part of the pulse is provided when the power is applied and the second is provided when the power is turned off. Cool. I didn't think about that solution, Well done! 528t for fans and electric water pump -- posted image.

Is this what you did?

528t for fans and electric water pump -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

S10Fan

Member - Posts: 20

Joined: November 17, 2002

Location: United States

Posted: September 09, 2007 at 2:41 PM / IP Logged

Exactly!

I must admit though, the 1st half and 2nd half of the pulse thing was pure luck. Actually, until you posted your response I never thought of it in that manner.

Thanks!

69elco

Member - Posts: 1

Joined: October 27, 2007

Location: California, United States

Posted: October 27, 2007 at 2:36 PM / IP Logged

Hi,

I just tried this... The timer times out after ignition on and ignition off. What am I missing?
