2005 Ford Escape Audio Pinout


Post ReplyPost New Topic
< Prev Topic Next Topic >
resq1
Member - Posts: 8
Member spacespace
Joined: March 13, 2005
Location: United States
Posted: October 28, 2007 at 5:22 AM / IP Logged

could anyone provide me with a diagram of the 8/16/24 pin diagram on a 2005 ford escape with 6 cd changer and audiophile?

Thank you in advance

Resq1
Velocity Motors
Moderator - Posts: 12,488
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Fabrication. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 08, 2002
Location: Manitoba, Canada
Posted: October 28, 2007 at 1:48 PM / IP Logged

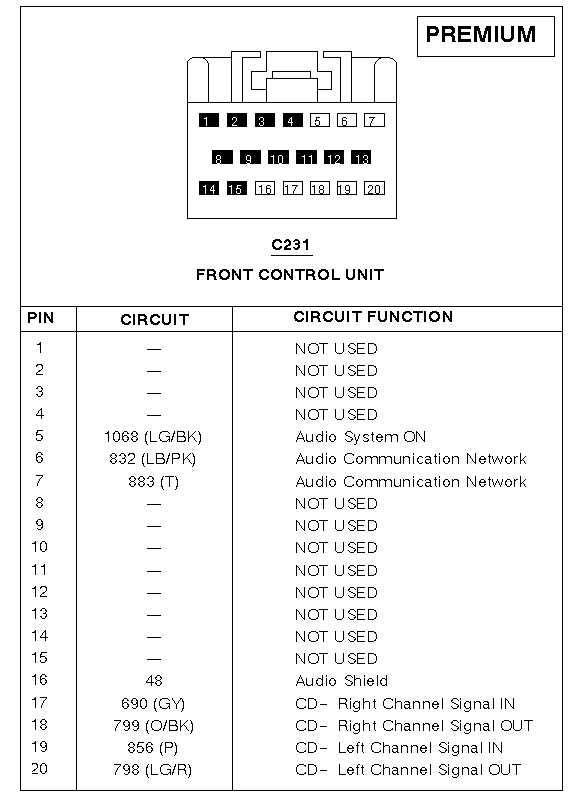

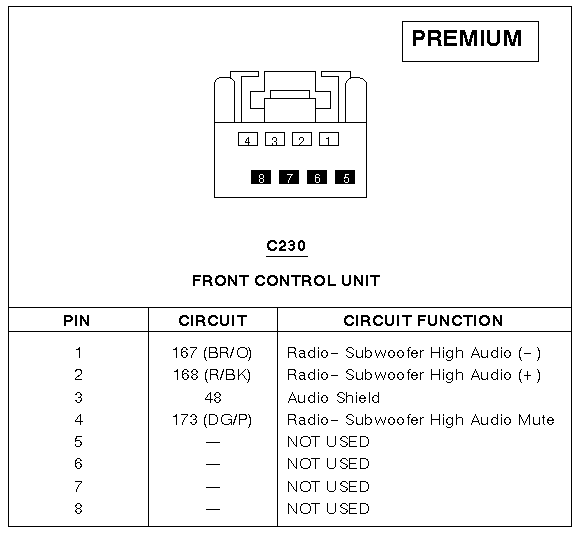

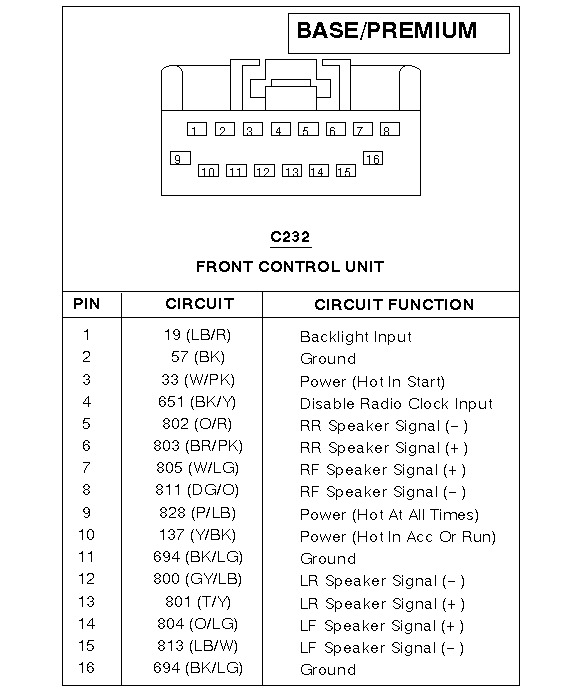

2005 Ford Escape Audio Pinout -- posted image.
2005 Ford Escape Audio Pinout -- posted image.
2005 Ford Escape Audio Pinout -- posted image.
Jeff
Velocity Custom Home Theater
Mobile Audio/Video Specialist
Morden, Manitoba CANADA
Velocity Motors
Moderator - Posts: 12,488
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Fabrication. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: March 08, 2002
Location: Manitoba, Canada
Posted: October 28, 2007 at 1:50 PM / IP Logged
Here are the 8/16/20 pin diagrams. Just make sure you test each pin to what is in the diagrams above to ensure the accuracy of the information provided.

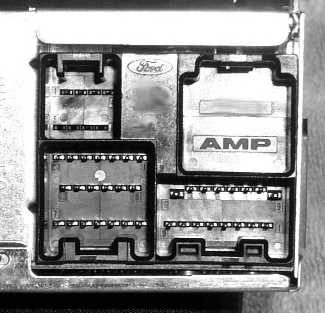

Here's the back of the deck where this information comes from:
2005 Ford Escape Audio Pinout -- posted image.
Jeff
Velocity Custom Home Theater
Mobile Audio/Video Specialist
Morden, Manitoba CANADA
resq1
Member - Posts: 8
Member spacespace
Joined: March 13, 2005
Location: United States
Posted: October 29, 2007 at 1:35 PM / IP Logged

Hello,

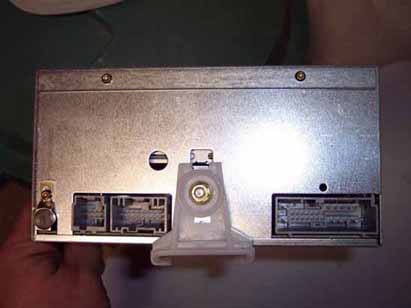

Thanks for your reply, but my radio is i bit different.  I will post picture: 2005 Ford Escape Audio Pinout -- posted image.

Thanks again

Resq1
