led’s 12v in parallel


Post ReplyPost New Topic
< Prev Topic Next Topic >
ltkenbo
Member - Posts: 2
Member spacespace
Joined: December 05, 2007
Location: Tennessee, United States
Posted: December 05, 2007 at 12:56 AM / IP Logged
Hey, new here and I had a question about wiring some LED's to a 12v source. Me and my friend are designing a brake light for his motorcycle.

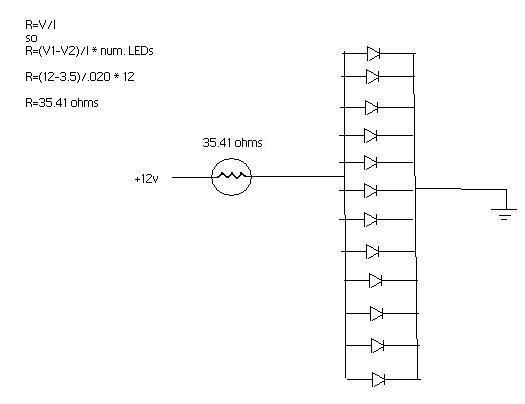

Anyways, my main question was if I can wire them in parallel like the following diagram using a single resistor. I ohms law with the equation (V1-V2)/I * N
V1=Supply (12v)
V2=Volts for an individual LED (3.5v)
I=Current for an individual LED (.020a)
N=Number of LEDs in parallel circuit (12)
Is this diagram and equation correct. Would this setup work hooking up to a 12v battery on a motorcycle.
led’s 12v in parallel -- posted image.
Thanks :-)
techman93
Silver - Posts: 591
Silver spacespace
Joined: October 28, 2006
Location: Pennsylvania, United States
Posted: December 05, 2007 at 1:07 AM / IP Logged
four rows of three led's with 820 ohms resistance on each row attached to negative side.
http://led.linear1.org/led.wiz
The wire I'm test'n isn't doin' what it's supposed to be doin'... I am so glad I printed that tech sheet, with the wrong info.
Do it right the first time... or I might have to fix it for ya
ltkenbo
Member - Posts: 2
Member spacespace
Joined: December 05, 2007
Location: Tennessee, United States
Posted: December 09, 2007 at 5:38 PM / IP Logged
My question though is would this work. This website: http://www.quickar.com/noqbestledcalc.htm
shows the same schematic I came up with and so does this one:
http://www.hebeiltd.com.cn/?p=zz.led.resistor.calculator
Would this setup work??
