best way to connect subs to amp


Post ReplyPost New Topic
< Prev Topic Next Topic >
playaslaya
Member - Posts: 8
Member spacespace
Joined: January 29, 2009
Posted: January 30, 2009 at 3:58 AM / IP Logged

Hi, i'm new to the car audio world and was hoping someone out there could help me out. Any help whatsoever would be greatly appreciated.

I have two Cerwin Vega 12" DVC HED124 subwoofers, rated at 300W rms and 4ohm per voice coil, and an Ice Power 3600W monoblock amp.

Specs that came with the amp manual state that it delivers the following power:

400W rms at 4ohm
800W rms at 2ohm
1500w rms at 1ohm

My question is what is the best way of connecting the subs to the amp without causing any damage to any of the equipment while still playing as loud as possible.

Thanks in advance.

i am an idiot
Platinum - Posts: 13,673
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: January 30, 2009 at 5:44 AM / IP Logged

The best way to do it is with wire.   The following is a diagram that might help you with the wiring of the subs to the amplifier.

Option 1 (parallel/parallel) = 1 ohm load
Voice coils wired in parallel, speakers wired in parallel
Recommended Amplifier: Stable at 1 ohm mono
best way to connect subs to amp -- posted image.


aznboi3644
Gold - Posts: 2,600
Gold spaceThis member consistently provides reliable informationspace
Joined: May 01, 2006
Location: United States
Posted: January 30, 2009 at 7:34 PM / IP Logged
I would suggest copper wire
Custom Enclosure Design
420guy
Member - Posts: 5
Member spacespace
Joined: December 29, 2008
Location: Ontario, Canada
Posted: January 30, 2009 at 9:24 PM / IP Logged
i am an idiot wrote:

The best way to do it is with wire.   The following is a diagram that might help you with the wiring of the subs to the amplifier.

Option 1 (parallel/parallel) = 1 ohm load
Voice coils wired in parallel, speakers wired in parallel
Recommended Amplifier: Stable at 1 ohm mono

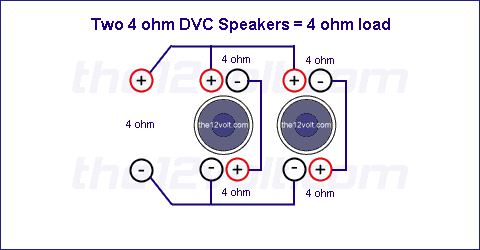

best way to connect subs to amp -- posted image.


Well I was going to agree with this, however it appears as though these subs are 300 watts total not 300 per coil. ( if I read the Cerwin Vega specs right. So that would mean each sub will be getting 750watts = 375/coil. Each coil can only handle 150watts. This will be bad unless you keep the gains waayyy down. It can be done, but the slightest abuse will release the magic smoke. You will need to run them paralel/series to put a 4ohm load on the amp but each sub will only be getting 200watts. IMHO that is the wrong amp to be using with those subs. The wattage for the amp is it RMS or max? You are either going to be badly underpowering or overpowering them and neither is good for them. Sorry to be the bearer of bad news but you will never get the most of that amp with those subs.

This is going to be about the best way of doing it without the risk of damage to the subs.

best way to connect subs to amp -- posted image.

playaslaya
Member - Posts: 8
Member spacespace
Joined: January 29, 2009
Posted: January 31, 2009 at 2:54 AM / IP Logged
I was thinking that perhaps the voice coils on each sub could be connected in parallel and then connected to each of the two output channels of the amp, thus giving a 2ohm load on each load. Might this be a better option?
i am an idiot
Platinum - Posts: 13,673
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: January 31, 2009 at 6:38 AM / IP Logged
It is a 1 channel amplifier, there may be 2 sets of speaker terminals on the amp, they are connected together. Doing as you stated, the amp will be in a 1 ohm load. I did not think about the speakers power handling when I posted the diagram. Pay attention to 420Guy, he may be always looking for something to snack on, but he is not an idiot.
aznboi3644
Gold - Posts: 2,600
Gold spaceThis member consistently provides reliable informationspace
Joined: May 01, 2006
Location: United States
Posted: January 31, 2009 at 3:12 PM / IP Logged
Just so you know your amp is more of around 400-500 watt amp most likely.
Nothing close to what the ratings are.
Custom Enclosure Design
haemphyst
Platinum - Posts: 5,054
Platinum spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spacespace
Joined: January 19, 2003
Location: Michigan, Bouvet Island
Posted: February 01, 2009 at 10:46 AM / IP Logged
aznboi3644 wrote:
I would suggest copper wire
Aluminum works just as well...
It all reminds me of something that Molière once said to Guy de Maupassant at a café in Vienna: "That's nice. You should write it down."
i am an idiot
Platinum - Posts: 13,673
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: February 01, 2009 at 11:55 AM / IP Logged
Aluminum wire in an automobile application is not the best choice one could make.  It is not nearly as flexible as it's copper counterpart.  It also has only 61% of the current handling capacity as copper.  And with the massive amounts of current coming from his 1500 watt amp, that may not be such a good idea.
playaslaya
Member - Posts: 8
Member spacespace
Joined: January 29, 2009
Posted: February 07, 2009 at 3:45 PM / IP Logged
I have a 1500 W RMS(i think its overated though) monoblock amp connected to two cerwin vega HED124 subs(rated at 300w rms each). The voice coils of each sub are connected in parallel and then the subs are connected in parallel to the amp giving a 1 ohm load.
The problem is that when powered the subs dont play at all. I've double checked all connections, fuses and polarities and everything appears to be connected properly.
The power LED indicator on the amp does come on though.
Please help, i have no idea where i went wrong. Thanks
