viper 5906 + dball on mit outlander sports

Home / the12volt's Install Bay / Car Security and Convenience / viper 5906 + dball on mit outlander sports

Welcome Guest :)

Members

< Prev Page Next Page > < Prev Topic Next Topic >

sckw

Member - Posts: 15

Joined: February 04, 2015

Location: Malaysia

Posted: February 28, 2015 at 11:58 AM / IP Logged

tedmond wrote:

push to start - follow correct pts guide

regular key - no

Fast Key(proximity key) - yes

but in the guide it doesn't show any relay to be wired. so how do i wired a relay to the auto start module?

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: February 28, 2015 at 12:17 PM / IP Logged

I can't see a relay in the diagram, does that answer your question?

sckw

Member - Posts: 15

Joined: February 04, 2015

Location: Malaysia

Posted: March 01, 2015 at 6:45 AM / IP Logged

howie ll wrote:

I can't see a relay in the diagram, does that answer your question?

so which mean, it doesn't need any relay then?

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: March 01, 2015 at 6:46 AM / IP Logged

If it doesn't show or mention one, it doesn't need it.

sckw

Member - Posts: 15

Joined: February 04, 2015

Location: Malaysia

Posted: March 04, 2015 at 10:44 AM / IP Logged

howie ll wrote:

If it doesn't show or mention one, it doesn't need it.

i alrdy plug in all the wire that need to plug in... but the DBALL2 module Light still not yet turn into solid green.. pls help?

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: March 04, 2015 at 10:51 AM / IP Logged

Have you followed the setting up procedure?

Is it flashed with the correct software?

sckw

Member - Posts: 15

Joined: February 04, 2015

Location: Malaysia

Posted: March 04, 2015 at 11:11 AM / IP Logged

howie ll wrote:

Have you followed the setting up procedure?

Is it flashed with the correct software?

yes im flashing MIT1 for outlander sport smart key ..

the module keep stay at solid red.. even if i press the pts button twice

sckw

Member - Posts: 15

Joined: February 04, 2015

Location: Malaysia

Posted: March 04, 2015 at 11:47 AM / IP Logged

sckw wrote:

howie ll wrote:

Have you followed the setting up procedure?

Is it flashed with the correct software?

yes im flashing MIT1 for outlander sport smart key ..

the module keep stay at solid red.. even if i press the pts button twice

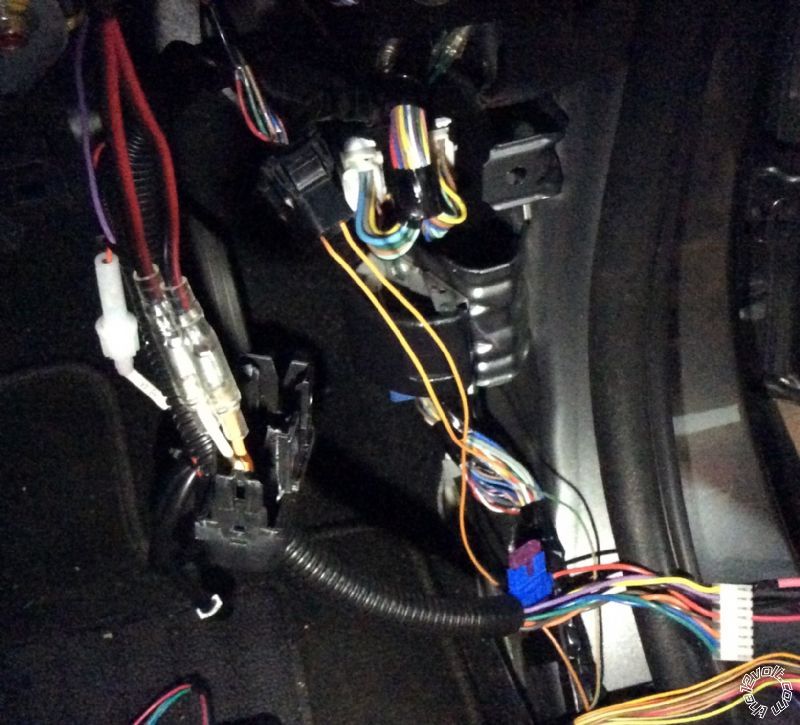

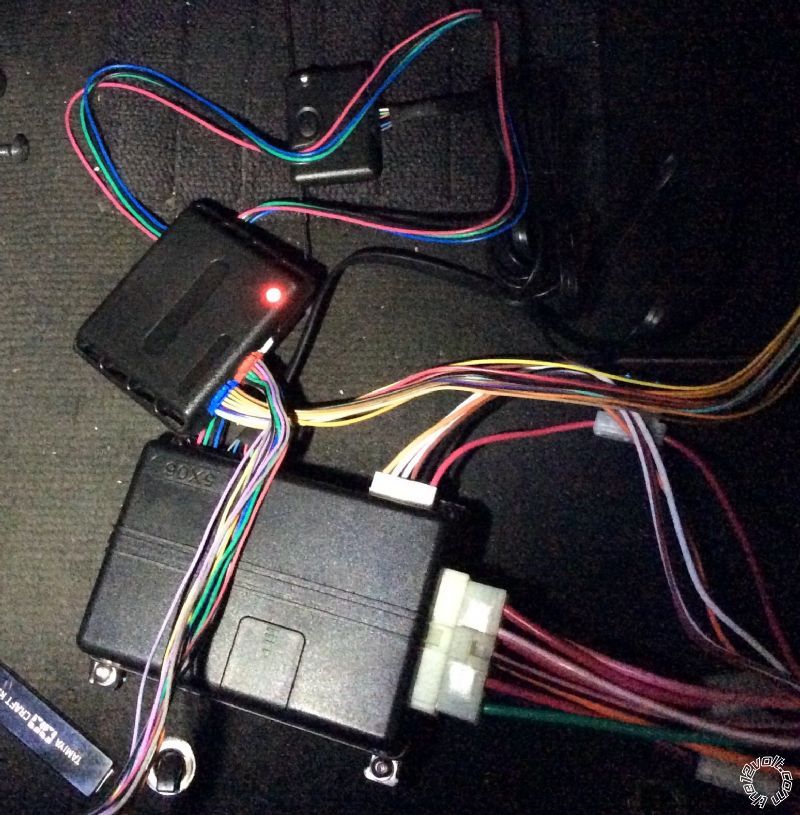

viper 5906 + dball on mit outlander sports - Page 2 -- posted image.

tedmond

Gold - Posts: 4,610

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: January 06, 2007

Location: Ontario, Canada

Posted: March 04, 2015 at 2:38 PM / IP Logged

red indicates it hasnt seen ignition. Verify your connection from the dball blue harness is connected to the large pink wire on the viper.

Ted

2nd Year Tier 1 Medical School

Still installing as a hobby...pays for groceries

Compustar Expert

sckw

Member - Posts: 15

Joined: February 04, 2015

Location: Malaysia

Posted: March 04, 2015 at 8:21 PM / IP Logged

tedmond wrote:

red indicates it hasnt seen ignition. Verify your connection from the dball blue harness is connected to the large pink wire on the viper.

These are the wire that i connected:-

dball2 Blue Harness

1. Can High

2. Can Low

dball2 Red Harness

1. (-) Auto headlamp shutoff Output

Viper Alarm Harness

1. Ignition Big Pink wire

2. ground

3. 12V (+)

I just want to test if its working for my vehicle.
