aladinsain

Member - Posts: 4

Joined: February 06, 2014

Location: United Kingdom

Posted: February 17, 2014 at 6:22 AM / IP Logged

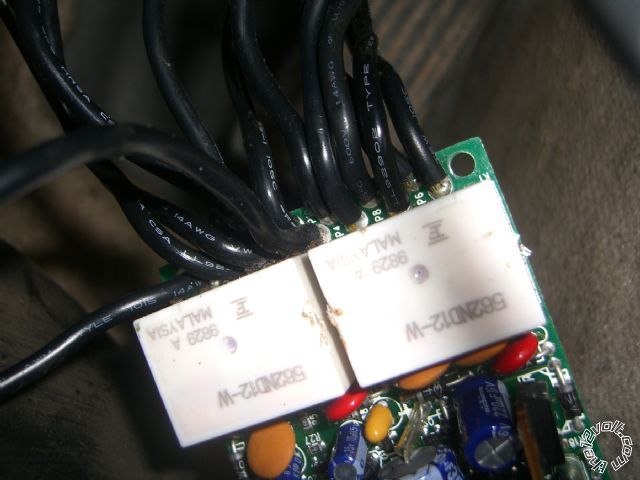

Hi Guys i really need your help with this as i cannot get my car started the spare torpedo that i have will not program the immobilizer so i need to take it out completely i have traced the wires as far back as i can but cannot seem to find where they are chased in there is 2 relays on it one for the fuel pump and one for the starter motor i think see image any help would be appreciated clifford virtual key manual -- posted image.

clifford virtual key manual -- posted image.

Back to Top

howie (aka: harryharris)

Silver - Posts: 355

Joined: February 17, 2014

Location: Florida, United States

Posted: February 17, 2014 at 12:35 PM / IP Logged

Two blacks to ground (UK = earth).

One back fused to constant 12V+

One possibly fused to ignition (not too sure if that one is there)

Two wires on your ignition loom will have been cut, rejoin.

Test before boxing up.

Back to Top

aladinsain

Member - Posts: 4

Joined: February 06, 2014

Location: United Kingdom

Posted: February 18, 2014 at 6:18 AM / IP Logged

is possible to identify from p6 p8 p4 ect also are the ground wires silver colored wires and the copper colored wires live ?

Back to Top

howie (aka: harryharris)

Silver - Posts: 355

Joined: February 17, 2014

Location: Florida, United States

Posted: February 18, 2014 at 7:18 AM / IP Logged

Nope it's about 15 years since I installed one of these, trace the wiring, rewire the breaks remove and forget.

Test before boxing up.

Back to Top

aladinsain

Member - Posts: 4

Joined: February 06, 2014

Location: United Kingdom

Posted: February 18, 2014 at 11:12 AM / IP Logged

Hi Harry have sorted it with the info you gave me thank you very much

Back to Top

howie (aka: harryharris)

Silver - Posts: 355

Joined: February 17, 2014

Location: Florida, United States

Posted: February 18, 2014 at 11:13 AM / IP Logged

Pleasure.

Test before boxing up.
