timmay

Member - Posts: 6

Joined: August 03, 2004

Location: Canada

Posted: August 12, 2004 at 9:03 PM / IP Logged

hey guys,

i just purchased this "batman" light from ebay. http:///.com/ebaymotors/dll?ViewItem&rd=1&item=7913697930 (comparable to varad's gothic light)

there is 3 wires coming out of it (ground, positve and a yellow wire)

i hooked up the ground and the positive and the led came on right away. I was under the impression that this light will only come on if there is a negative ground going into the yellow wire. Is it supposed to come on when just ground/pos are hooked up?

Thanks in advance

auex

Platinum - Posts: 5,041

This member has made a donation to the12volt.com. Click here for more info.

Joined: December 23, 2002

Location: Arizona, United States

Posted: August 12, 2004 at 10:44 PM / IP Logged

Ground to ground, positive to Constant +12V, and yellow to something that goes to ground when car is off or ground when armed to alarm. It does appear that it is supposed to light up only if the yellow wire sees a ground. But I suppose this is what you get for getting it from ebay.

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.

timmay

Member - Posts: 6

Joined: August 03, 2004

Location: Canada

Posted: August 12, 2004 at 10:47 PM / IP Logged

auex wrote:

thanks auex!!

would connecting the black wire to my accesory output on my alarm give me the effect that i want?

and where would i have to put a diode?

thanks in advance!

auex

Platinum - Posts: 5,041

Joined: December 23, 2002

Location: Arizona, United States

Posted: August 12, 2004 at 10:49 PM / IP Logged

Well, I think you should put a diode in between the alarm and starter kill on the ground when armed wire and hook the led to the between the diode and alarm. This way it would light up when the alarm is armed. As for accessory output, if you do this then it will only do light up when the channel is active.

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.

timmay

Member - Posts: 6

Joined: August 03, 2004

Location: Canada

Posted: August 12, 2004 at 11:00 PM / IP Logged

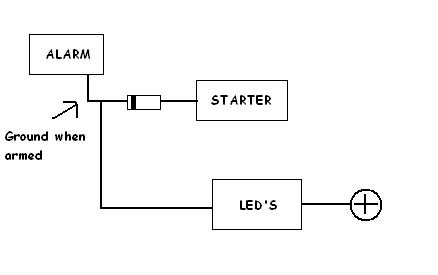

would this diagram work?

how can i hook up a switch so that i can turn on the led when the car is running?

i imagine hooking another diode and a lead to ground should do the trick..not to sure on how to implement that tho

varad-like led scanner hookup -- posted image.

auex

Platinum - Posts: 5,041

Joined: December 23, 2002

Location: Arizona, United States

Posted: August 12, 2004 at 11:04 PM / IP Logged

Yup that is it. You have to remember to include the file type for images to show up, like for you led.jpg.

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.

timmay

Member - Posts: 6

Joined: August 03, 2004

Location: Canada

Posted: August 12, 2004 at 11:08 PM / IP Logged

how would i wire a switch into that diagram so that i can turn on this led when the car is running?

auex

Platinum - Posts: 5,041

Joined: December 23, 2002

Location: Arizona, United States

Posted: August 12, 2004 at 11:15 PM / IP Logged

Just wire another diode in where you connect the led to the ground when armed wire. Then wire a toggle switch in between the diode and the led.

Like this

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.

timmay

Member - Posts: 6

Joined: August 03, 2004

Location: Canada

Posted: August 12, 2004 at 11:21 PM / IP Logged

thanks so much auex!!!

any way i can rate you or anything?

auex

Platinum - Posts: 5,041

Joined: December 23, 2002

Location: Arizona, United States

Posted: August 12, 2004 at 11:28 PM / IP Logged

Nope, don't need it. Just here to help.

Certified Security Specialist

Always check info with a digital multimeter.

I promise to be good.

Tell Darwin I sent you.

I've been sick lately, sorry I won't be on much.
