2008 Chevy Malibu Remote Start

I am installing a viper 5501 into a Malibu. I have been out of the remote start/ security business for a good amount of time. That explains why I'm asking for help. Favor for a friend. I have diagrams for the vehicle, but got a refurb unit and hooked the heavy gauge starter wires I pulled from engine bay (I know there are other ways) but used the RED / black wire and the violet wires on the viper. I have the tach signal and all that because I can valet take over. I think I have a bad unit. But besides that how can I do the door locks and simulate the key with resistors and which wires? Help on this would be appreciated. Thanks

Not sure if I understand but I don't think that is how you are supposed to do it. The Starter wire listed in the engine compartment is only used for starter kill, not to start the car. The Viper H3/4 wire is not used for your application. That car will crank the starter after it sees an ignition sequence ( Accessory and Ignition go the +12V simultaneously then Accessory drops to 0V ). The car has one touch starting with anti-grind.

I would recommend something like a DLPK bypass module to go with your Viper R/S. It will handle the immobilizer and the locks, trunk & factory alarm system.

Recently did a 2011 Malibu ( 2008 thru 2011 are the same ) using an Ultra Start U1272 and an iDatalink bypass module.

All the necessary connections were at the BCM ( passenger side of the center console ), ignition switch harness and one wire to the OBD2 diagnostics plug.

Soldering is fun!

Thank you very much, any insight really helps point me in the right direction. I will get this bypass module and hopefully all goes well.

Here is the wiring for your Viper 5501 & DLPK install into the 2008 Malibu.  ( Used the Viper 5301 diagram which I believe is the same as the 5501 )

Went with the W2W setup which slightly more work but extremely reliable.  Mate the Viper & DLPK on the bench before install using solder & heatshrink.  Only the necessary connections are listed.

Viper 5501                                                                                                              2008 Malibu                                 DLPK

H1/1 RED / WHITE (-) 200mA AUX/TRUNK RELEASE OUTPUT                                                                                   CN2 RED / White

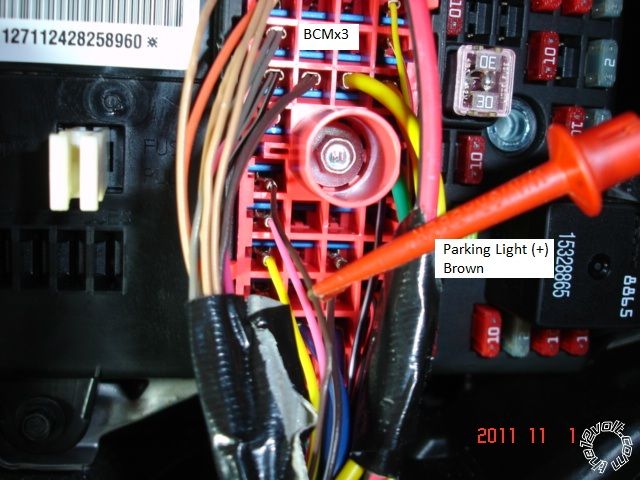

H1/2 RED (+)12VDC CONSTANT INPUT                                                                    BCMx3 RED / Black                    CN1 BlueH1/3 BROWN (-) 200mA HORN HONK OUTPUT                                                        BCMx2 TanH1/4 WHITE/ BROWN PARKING LIGHT ISOLATION WIRE -H1/5 BLACK (-) CHASSIS GROUND                                                                         Chassis Ground                        CN1 BlackH1/6 VIOLET (+) DOOR TRIGGER INPUT                            H1/7 BLUE* FACTORY HORN INPUT (Use jumper to set polarity)H1/8 GREEN (-) DOOR TRIGGER INPUT (N/C** OR N/O)                                                                                          CN2 GreenH1/9 BLACK/ WHITE (-) 200mA DOME LIGHT SUPERVISION OUTPUTH1/10 WHITE/ BLUE (-) REMOTE START/ TURBO TIMER ACTIVATIONH1/11 WHITE PARKING LIGHT OUTPUT    *** set to (+)                                             BCMx3 BrownH1/12 ORANGE (-) 500mA GROUND WHEN LOCKED OUTPUT

H2/1 LIGHT GREEN/ BLACK (-) 200mA OEM ALARM DISARM OUTPUT

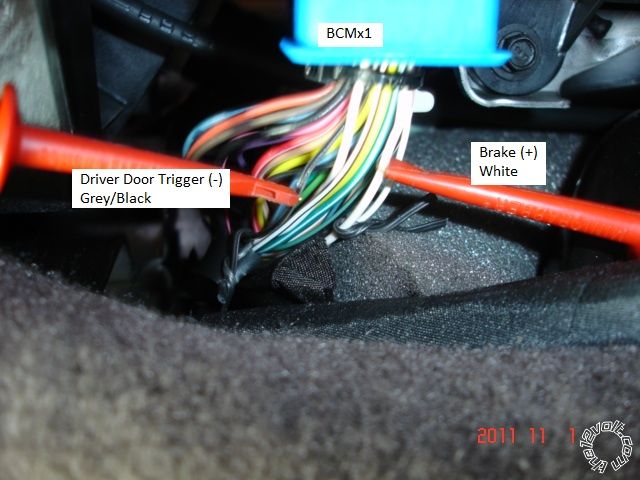

H2/2 ORANGE / BLACK (-) 200mA AUX 4 OUTPUTH2/3 GREEN / WHITE (-) 200mA OEM ALARM ARM OUTPUTH2/4 VIOLET/BLACK (-) 200mA AUX 2 OUTPUTH2/5 WHITE/ BLACK (-) 200mA AUX 3 OUTPUTH2/6 WHITE/ VIOLET (-) 200mA AUX 1 OUTPUTH2/7 GREY/BLACK (-) DIESEL WAIT TO START INPUTH2/8 N/A H2/9 VIOLET/WHITE TACHOMETER INPUT  ***Set Viper to Tach Mode - Menu3, Item2, Opt4                                       CN2 Violet/WhiteH2/10 DARK BLUE (-) 200mA STATUS OUTPUT                                                                                                        CN2 Blue/WhiteH2/11 PINK/WHITE (-) 200mA FLEX RELAY CONTROL OUTPUTH2/12 ORANGE (-) 200mA ACCESSORY OUTPUTH2/13 PURPLE (-) 200mA STARTER OUTPUTH2/14 PINK (-) 200mA IGNITION 1 OUTPUTH2/15 GREY (-) HOOD PIN INPUT (N/C OR N/O)                                                        Hood Pin H2/16 BLUE/WHITE (-) 200mA 2ND STATUS /REAR DEFOG OUT   ***Set to 2nd Status                                            Extra RelayH2/17 BROWN (+) BRAKE SHUTDOWN INPUT                                                         BCMx1 WhiteH2/18 BLACK/ WHITE (-) NEUTRAL SAFETY INPUT                                                   Chassis Ground

H3/1 PINK (+) IGNITION 1 INPUT/OUTPUT                                                                Pink @ Ign Switch  *** DLPK guide lists as Yellow

H3/2 RED / WHITE +12V FUSED (30A) IGNITION 2/FLEX RELAY INPUTH3/3 ORANGE (+) ACCESSORY OUTPUT                                                               Brown @ Ign Switch                   CN2 PinkH3/4 VIOLET (+) STARTER OUTPUTH3/5 RED +12V FUSED (30A) IGNITION 1 INPUT                                                      BCMx3 RED / BlackH3/6 PINK/WHITE IGNITION 2/FLEX RELAY OUTPUTH3/7 PINK/BLACK FLEX RELAY INPUT 87a (IF REQUIRED) OF FLEX RELAYH3/8 RED / BLACK +12V FUSED (30A) ACCESSORY/STARTER INPUT                       BCMx3 RED / Black

1 BLUE (-) 500mA UNLOCK OUTPUT                                                                                                                        CN2 Blue

2 EMPTY NOT USED3 GREEN (-) 500mA LOCK OUTPUT                                                                                                                         CN2 Light Green

DLPK

CN2 Orange                                                                                                           White @ Ign Switch Pin 5 - Key sideCN2 Yellow                                                                                                            White @ Ign Switch Pin 5 - Car side

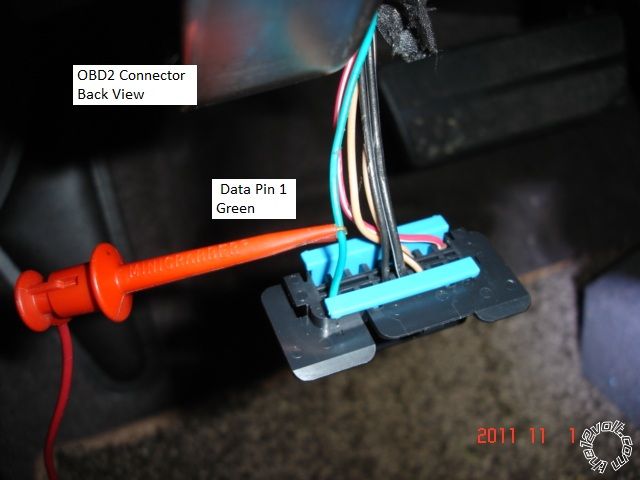

CN3 Light Green                                                                                                     OBD2 Green Pin1

CN3 Brown                                                                                                             WHITE/ Black @ Ign Switch Pin 6

Pictures :

Soldering is fun!

Great information as always kreg! im doing my research to take on an 09.No better feeling then getting a remote start to work right!

Ah, the power of the search function.     And knowledge is power!

Space is a little tight but a fairly easy car to do with the right bypass module.

Good luck!

Soldering is fun!

With the IData Module this car is as easy as they get. Glad I switched to Idatalink modules....Rock Solid!!!!!

Great post straight forward I was able to follow your guides and got mine installed on an 09 Malibu with the idataalca model flashed to gm2 but my only question is related to the pin6 which is the white reference wire. if you can please explain how this is supposed to be wired you said brown at cn3 to pin6 but my diagram does show it and I'm not able to locate a brown wire from cn side and instead I have an orange data swc going to green. Guidance would be appreciated thanksknowledge is power
