1998 corolla starter disable hookup


Post ReplyPost New Topic
< Prev Topic Next Topic >
briankp
Member - Posts: 2
Member spacespace
Joined: March 08, 2004
Location: United States
Posted: December 15, 2007 at 1:16 PM / IP Logged

I am new to this.

Does anyone have experience on hooking up a 1998 Corolla Starter disable using a Clifford Saber II alarm?

I am confuse as to which color of the wire I need to use from the Ignition harness to hook up the Relay?

Any help would be appreciated.

Thanks

dre187
Copper - Posts: 129
Copper spacespace
Joined: November 24, 2006
Location: Canada
Posted: December 15, 2007 at 5:37 PM / IP Logged

your alarm should have a "ground when armed (-)" wire, orange in colour.  wire your relay as follows...

pin 85-     ground when armed (neg output)

pin 86-      +12v constant

pin 30-      key side of the starter wire

pin 87a-       motor side of the starter wire

pin 87-  empty

i believe the starter wire in the corolla is RED and it is at the ignition harness

briankp
Member - Posts: 2
Member spacespace
Joined: March 08, 2004
Location: United States
Posted: December 18, 2007 at 2:32 PM / IP Logged

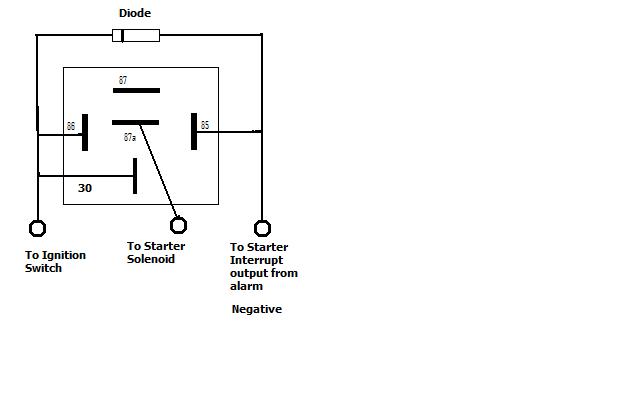

Will this hookup be better because it only works when the key is turned on momentary.  If Alarm is activated from 85, then 87a will be disconnected.  The Starter will not start as a result.

Thanks for your review and opinion!

87 - No connection

86 and 30 is connected together and go to the Ignition Switch.

87a - goto the Starter Solenoid ( motor side)

1998 corolla starter disable hookup -- posted image.
