2000 f150 wiring trouble


Post ReplyPost New Topic
< Prev Topic Next Topic >
cml123
Member - Posts: 7
Member spacespace
Joined: April 04, 2008
Location: Alberta, Canada
Posted: April 04, 2008 at 9:09 PM / IP Logged
Hi, I'm new to wiring.  I have a 2000 f150 and I was wondering what the BLACK/ pink wire is that runs into the ignition cylinder lock.  I was also wondering how to pull a wire out of its connecter such as the horn wire out of the brown 6 pin connecter becasue it seems to be stuck.
KarTuneMan
Platinum - Posts: 7,056
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: December 14, 2004
Location: Isle Of Man
Posted: April 04, 2008 at 9:29 PM / IP Logged

BLACK/ pink is keysence.

cml123
Member - Posts: 7
Member spacespace
Joined: April 04, 2008
Location: Alberta, Canada
Posted: April 04, 2008 at 9:34 PM / IP Logged

thanks, also is there a trick to pulling out that wire from the 6 pin connecter because i cann't seem to pull it out.

techman93
Silver - Posts: 591
Silver spacespace
Joined: October 28, 2006
Location: Pennsylvania, United States
Posted: April 04, 2008 at 10:18 PM / IP Logged
You can always cut the wire and reconnect later. You may have to wire up a momentary push button separately to use horn. The trick to pull it out is it should have a release like on relay harnesses. If you have a small flat precision screwdriver you might be able to push the release just enough to pull it out of harness.
The wire I'm test'n isn't doin' what it's supposed to be doin'... I am so glad I printed that tech sheet, with the wrong info.
Do it right the first time... or I might have to fix it for ya
cml123
Member - Posts: 7
Member spacespace
Joined: April 04, 2008
Location: Alberta, Canada
Posted: April 21, 2008 at 6:29 PM / IP Logged

im wiring up some extra horns to my truck and i am using a relay so i can either use my stock horn at one time or my new horns.  The problem is is that when my switch is on which sends power to the relay, and i press my horn button, nothing happens, but when have my toggle switch off the stock horn blows when the horn button is pressed.  I think I have figured it out to be that there is no power leaving prong 87 which powers my new horns.  Please help.

i am an idiot
Platinum - Posts: 13,693
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: April 21, 2008 at 7:12 PM / IP Logged
If I had to guess, I would say that you have power going to 87A instead of 30.  And you have your stock horn to 30 instead of 87A.  30 is the common terminal, at rest 30 is connected to 87A, when the relay is energized it connects terminal 30 to 87.  Power has to be connected to 30 for your application.
cml123
Member - Posts: 7
Member spacespace
Joined: April 04, 2008
Location: Alberta, Canada
Posted: April 22, 2008 at 6:55 PM / IP Logged
Im trying to wire up my air horns so I can use my horn button for either my stock horn or my air horns.  I have a led toggle switch which receives power from the battery.  From there i have it wired to pin 86.  Ground is wired to pin 85.  Pin 87 goes to solenoid for air horns which is also grounded.  I cut my horn wire from stock horn and have horn button to pin 30 and other side of wire which runs to stock horns to pin 87a.  The problem is is that when the led toggle switch is off the stock horn works which is a good thing but when the toggle switch is on the air horns don't sound.  I hit my horn button but nothing happens.  I did find out though that if i connect pin 86 which receives power from  toggle switch and pin 87 which goes to solenoid the air horns sound off continually.   Please help and thank you.
cml123
Member - Posts: 7
Member spacespace
Joined: April 04, 2008
Location: Alberta, Canada
Posted: April 22, 2008 at 9:21 PM / IP Logged
Anyone have any ideas?  Have i wired it wrong?
cml123
Member - Posts: 7
Member spacespace
Joined: April 04, 2008
Location: Alberta, Canada
Posted: April 22, 2008 at 11:08 PM / IP Logged
do you guys think it is a problem with the relay or wire i have running to the solenoid because when i switched around the wires between 87a and 87 the stock horn now went when the toggle switch was on and nothing happened when the toggle switch was in the off position.
chriswallace187
Gold - Posts: 1,661
Gold spacespace
Joined: March 11, 2002
Location: Pennsylvania, United States
Posted: April 23, 2008 at 12:45 PM / IP Logged
The problem here is that your solenoid is going directly to the horn when the toggle switch is pushed, and your horn switch isn't designed for that much current.

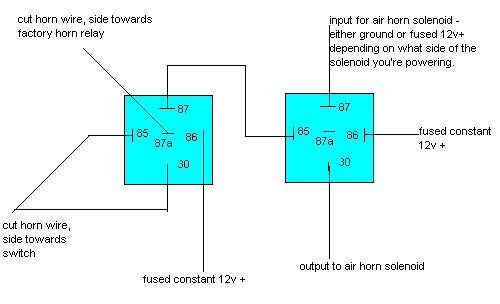

You want to do it with 2 relays, wired like the following diagram.
2000 f150 wiring trouble -- posted image.
EDIT: Ok, I screwed that up slightly. 85 on the LEFT relay should go to your toggle switch; the other side of your toggle switch should go to the horn switch wire.
C Renner's Auto Electronix
My service is cheap, quick, and good - pick any two
