Pit Stop Feature messed up

Home / the12volt's Install Bay / Car Security and Convenience / Pit Stop Feature messed up (

Topic Closed)

Welcome Guest :)

Members

Next Page > < Prev Topic Next Topic >

sony5689

Member - Posts: 15

Joined: February 10, 2003

Location: United States

Posted: March 05, 2003 at 10:41 AM / IP Logged

I have a 94 Shadow and a CG 850i3. I recently tried out the pit stop feature that allows the ignition to be turned off with the car still running. When I removed the key after engaging the system, the started began to crank again. Any ideas on why this happened?

jrilla

Gold - Posts: 1,498

This member has made a donation to the12volt.com. Click here for more info.

Joined: November 19, 2002

Location: North Dakota, United States

Posted: March 05, 2003 at 10:53 AM / IP Logged

do you have an anti-grind relay or starter kill relay installed?

J Rilla

Owner/Installer

floaterr

Silver - Posts: 383

Joined: December 07, 2002

Location: United States

Posted: March 05, 2003 at 11:15 AM / IP Logged

Did it just start or was this the first time you tried the pitstop?

Does remote start work normally?

sony5689

Member - Posts: 15

Joined: February 10, 2003

Location: United States

Posted: March 05, 2003 at 4:01 PM / IP Logged

I have a starter kill relay installed. The remote start works normally. When I tried this however, something was malfunctioning w/ it and it would kill after 2 seconds of being started. That has gone away now but I've been a bit weary to try the pit stop again untill I found out it something was wrong

jrilla

Gold - Posts: 1,498

Joined: November 19, 2002

Location: North Dakota, United States

Posted: March 05, 2003 at 4:19 PM / IP Logged

try unplugging the starter kill relay from its harness and then test it. The car wont start by key then,. but it will remote start. This is just a test. If the problem goes away then your relay harness may be bad. Is it a 3 wire or 5 wire harness and if it is 5 wires, did you use a diode?

J Rilla

Owner/Installer

sony5689

Member - Posts: 15

Joined: February 10, 2003

Location: United States

Posted: March 05, 2003 at 5:23 PM / IP Logged

It was the relay that came in the package

sony5689

Member - Posts: 15

Joined: February 10, 2003

Location: United States

Posted: March 05, 2003 at 5:23 PM / IP Logged

Sorry, 5 wire

jrilla

Gold - Posts: 1,498

Joined: November 19, 2002

Location: North Dakota, United States

Posted: March 05, 2003 at 6:31 PM / IP Logged

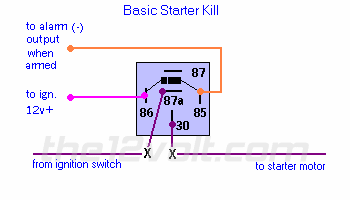

so did you set it up like this:

Pit Stop Feature messed up -- posted image.

J Rilla

Owner/Installer

sony5689

Member - Posts: 15

Joined: February 10, 2003

Location: United States

Posted: March 05, 2003 at 8:08 PM / IP Logged

Not sure..... all I know is that I used the supplied, pre-wired relay that came with the alarm

jrilla

Gold - Posts: 1,498

Joined: November 19, 2002

Location: North Dakota, United States

Posted: March 06, 2003 at 10:45 AM / IP Logged

Have you tried unplugging the relay from the harness, then remote starting it and then put the key in hit the brake and then try to enter pit stop mode?

Or you could start the car with the key then pull the relay and try it.

If this solves the problem then you need a diode between pin 85 and 86 on that harness.

J Rilla

Owner/Installer
