Handy Door Locks Tip ’07 Up GM Trucks


Post ReplyPost New Topic
< Prev Topic Next Topic >
chriswallace187
Gold - Posts: 1,661
Gold spacespace
Joined: March 11, 2002
Location: Pennsylvania, United States
Posted: January 17, 2009 at 5:43 PM / IP Logged
I looked at an '07 Silverado today with the intention of finding a way to solder directly into the driver's door module instead of having to order a data interface. It turns out that on this truck, which was a fairly base model(power locks and windows, rubber floor, regular cab), the lock switch is a conventional type with wires which run in the cab to the BCM. I decided to take a pic and post since most of the tech info I've seen doesn't mention these wires at all and says that the trucks all require a data interface to do locks. I'm going to assume there are a few other Silverados/Sierras with this type of switch as well.

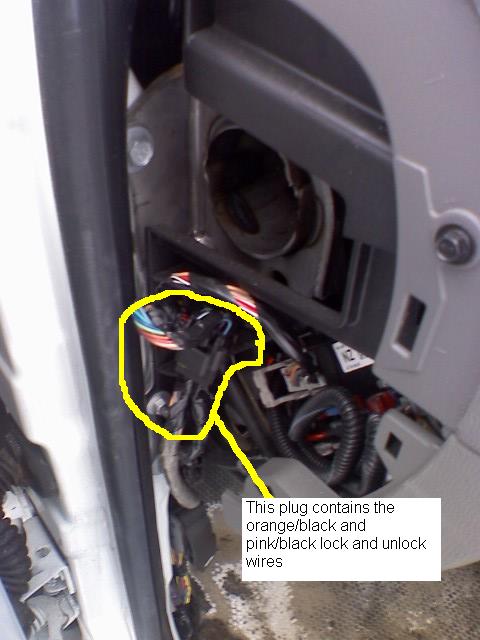

Pink/black and ORANGE / black are the wire colors I found for lock and unlock. Below is a pic of the driver's side fusebox, with the connector highlighted.
Handy Door Locks Tip ’07 Up GM Trucks -- posted image.
C Renner's Auto Electronix
My service is cheap, quick, and good - pick any two
jrod83
Copper - Posts: 81
Copper spacespace
Joined: October 29, 2007
Location: Texas, United States
Posted: January 17, 2009 at 6:19 PM / IP Logged
haha thanks man....did this vehicle even have a little key fob for keyless? also guys for the new chevys i like to use the 1701g module...works like a charm. all you have to do is run constant power, ground and parking lights....everything else is on the module...
MECP Certified
I am the loudest and proudest member of the Fighting Aggies Class of '11 WHOOP!
SAW 'EM OFF!
Mike M2
Platinum - Posts: 2,652
Platinum spacespace
Joined: June 29, 2005
Location: United States
Posted: January 17, 2009 at 7:14 PM / IP Logged

Thanks, but Directed and Avox list lock wires in the fusebox. All 2 door Silverado's are this way...

Mike M2
Tech Manager
CS Dealer Services
chriswallace187
Gold - Posts: 1,661
Gold spacespace
Joined: March 11, 2002
Location: Pennsylvania, United States
Posted: January 18, 2009 at 3:05 AM / IP Logged
Really...that shows how long it's been since I've played with Directed. I did check Audiovox before posting but I think they only had it listed on the '08.
You're saying all the regular cab Silverados? Or extended cab too but not crew cab?
C Renner's Auto Electronix
My service is cheap, quick, and good - pick any two
Mike M2
Platinum - Posts: 2,652
Platinum spacespace
Joined: June 29, 2005
Location: United States
Posted: January 18, 2009 at 9:03 AM / IP Logged

I think the deal is anything 2 door is in the fuse box, anything 4 door is data. I think the extended cab is really just a single cab as far as doors that lock, isn't it? This is the way the old bodystyle Tundra was too...

Mike M2
Tech Manager
CS Dealer Services
jim hunter
Silver - Posts: 351
Silver spacespace
Joined: March 23, 2006
Location: United States
Posted: October 20, 2009 at 10:11 AM / IP Logged
ive found these wires on crew cabs as well, only trucks i have not seen these wires on was a high end unit equipped with factory remote start,i do mostly dealer work& alarms are not real common here anymore so i mainly do remote starts, so i rarely get a vehicle that has factory start, seems these wires are present in alot of the less than loaded trucks
el ranchero
Copper - Posts: 92
Copper spacespace
Joined: October 04, 2008
Location: Illinois, United States
Posted: October 21, 2009 at 8:26 PM / IP Logged
on 09 this wires will lock/unlock all except driver door, there is a wire there too that need to be hooked up to unlock the driver door along with the rest, this is on the crew cab 09 h2500 p/u
rocker
jim hunter
Silver - Posts: 351
Silver spacespace
Joined: March 23, 2006
Location: United States
Posted: October 22, 2009 at 7:12 AM / IP Logged
in the grey plug plugged in to the board next to this harness is a light blue wire(-) that unlocks just the drivers door, on all the 1500's i have seen the pink/blk & org/blk lock &unlock all doors, but if these wires are present lt blue dr door only has been there too so i hook up 2 step unlock
