wiring motor with cruise switch


Post ReplyPost New Topic
< Prev Topic Next Topic >
turbro
Member - Posts: 1
Member spacespace
Joined: March 25, 2009
Posted: March 25, 2009 at 3:09 AM / IP Logged
So I have a 1991 toyota mr2 and currently have a simple 2 wire gear head motor that runs forward and reverse via a DPDT switch. I would like to ditch the DPDT switch and use the factory cruise control switch to control the motor. I'm sure there are more than one way to do this, I prefer the simplest and least amount of parts. Unfortunately I'm not too familiar with DPDT relays and if they operate similarly to the switches. Diagrams would help greatly
thank you in advance
btw this is to activate the gearhead motor for the exhaust cut outs

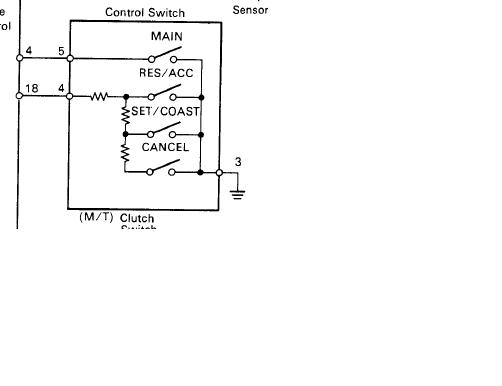

wiring motor with cruise switch -- posted image.
Big Dog
Gold - Posts: 1,265
Gold spaceThis member consistently provides reliable informationspace
Joined: May 02, 2002
Location: Quebec, Canada
Posted: March 25, 2009 at 10:48 AM / IP Logged

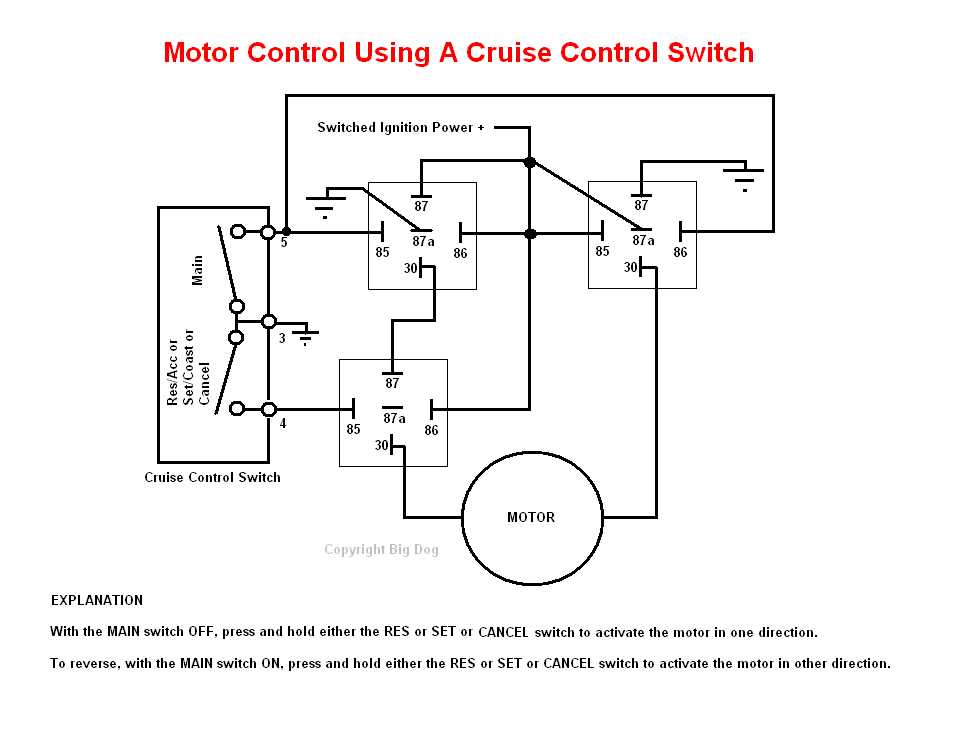

Here's what I came up with.

wiring motor with cruise switch -- posted image.
