will this 12v circuit work?

Home / the12volt's Install Bay / Lights, Neon, LEDs, HIDs / will this 12v circuit work? (

Topic Closed)

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

boot32

Member - Posts: 2

Joined: June 23, 2010

Location: Alberta, Canada

Posted: June 23, 2010 at 3:42 PM / IP Logged

I am wirering these L.E.D's into a 12V motorcycle battery, the L.E.D's are the ones built into bolts, and the description of item is

"The LED consists of 30cm(~12") 2 wires cable, Professional pick resistors for 12VDC power system for this LED, 3 x heat shrink covering the LED leads(2), a large one covering the leads, one resistor, and one Chrome Holder

This LED is designed for Plug & Play for all kind of 12VDC power system. No matter you wire them in your car, your motorcycle, your boat, and in your house. You will get them plug & play with the 12VDC power!"

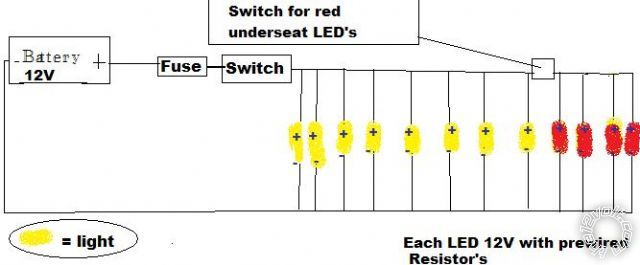

Here is a picture I quickly made on MS paint, I just want to make sure this will work, and if it will what fuse should I buy? Thanks! will this 12v circuit work? -- posted image.

Back to Top

KPierson

Platinum - Posts: 3,527

This member consistently provides reliable information

Joined: April 14, 2005

Location: Ohio, United States

Posted: June 23, 2010 at 4:50 PM / IP Logged

It will work but you won't be able to turn on the red lights if the yellow lights are not on.

Kevin Pierson

Back to Top

boot32

Member - Posts: 2

Joined: June 23, 2010

Location: Alberta, Canada

Posted: June 23, 2010 at 11:52 PM / IP Logged

Ok that sounds perfect!! thanks!

Back to Top

morebass4u

Member - Posts: 5

Joined: June 28, 2010

Location: Oklahoma, United States

Posted: June 28, 2010 at 2:13 PM / IP Logged

It will work but if you connect the input wire of the red LEDs to the back side of the fuse before the switch you currently have, you can operate the red LEDs independently. You will have a switch for yellow and a switch for the red to run both, neither, or red or yellow independently.

If you are going to make a scene, be seen and heard!

dr12volt

Back to Top

oldspark

Gold - Posts: 4,913

Joined: November 03, 2008

Location: Australia

Posted: June 28, 2010 at 8:22 PM / IP Logged

And why not have a few in series to save resistors, work, & power?

Back to Top

morebass4u

Member - Posts: 5

Joined: June 28, 2010

Location: Oklahoma, United States

Posted: June 29, 2010 at 8:15 AM / IP Logged

I am guessing that from what the description says, each LED has its own resistor. If you were going to do it with just loose LEDs, then yes, you could save some time and series the LEDs with a single resistor.

If you are going to make a scene, be seen and heard!

dr12volt

Back to Top

Sorry, you can NOT post a reply.
This topic is closed.

Printable version

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot delete your posts in this forum
You cannot edit your posts in this forum
You cannot create polls in this forum
You cannot vote in polls in this forum

Search the12volt.com

Follow the12volt.com

Disclaimer: *All information on this site ( the12volt.com ) is provided "as is" without any warranty of any kind, either expressed or implied, including but not limited to fitness for a particular use. Any user assumes the entire risk as to the accuracy and use of this information. Please verify all wire colors and diagrams before applying any information.

will this 12v circuit work?

Sorry, you can NOT post a reply.This topic is closed.

Sorry, you can NOT post a reply.
This topic is closed.
